Jeep
>>
1990
>>
Wrangler L6-258 4.2L VIN T 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Part 2 of 2
Part 2 of 2

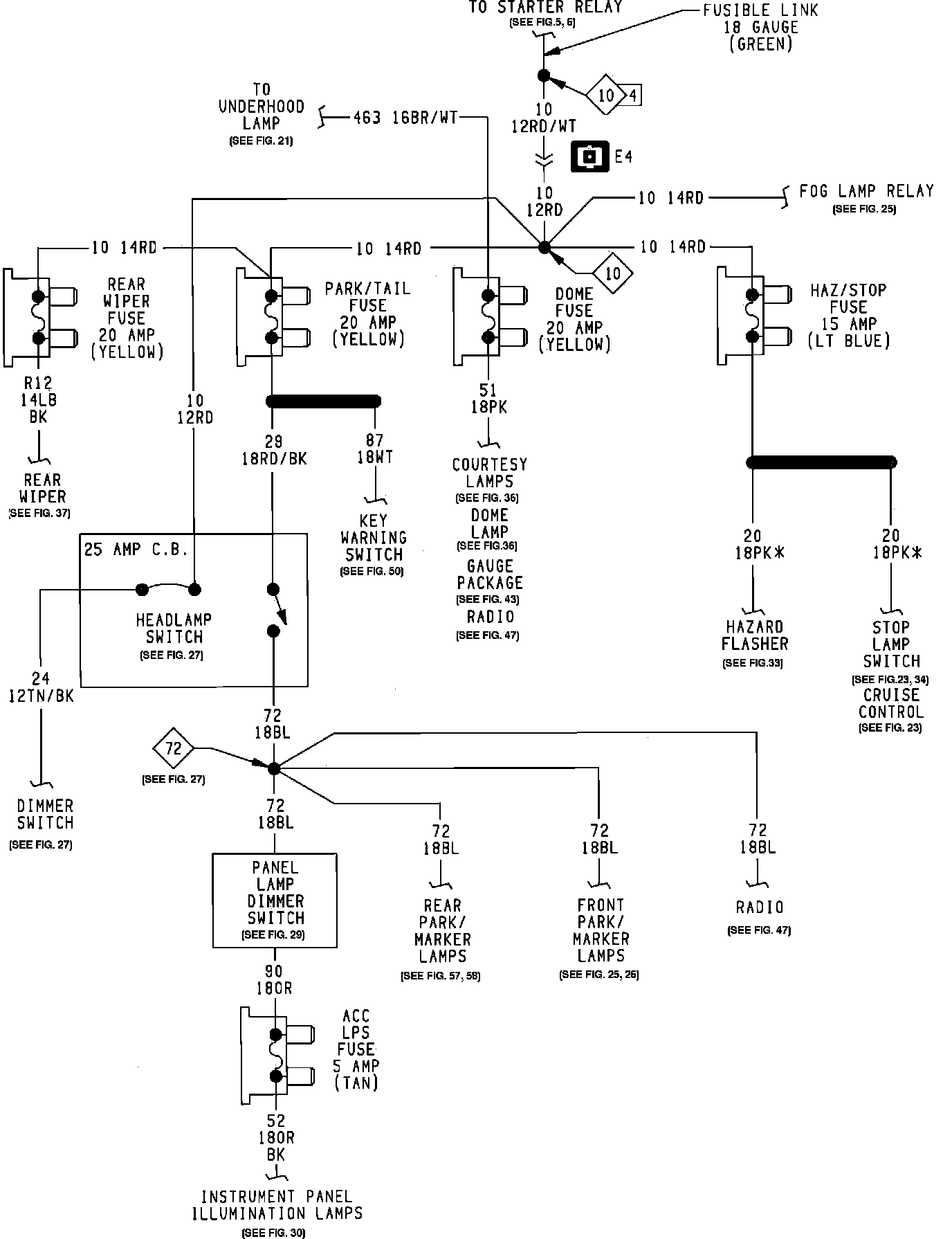

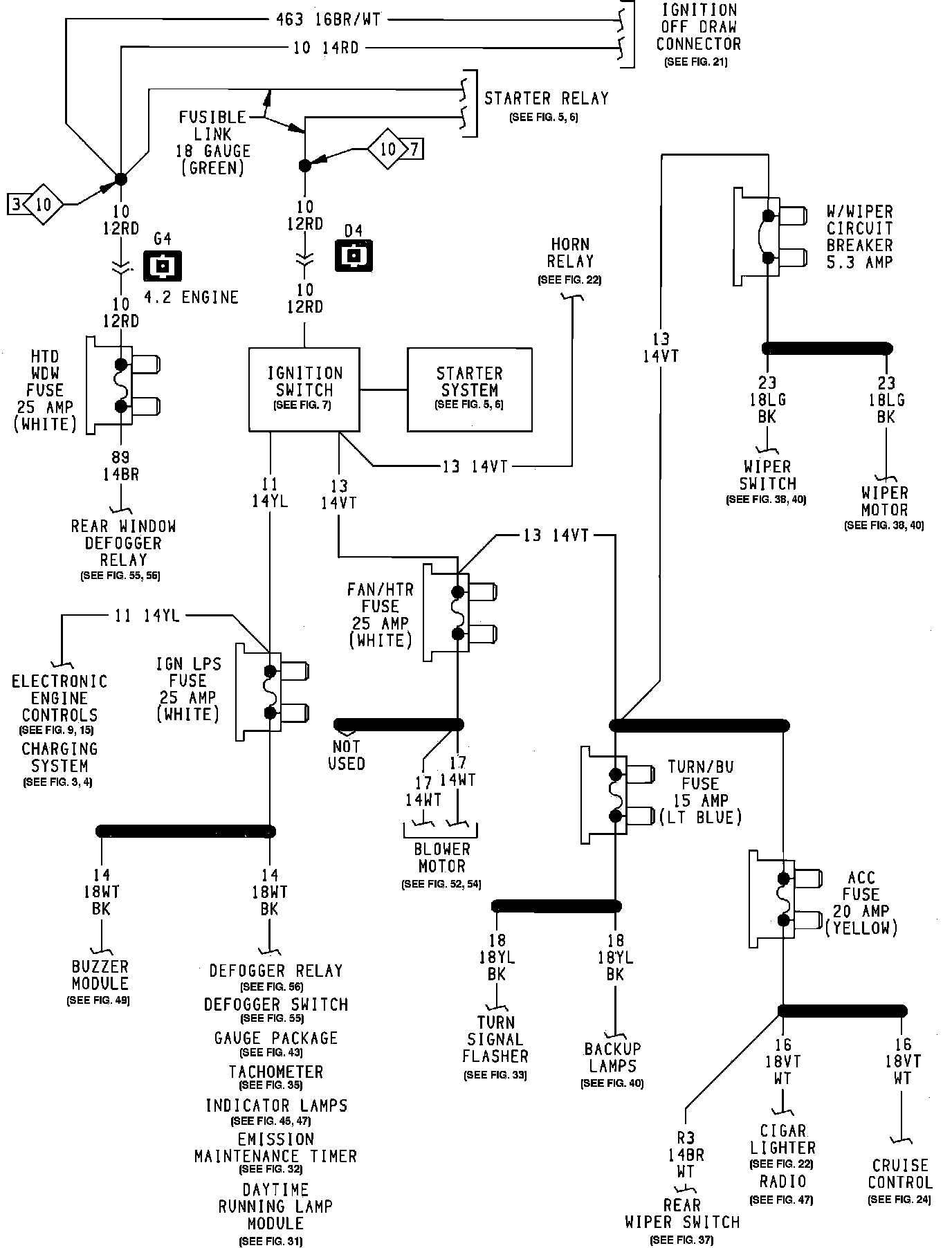

Fuse Panel Details:
Fuse Panel Details:
