Jeep
>>
1990
>>
Wrangler L6-258 4.2L VIN T 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>

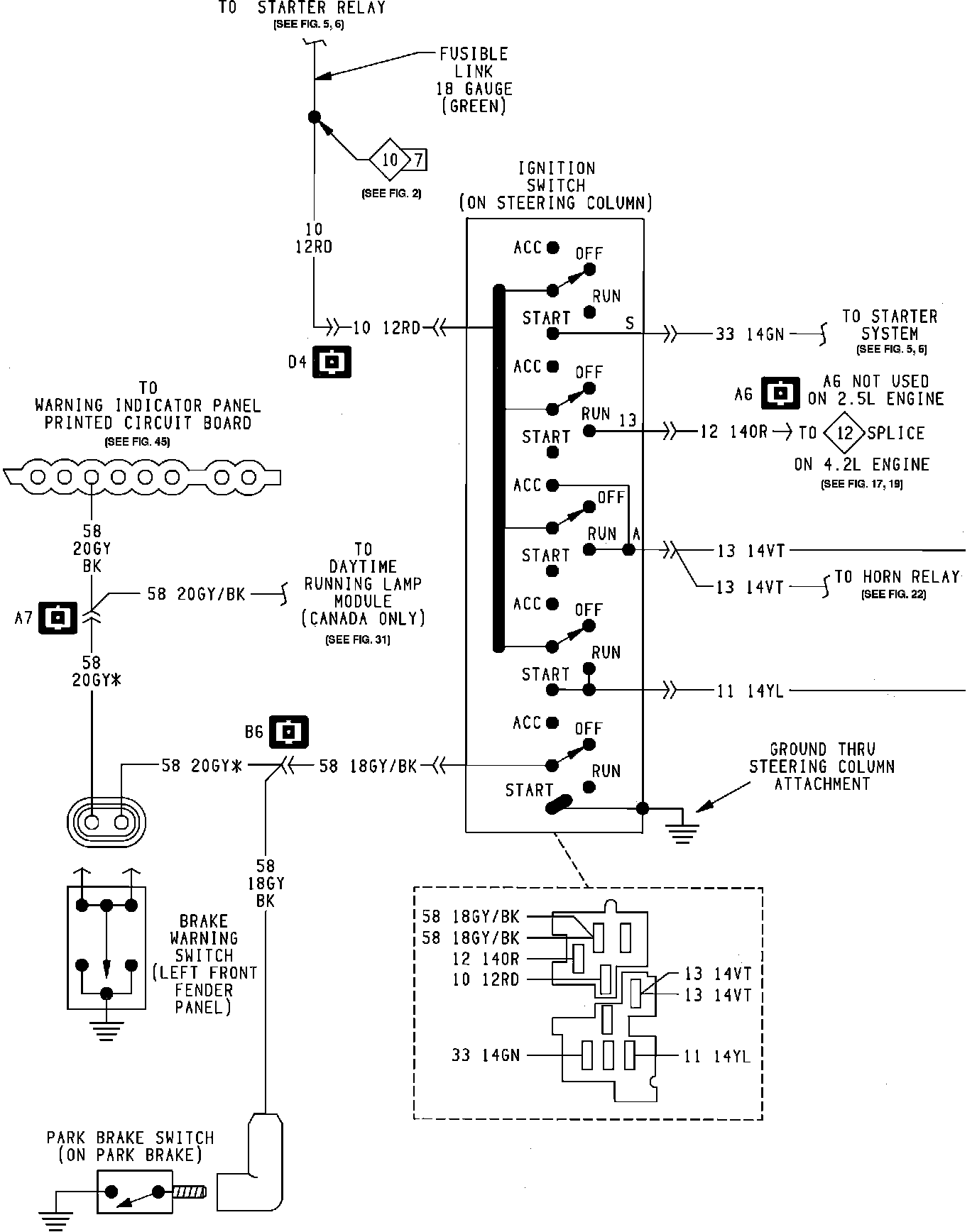

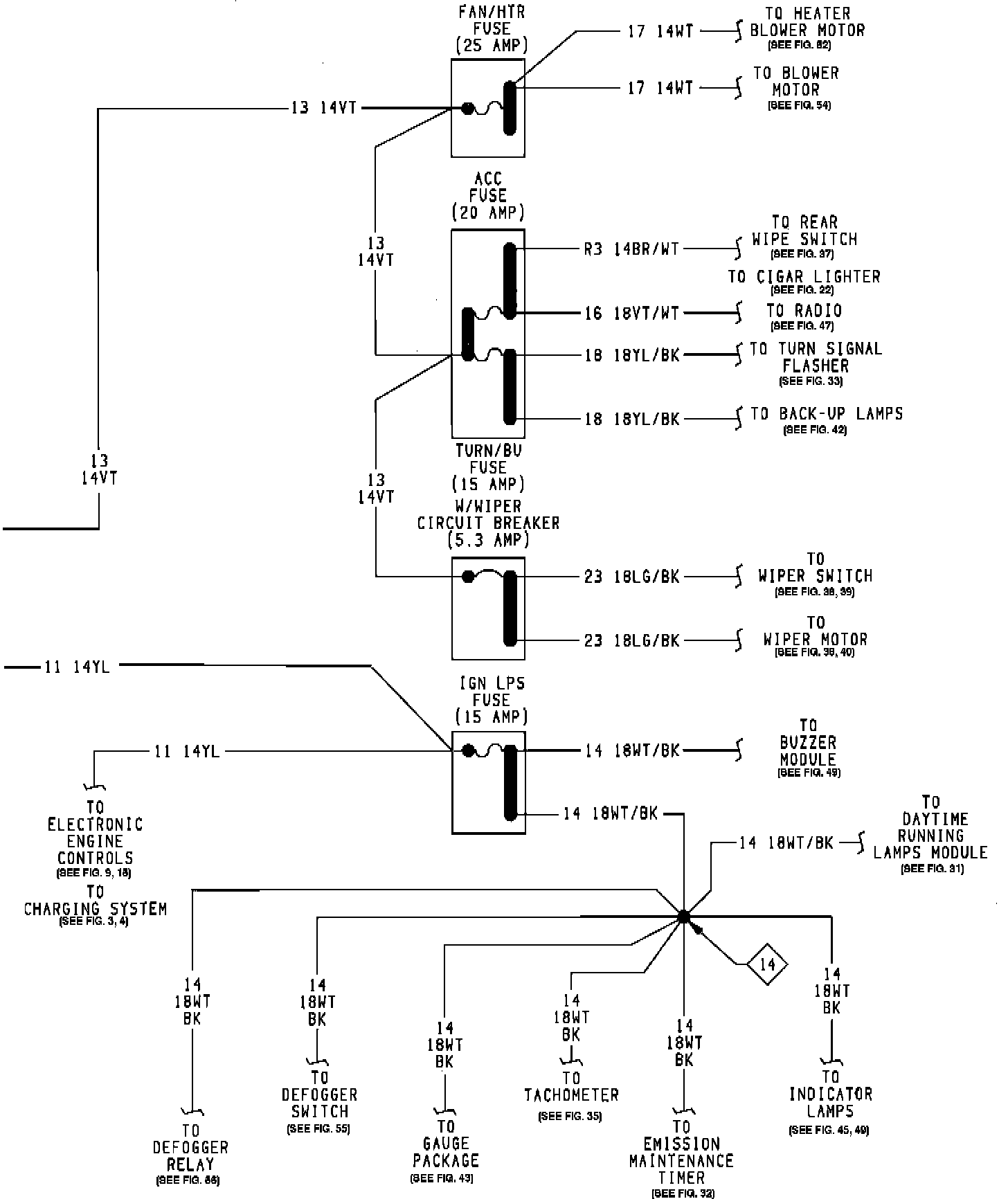

Ignition Switch/System
Ignition Switch/System
Ignition Switch:
Ignition Switch:
