Clearance and Design Specifications


Front

Model 30 Axle Specifications:

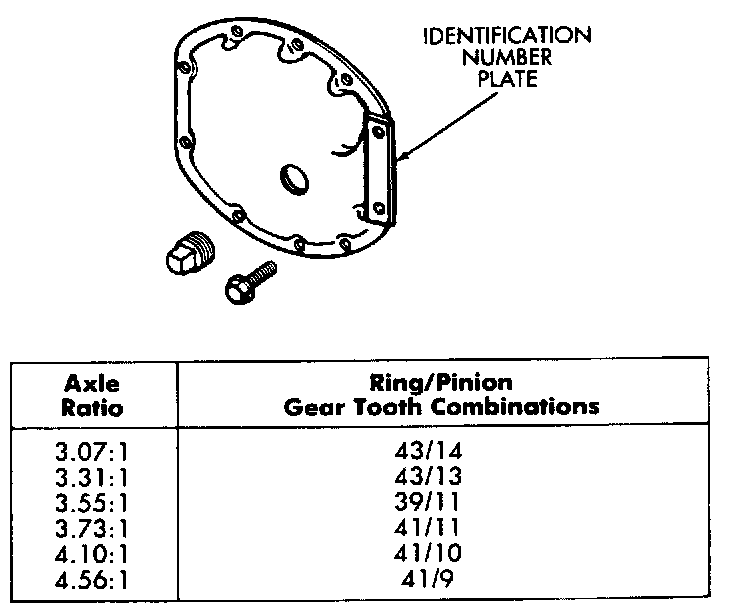

Model 30 Axle ID Plate Location & Chart:

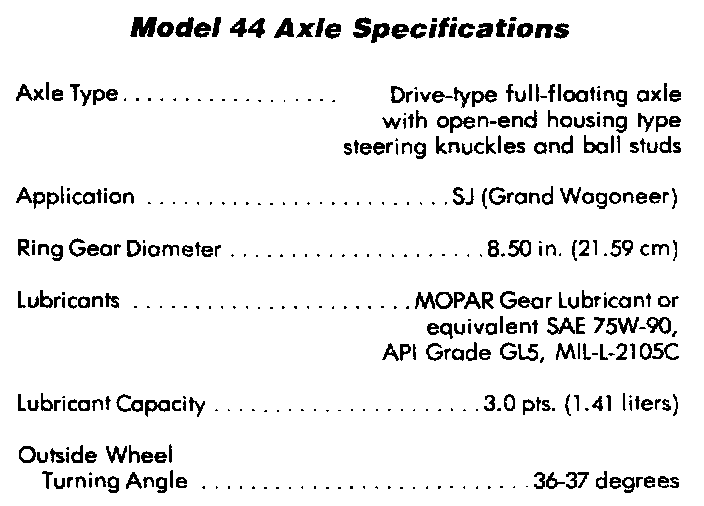

Model 44 Axle Specifications:




Model 44 Axle Code Location & Chart:





Rear

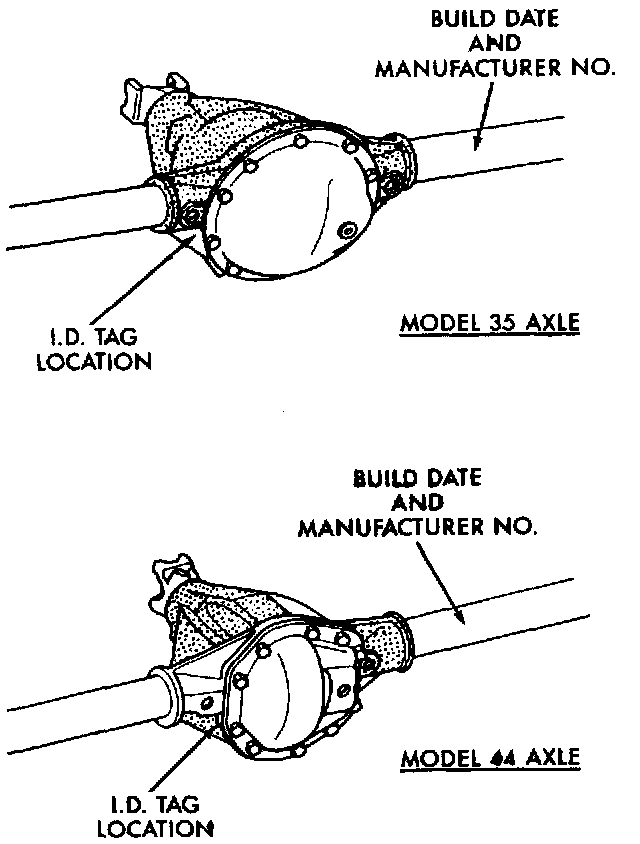

Rear Axle Identification:

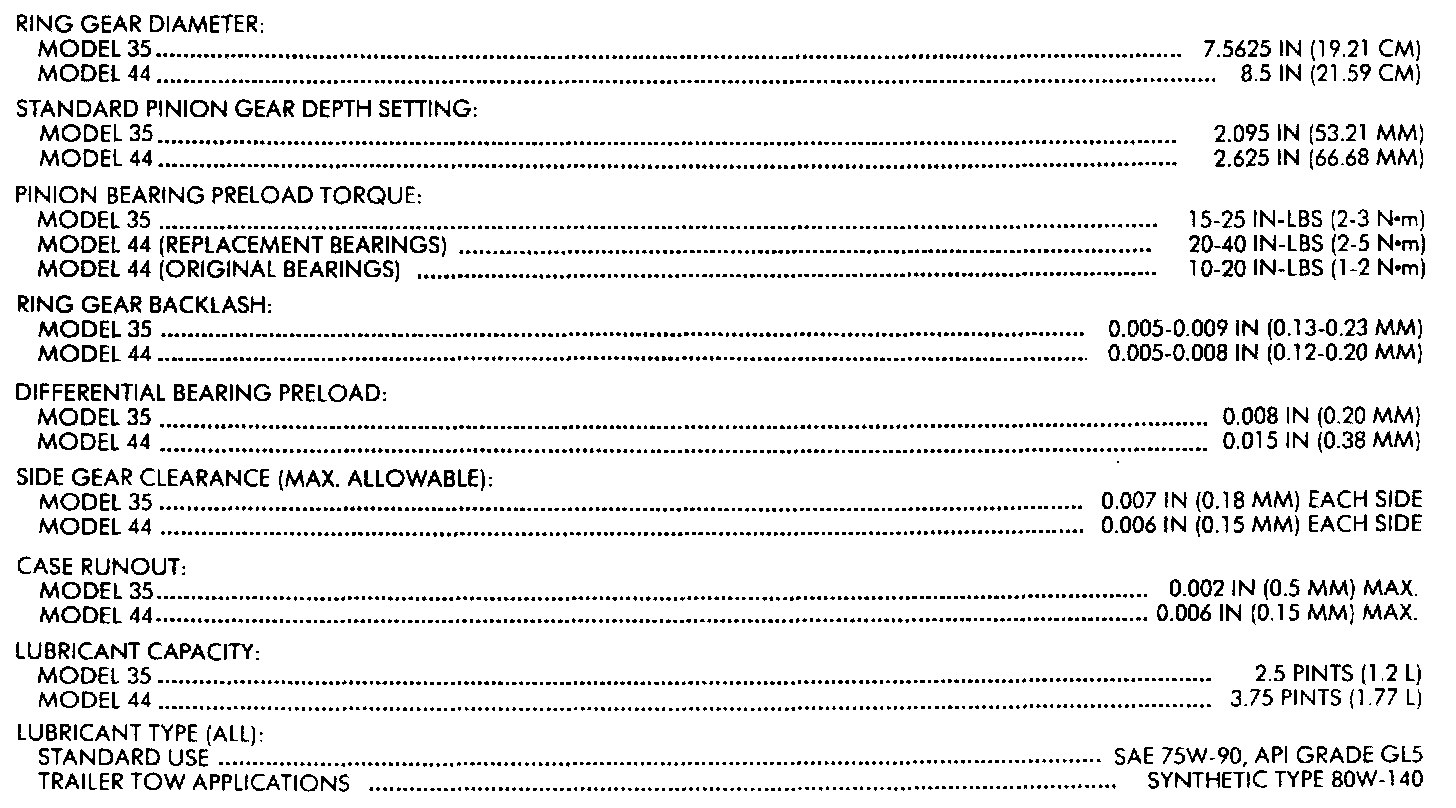

General Specifications:
