Clearance and Design Specifications

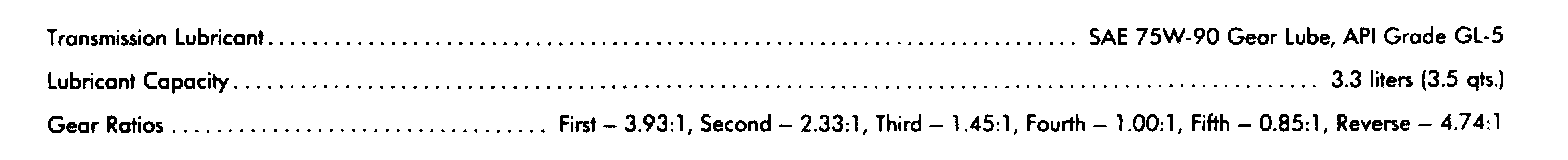

AX 4 & 5, Gear Ratio And Lubrication Information:

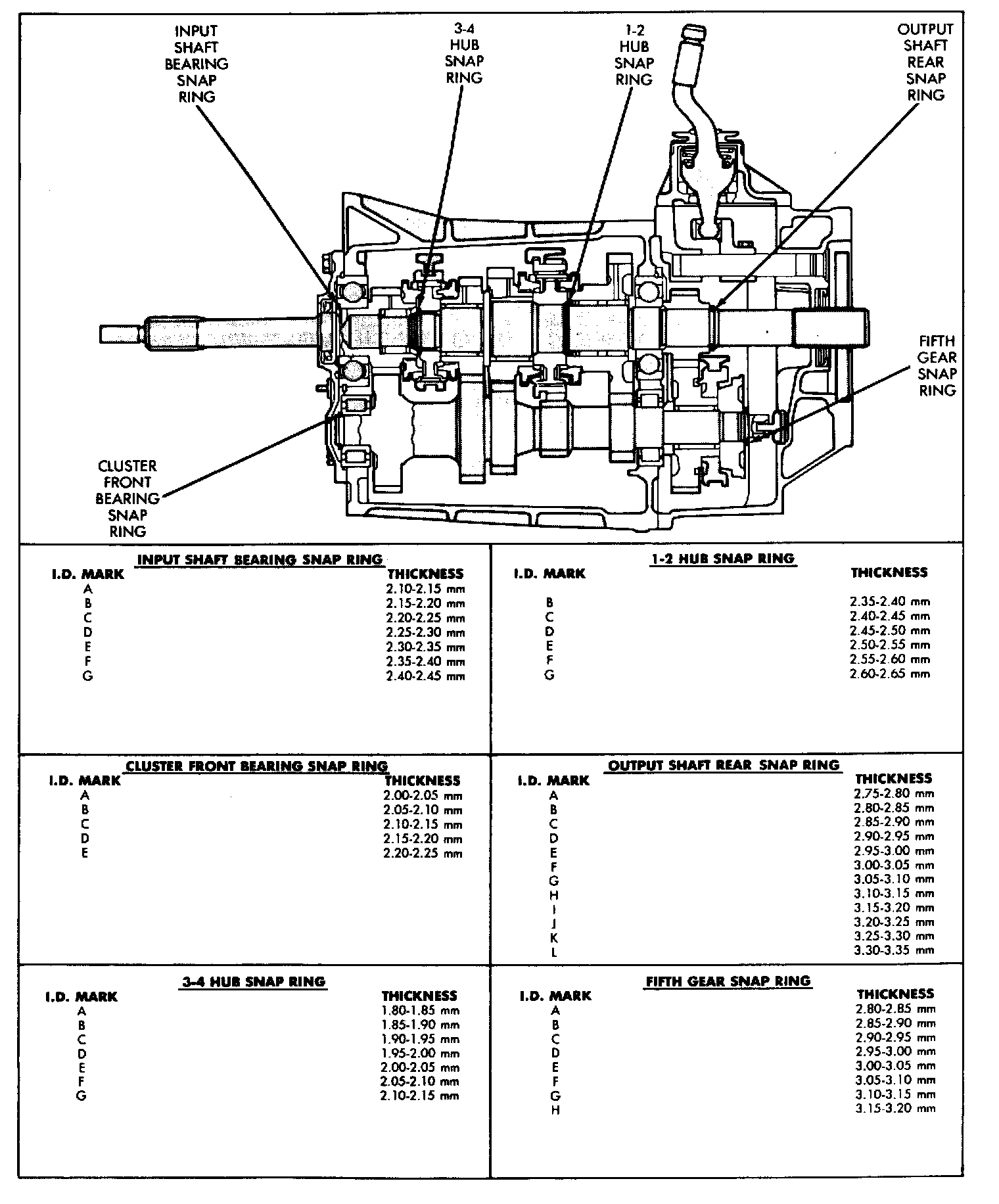

AX 15, Selective Snap Ring Chart:





Thrust Washer Specifications Chart:
