Home >> Jeep >> 1992 >> Cherokee 2WD L4-150 2.5L VIN P MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

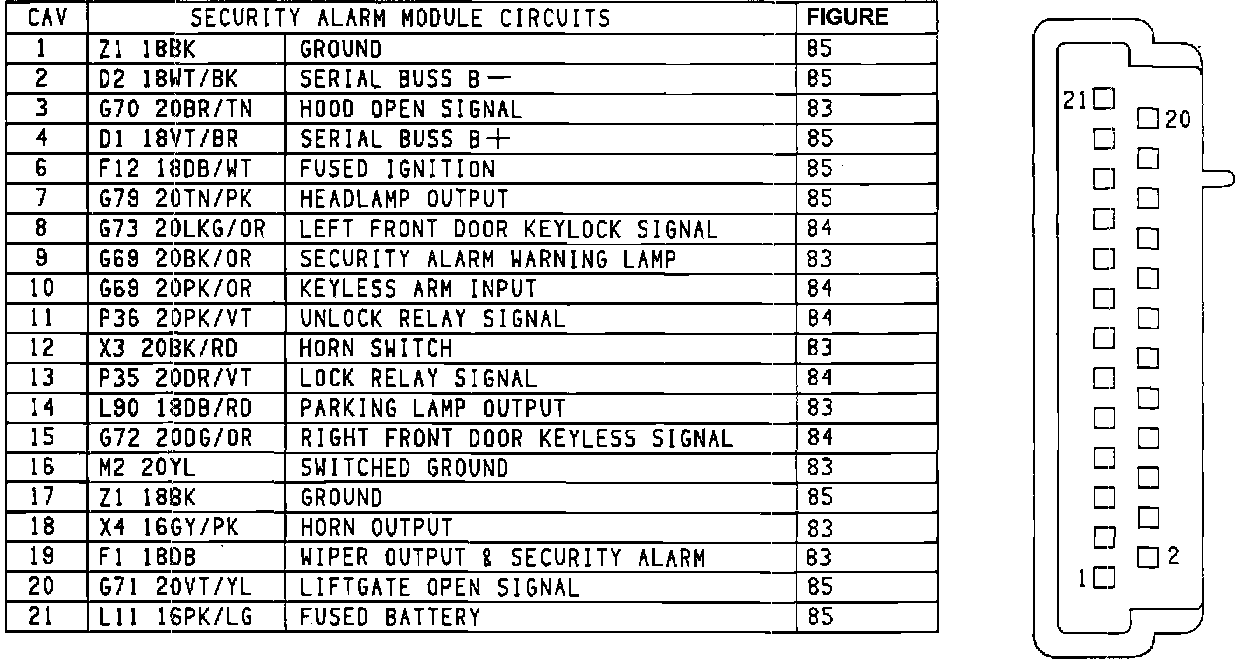

Security Alarm Module:
