Control Module, A/T
Control Module, A/T

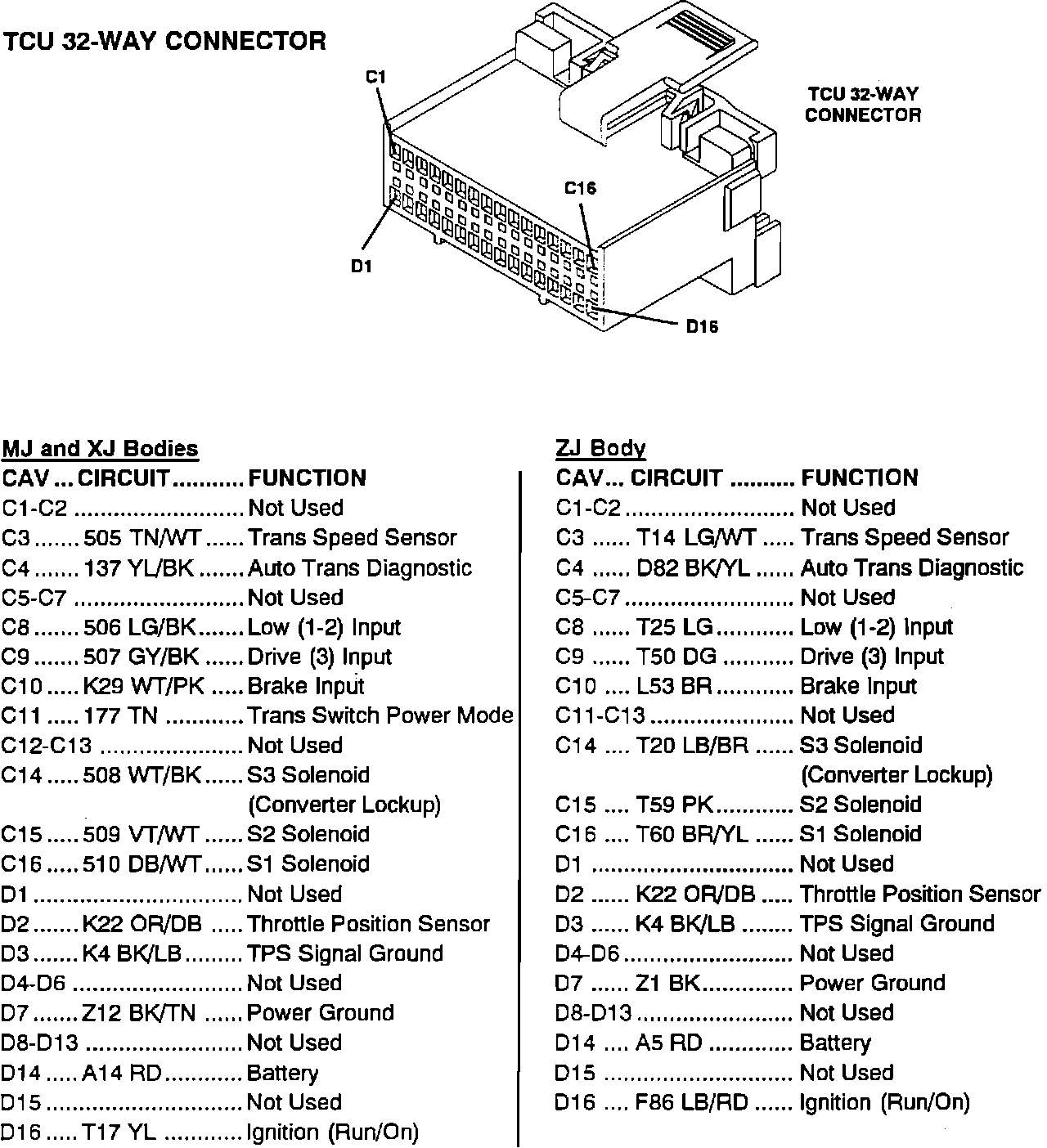

Transmission Control Unit Connector:
Transmission Control Unit Connector Pinout ID:
