Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1992
>>
Comanche 2WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Light Switch
Brake Light Switch

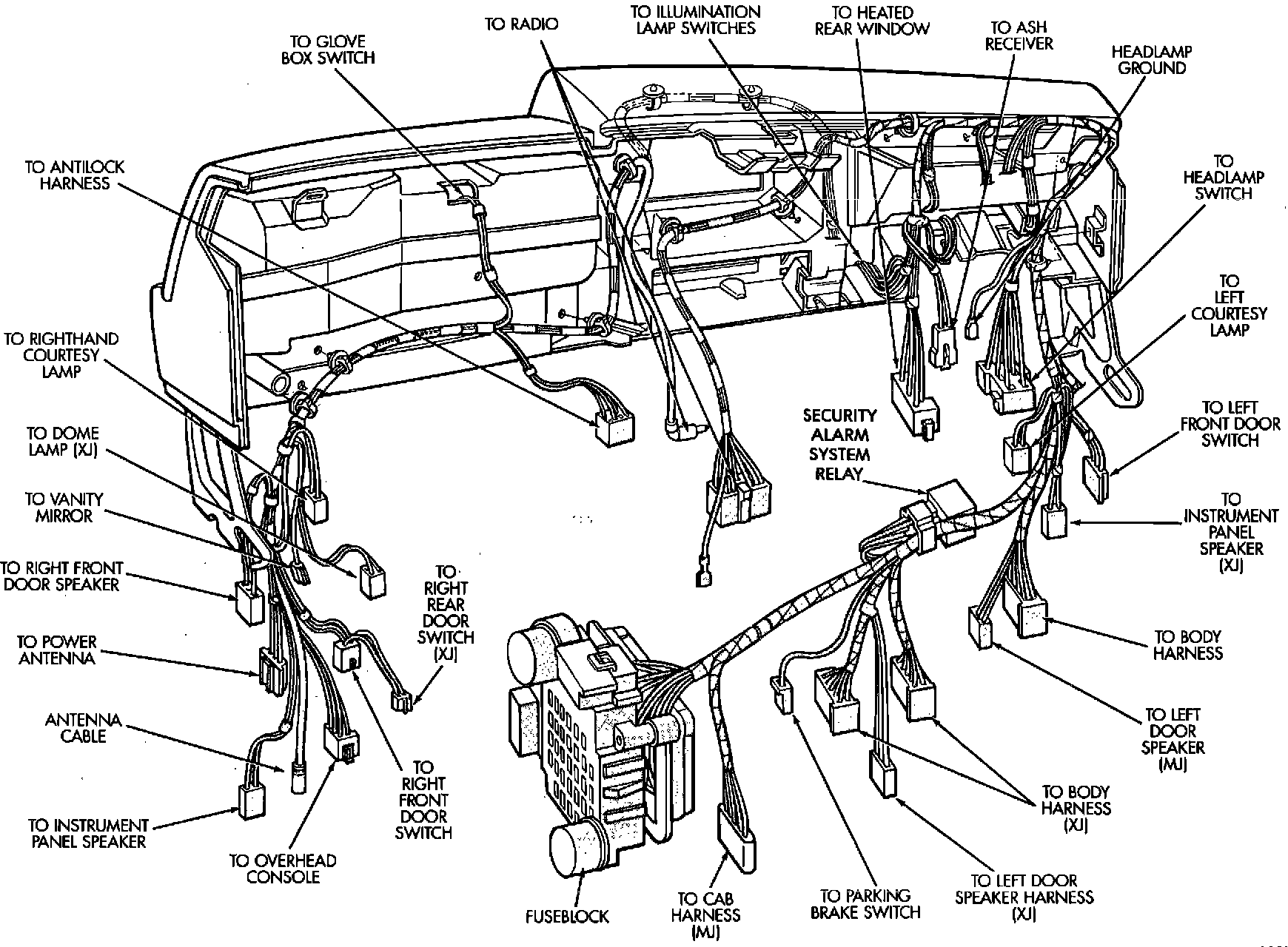

Instrument Panel Wiring -- Part 1:

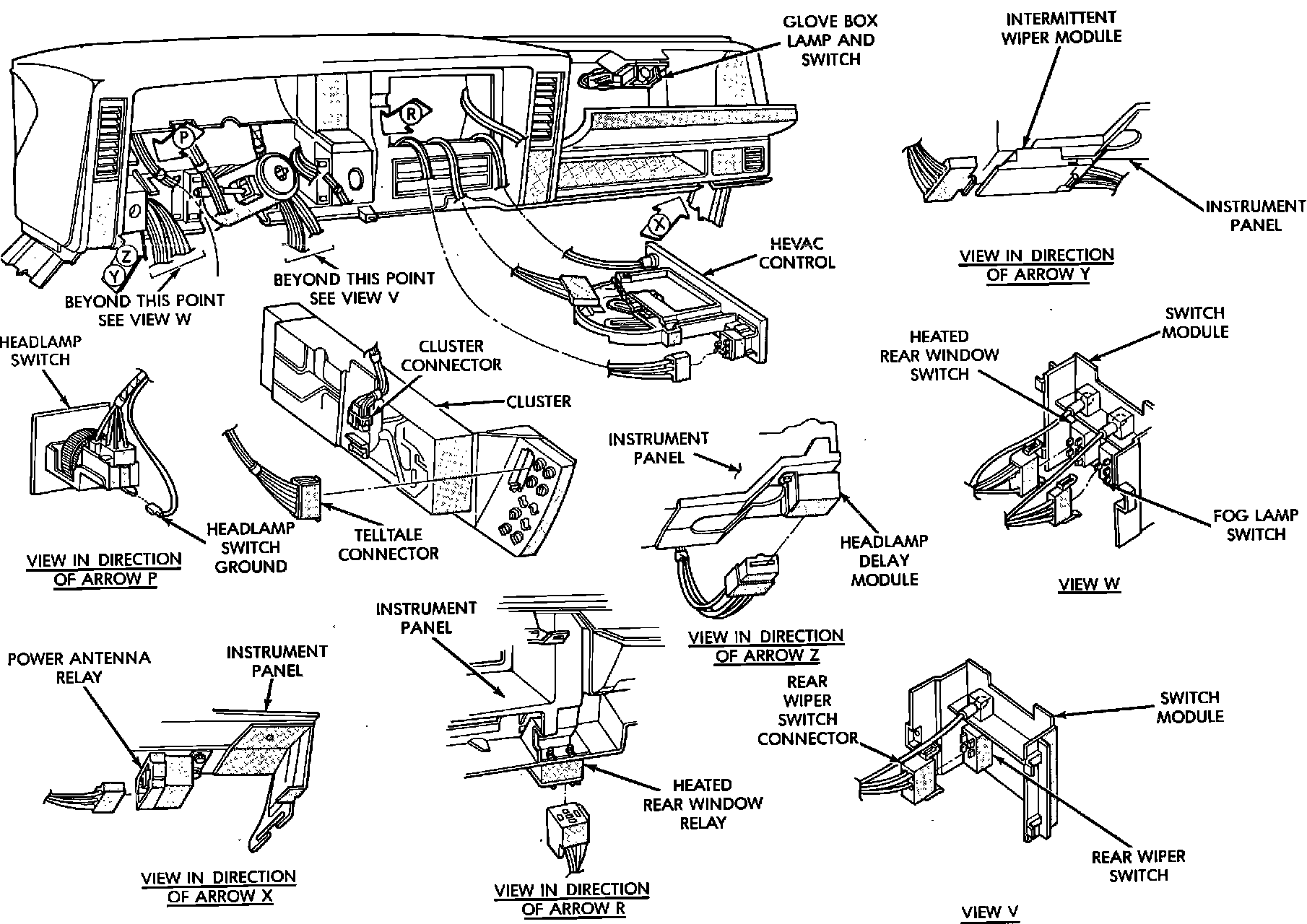

Instrument Panel Wiring -- Part 2:

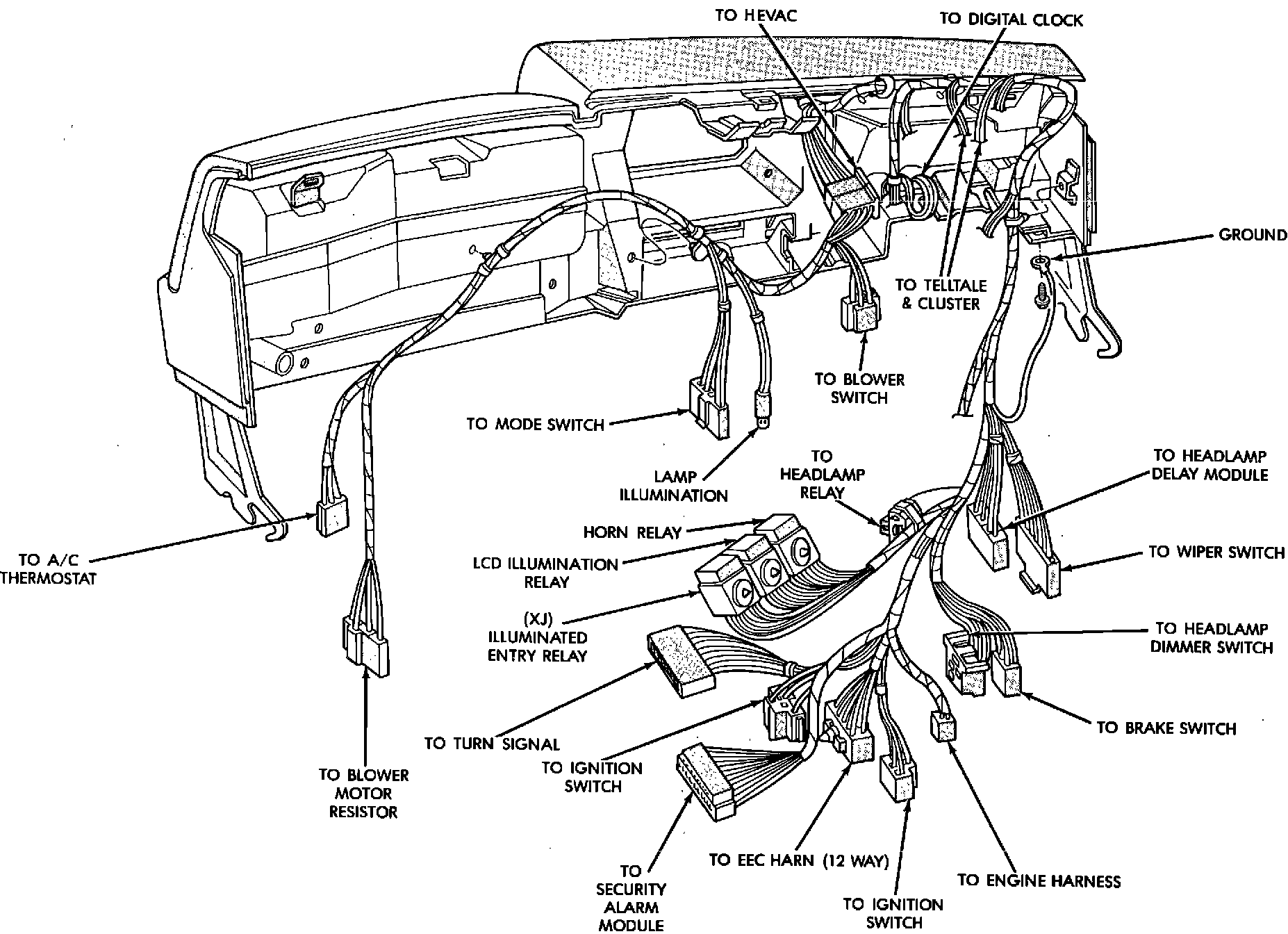

Instrument Panel Wiring -- Part 3:

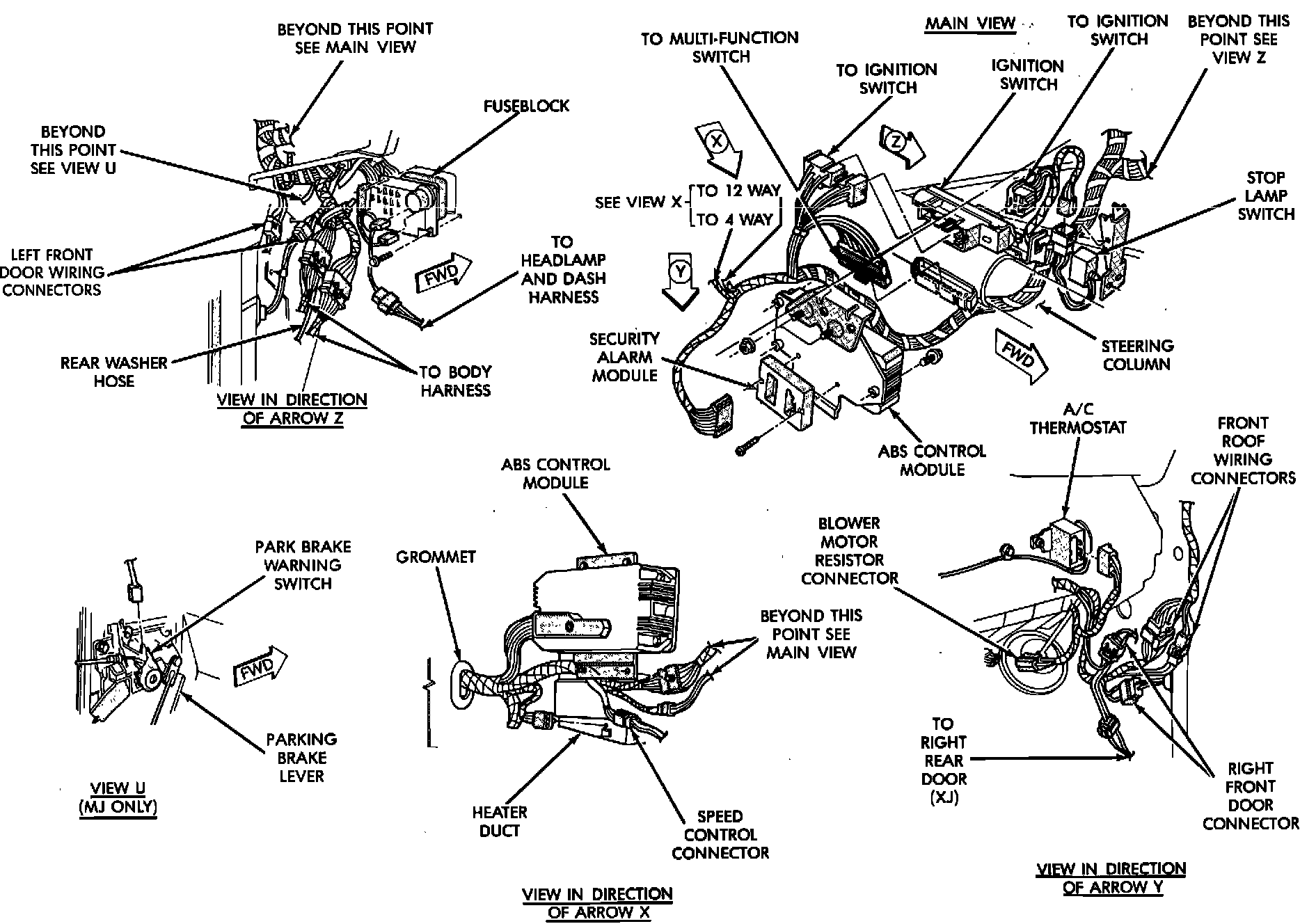

Instrument Panel Wiring -- Part 4:
