Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1992
>>
Wrangler L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
Connector Locations

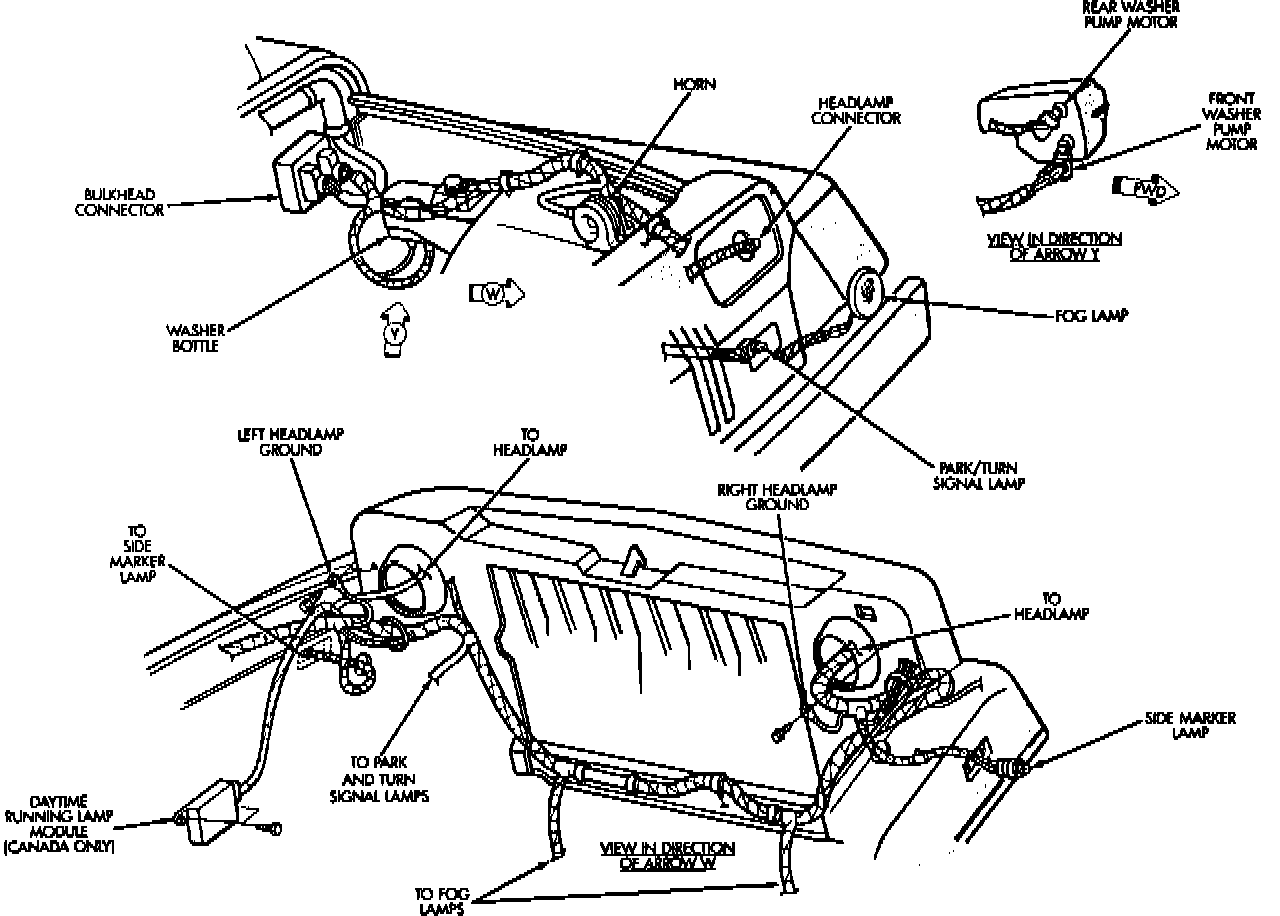

Engine Compartment Components:
Front End Components:
Rear LH Side Of Engine Compartment
