Cherokee 2WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Mirror Switch
Power Mirror Switch

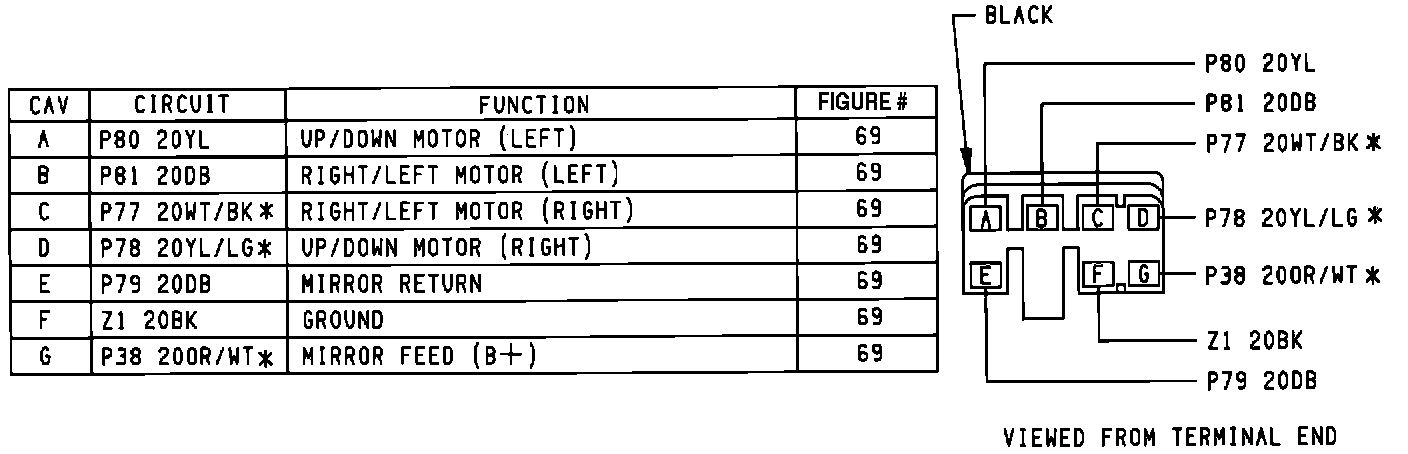

Power Mirror Switch Functions:
Power Mirror Connector:
