Power Distribution Relay
>>
Locations

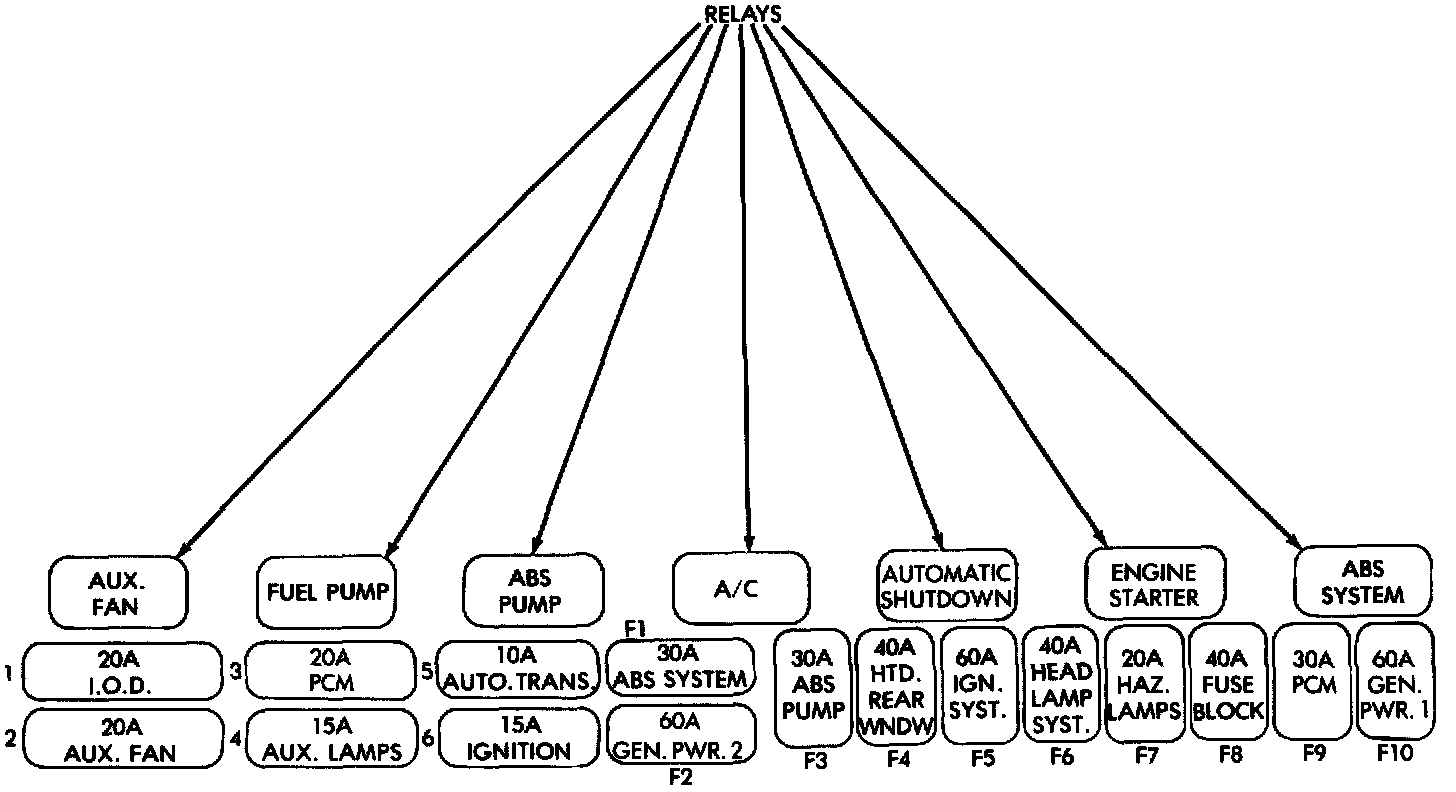

Power Distribution Relay: Locations
Power Distribution Center:
