Grand Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Switch
>>
Testing and Inspection
Cruise Control Switch: Testing and Inspection

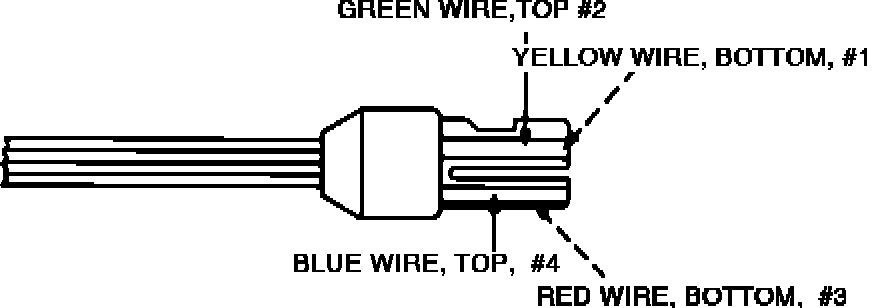

Fig. 10 Control Switch Continuity Test:
Switch Position
Continuity Between
OFF
PINS 1 & 4
ON
PINS (1 & 4), (1 & 2), (2 & 4)
ON & SET
PINS 1 & 2
ON & RESUME
PINS 1 & 3
