Removal

1. Disconnect the negative cable from the battery.
2. Remove ash tray.

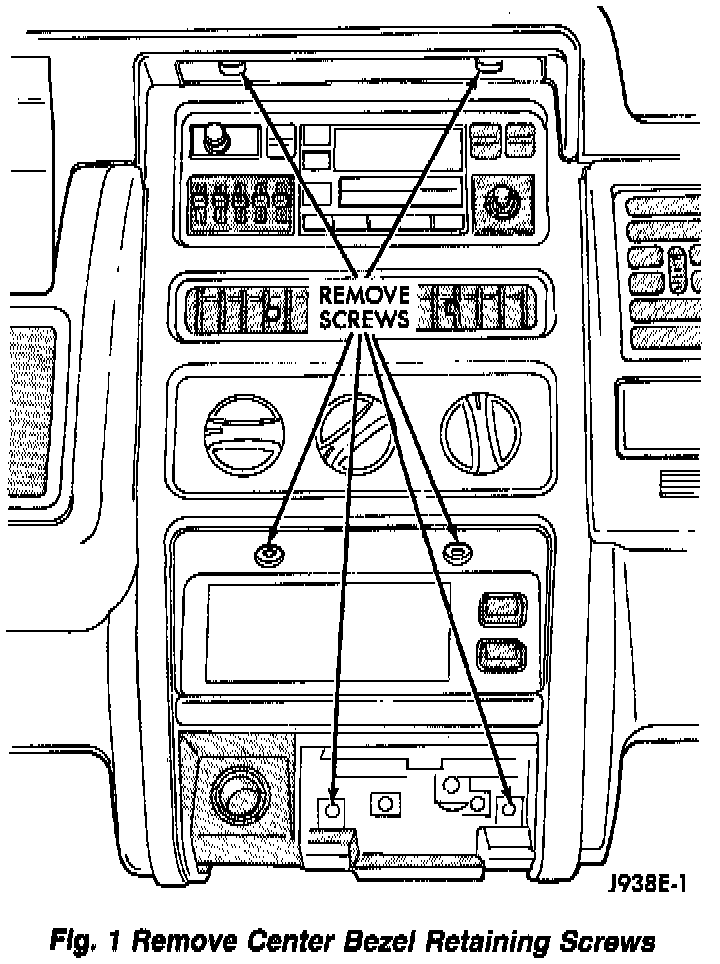

Fig.1 Remove Center Bezel Retaining Screws:

3. Remove screws holding center cluster bezel.
4. Remove center bezel.

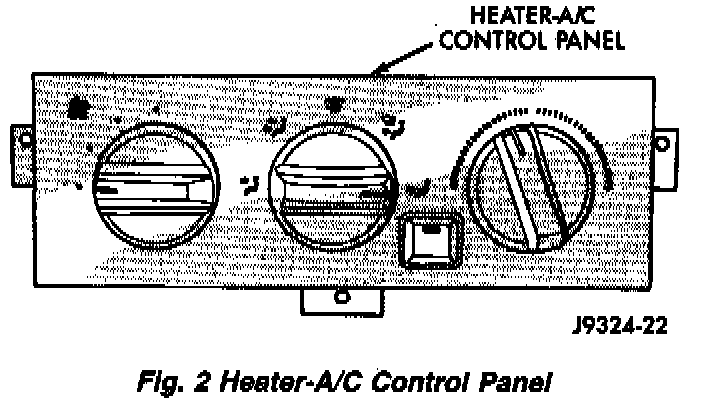

Fig.2 Heater-A/C Control Panel:

5. Remove the control panel screws.
7. Disconnect the electrical connector(s).

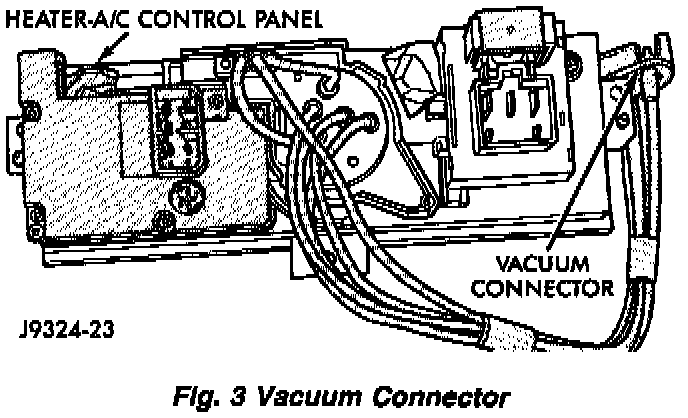

Fig.3 Vacuum Connector:

8. Disconnect the vacuum connector on heater and manual A/C vehicles.
