Home >> Jeep >> 1993 >> Grand Cherokee 4WD L6-242 4.0L VIN S MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> 81 Thru 100 >> 97 >> Early Year Production

Early Year Production

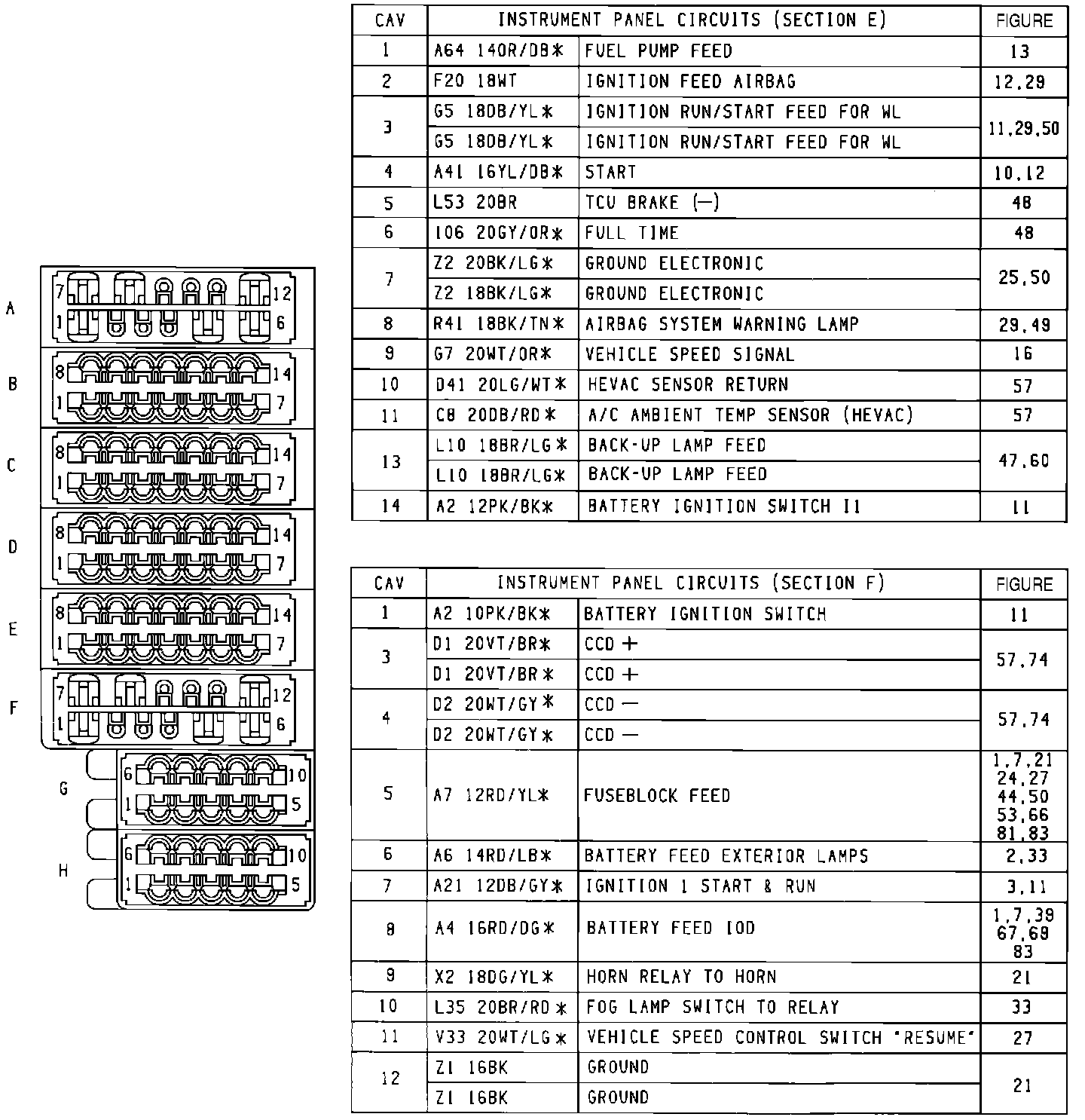

100 Way Instrument Panel:
