Home >> Jeep >> 1994 >> Cherokee 2WD L4-150 2.5L VIN P MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations >> Fuse Panel (Front View)

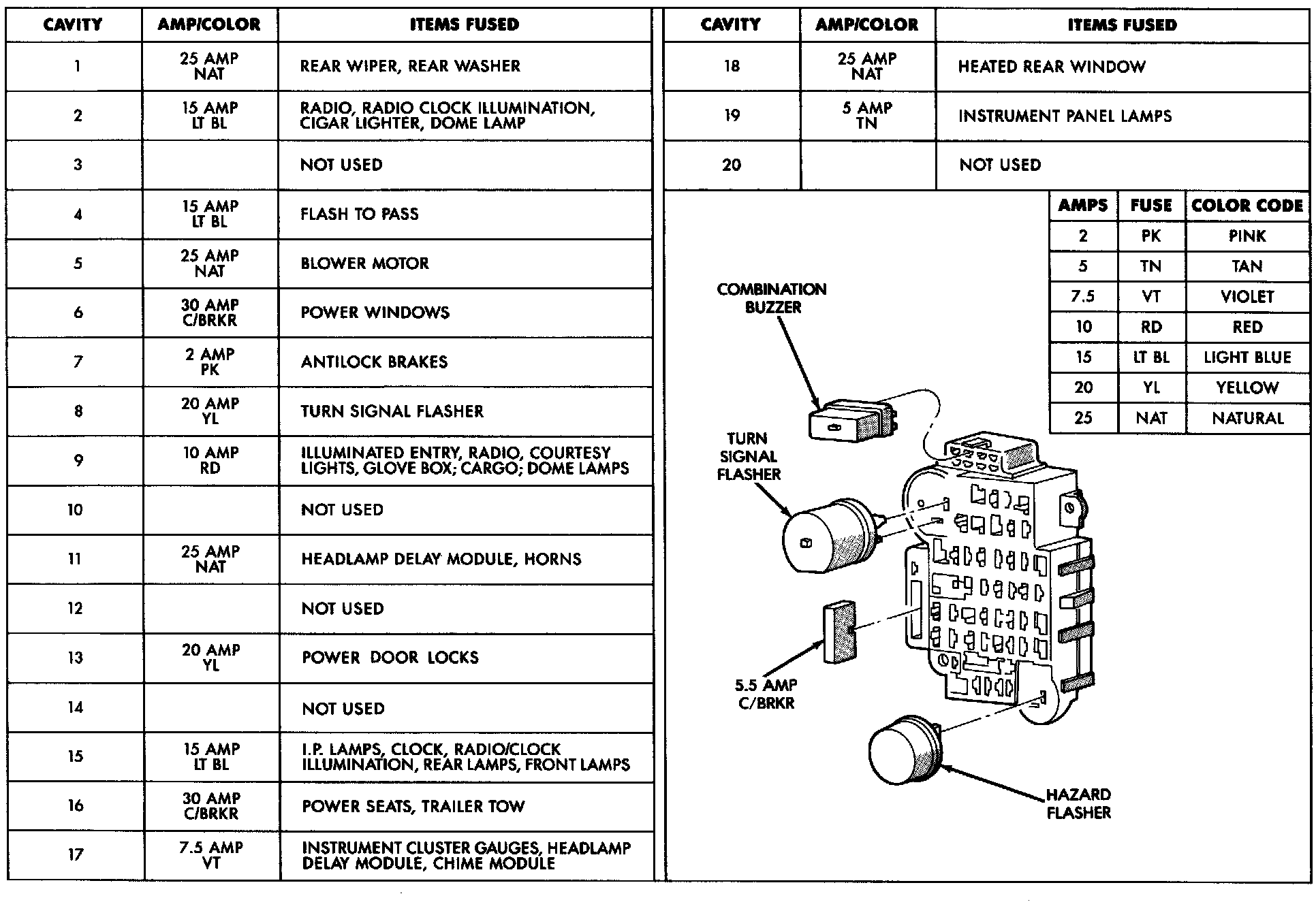

Fuse Panel (Front View)

Fuse Panel:
