Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

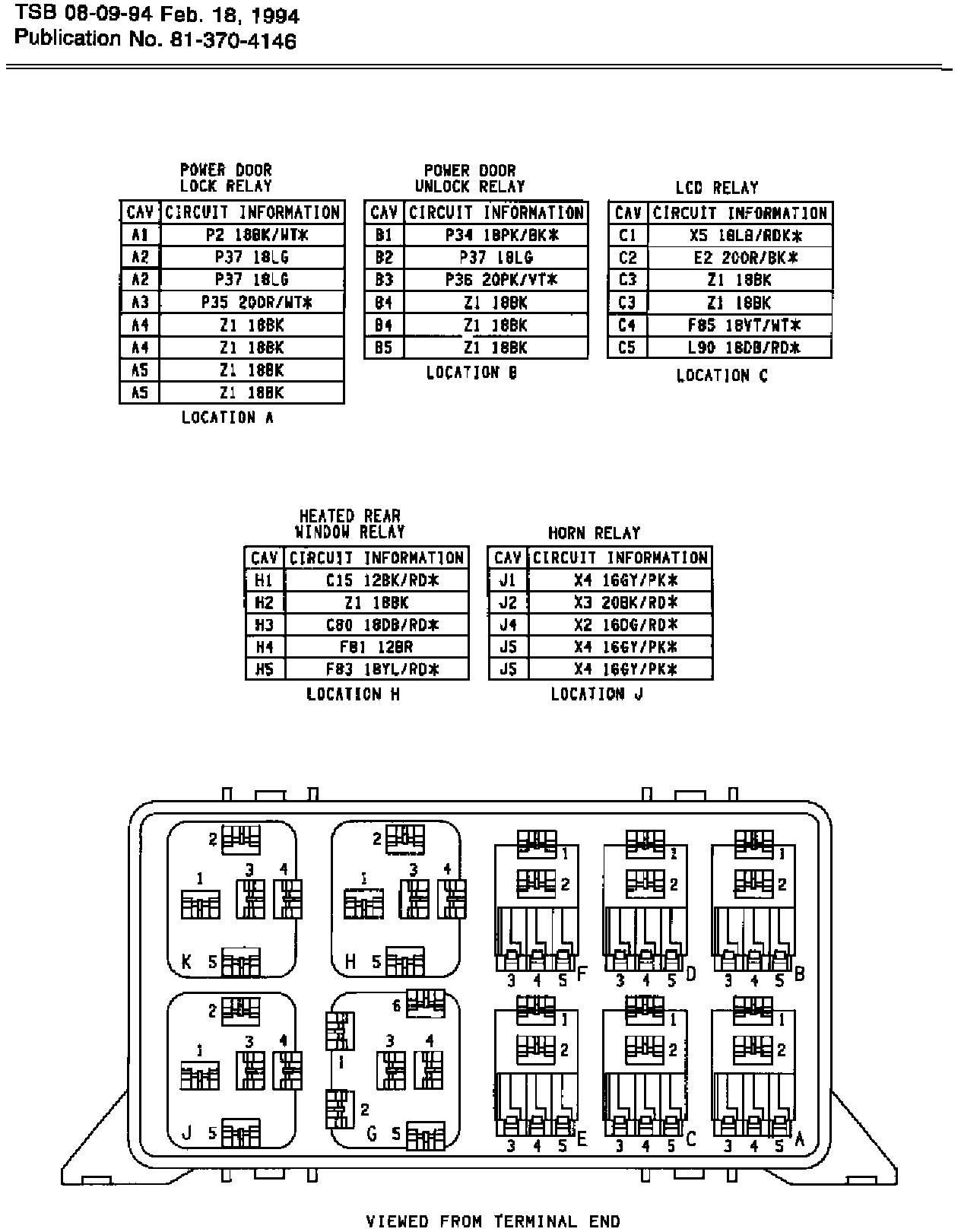

Relay Center Identification
Relay Center Identification
Relay Center Identification:
