Home
>>
Jeep
>>
1994
>>
Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>
Left Hand Drive Body
Left Hand Drive Body

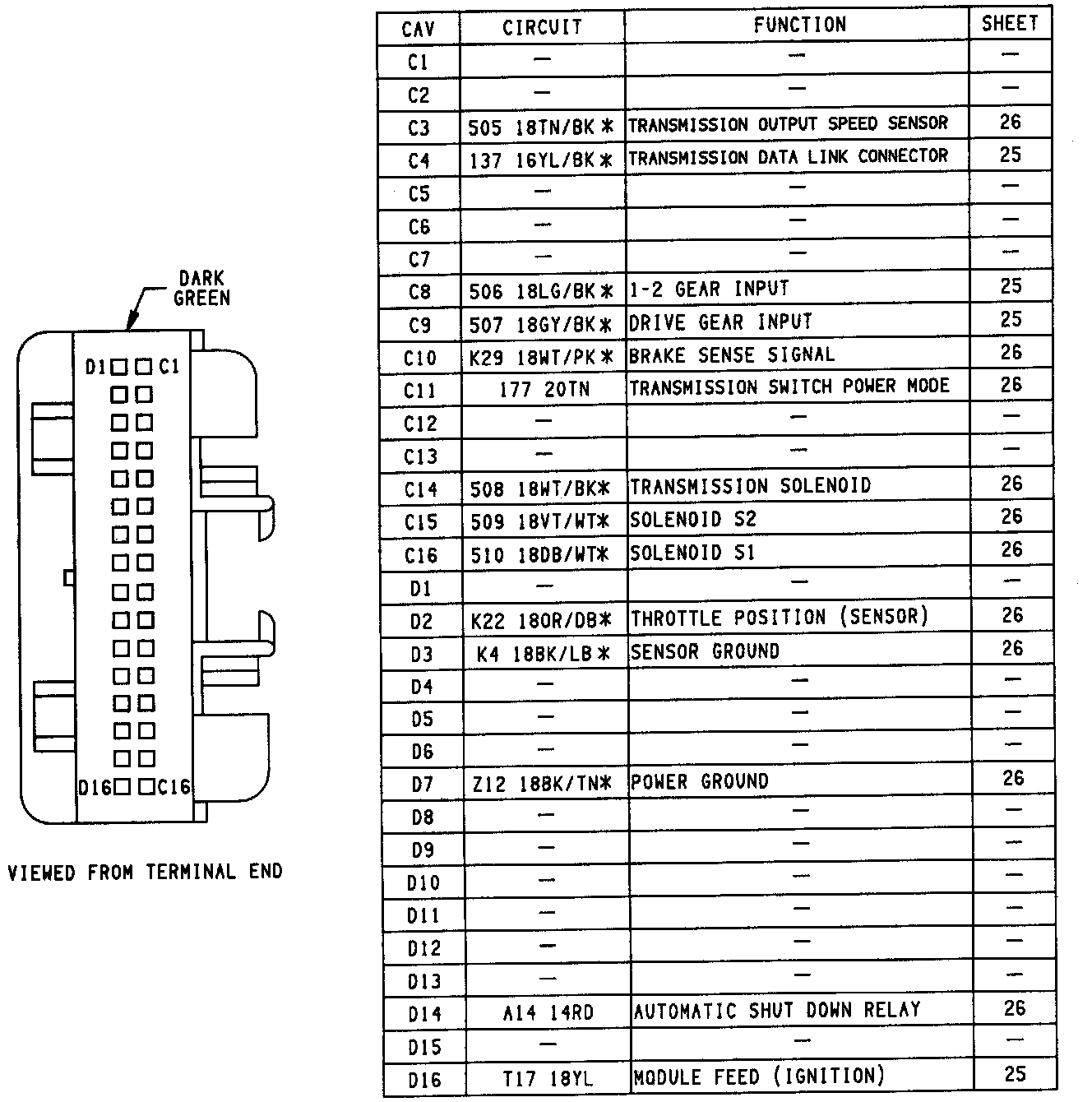

Transmission Control Module (TCM) Connector:
