Home >> Jeep >> 1994 >> Cherokee 2WD L6-242 4.0L VIN S MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

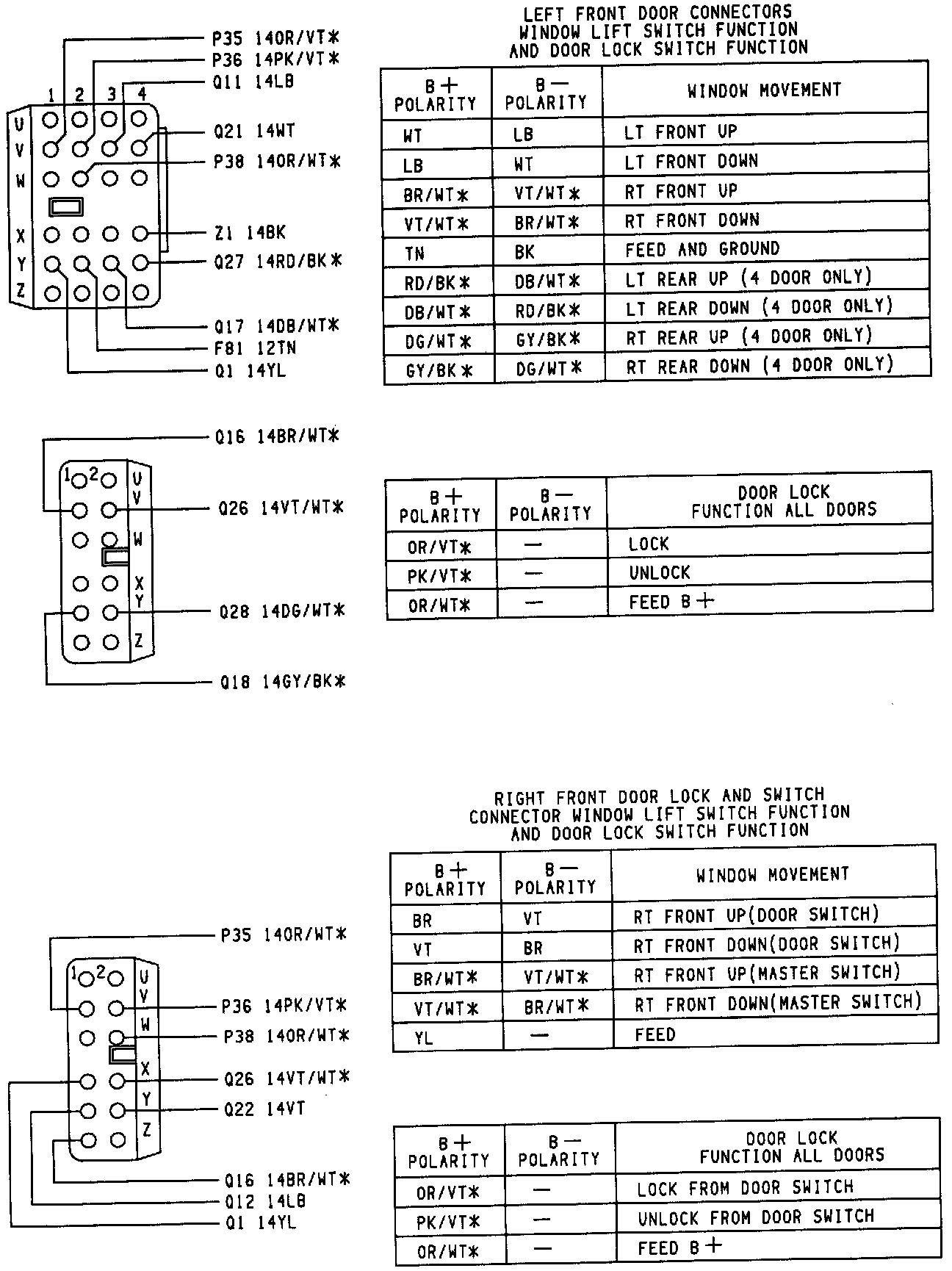

Power Window Switch

Front Door Lock And Window Switch Functions -- Left Hand Drive:
