With Overhead Console

(1) Remove console forward mounting screw.

(2) Unplug Trip Computer harness connector.

(3) Slide console forward until the console detaches from the rear mounting bracket.

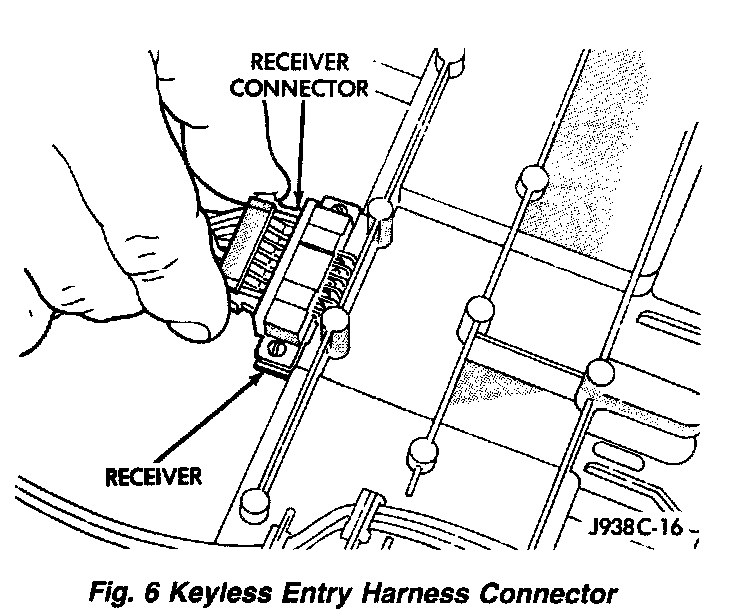

(4) Unplug keyless entry harness connector.





(5) Remove 6 screws holding rear half of console.

(6) Release 4 clips, 2 front and 2 rear, and separate cover out from console.

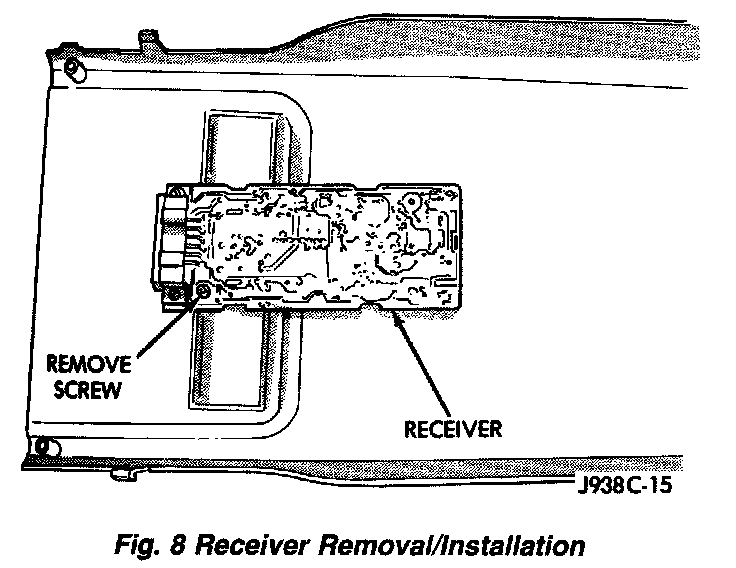

(7) Remove the screw and the printed circuit board can be removed.

(8) To install the overhead console, reverse the removal procedures.
