Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1994
>>
Grand Cherokee 2WD L6-242 4.0L VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
Control Module HVAC

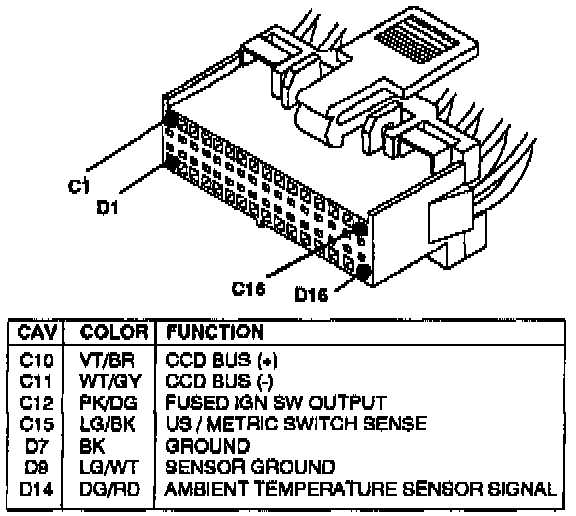

Control Module Connector:
