Fuse Block: Locations

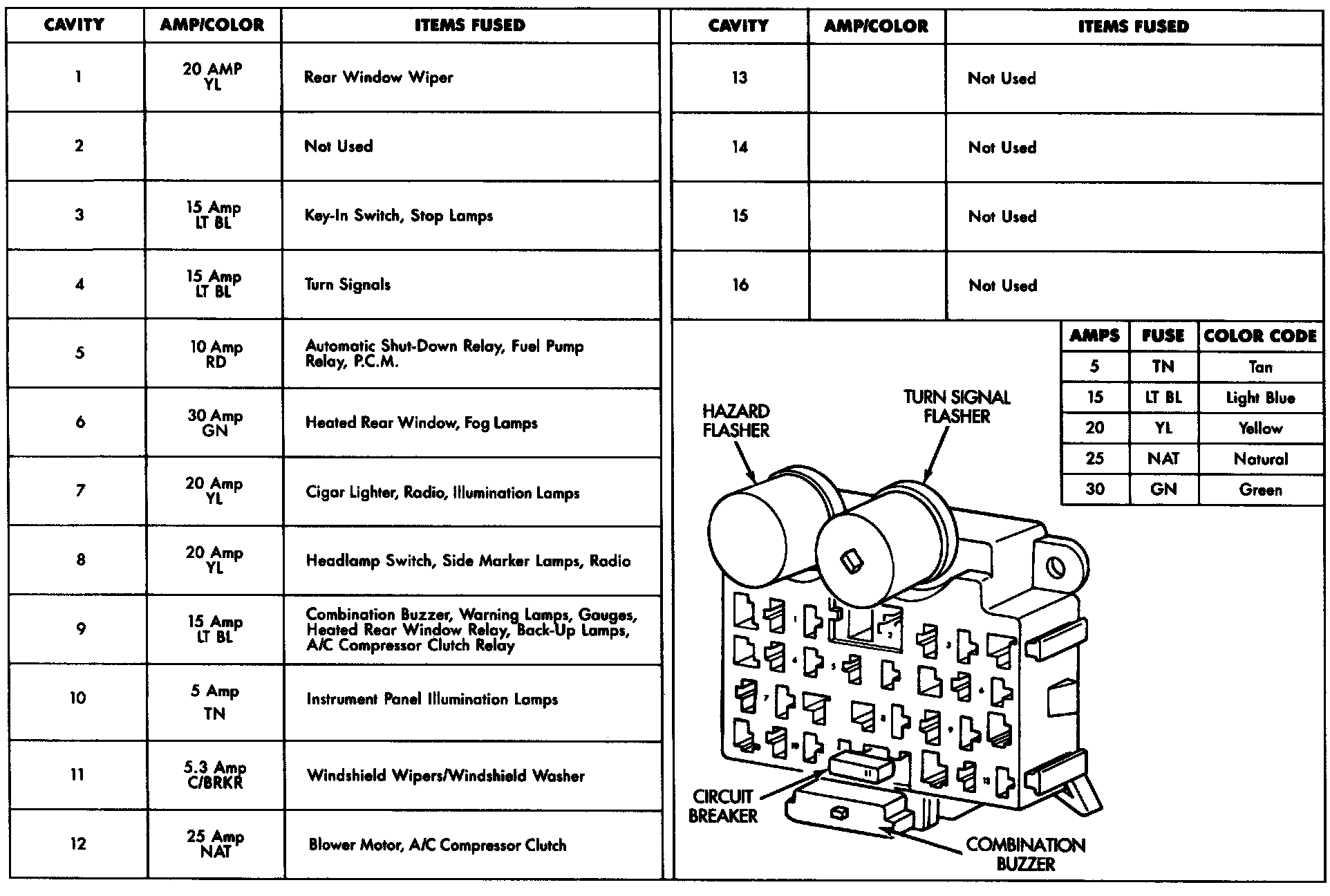

Fuse Panel:





The fuse panel is located under the left side of the instrument panel.
