Home
>>
Jeep
>>
1994
>>
Wrangler L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Power Distribution Center
>>
Identification
Identification

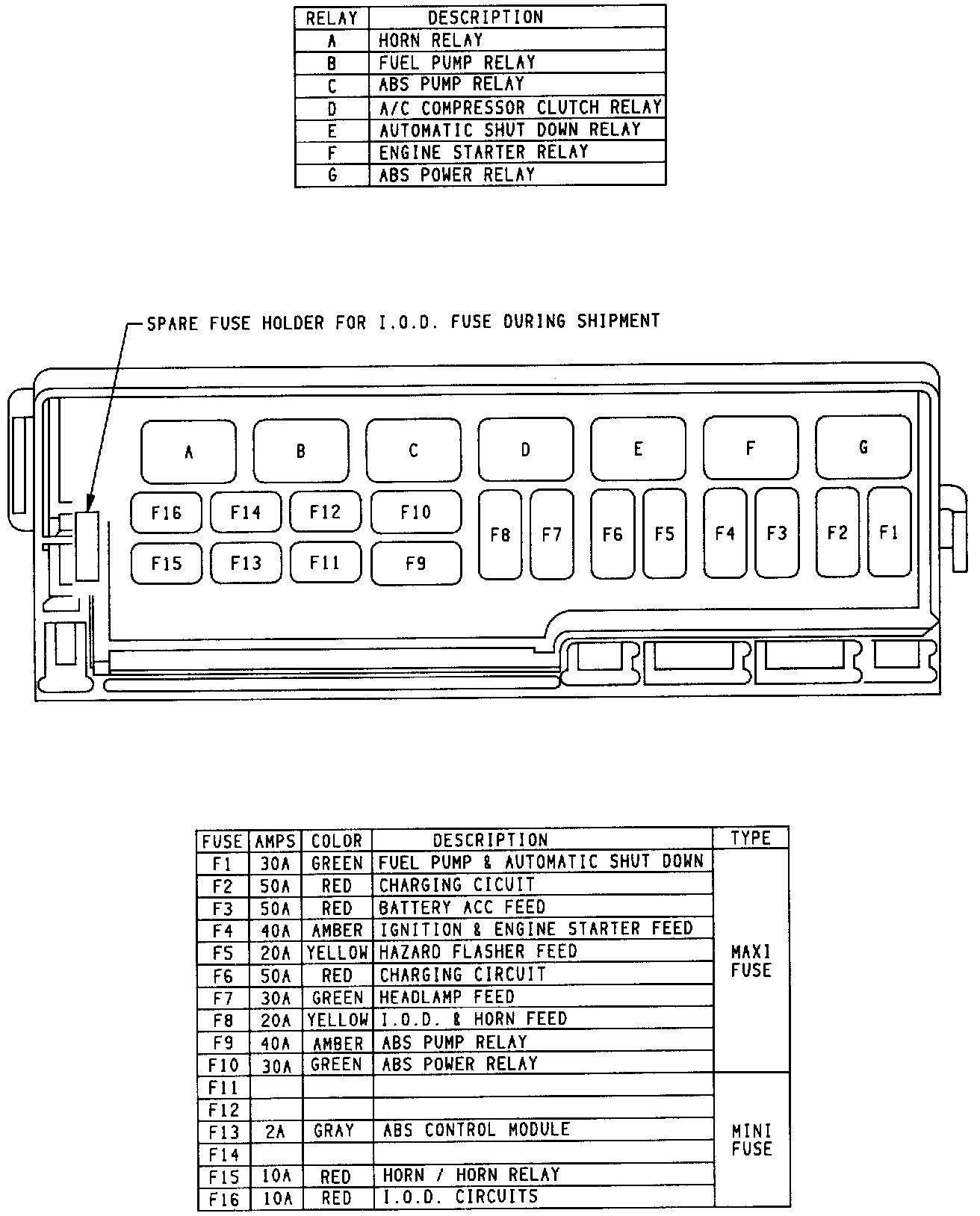

Power Distribution Center:

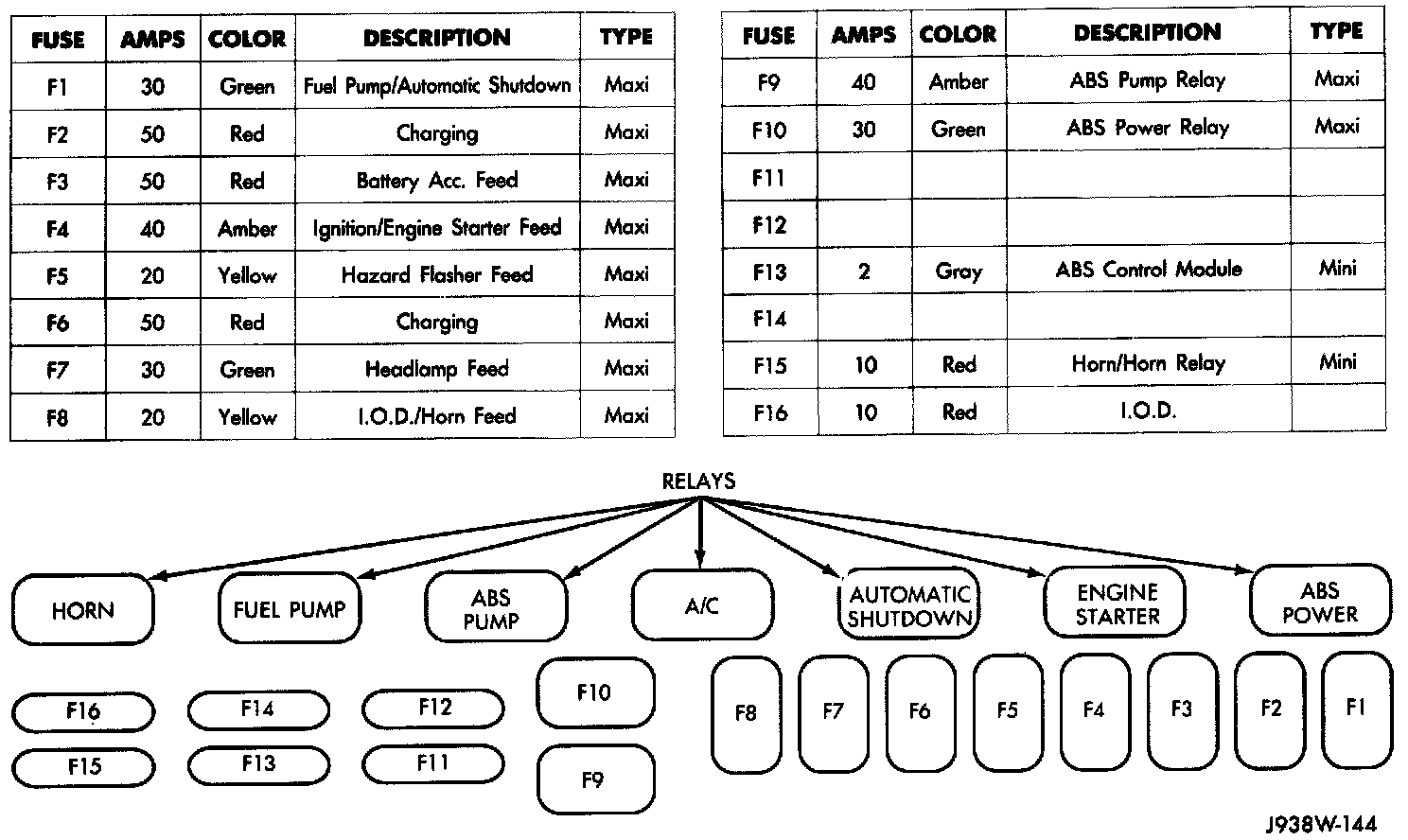

Power Distribution Center Identification Cover:
