Cruise Control Switch: Testing and Inspection

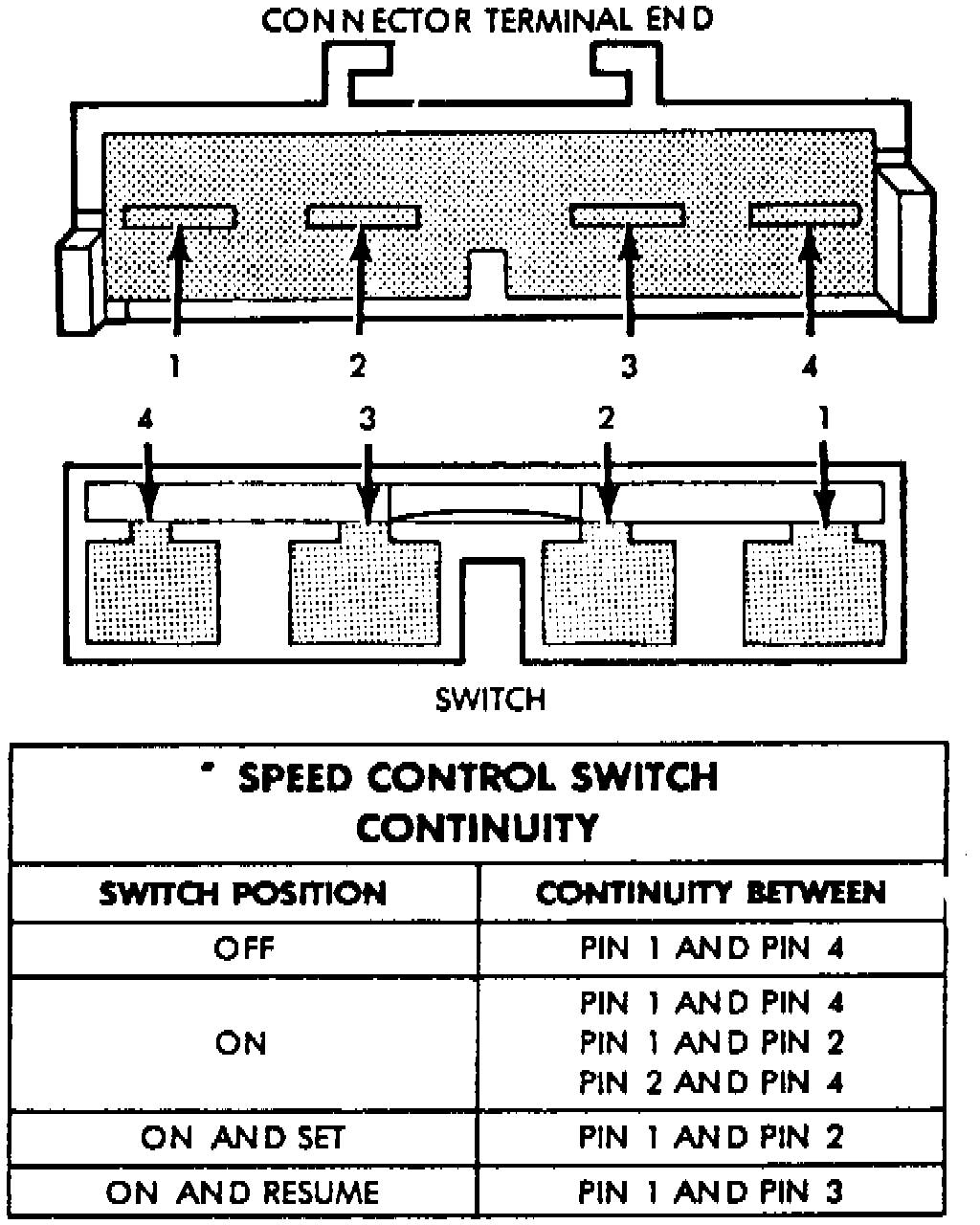

Fig. 112 Speed Control Switch Continuity Inspection:

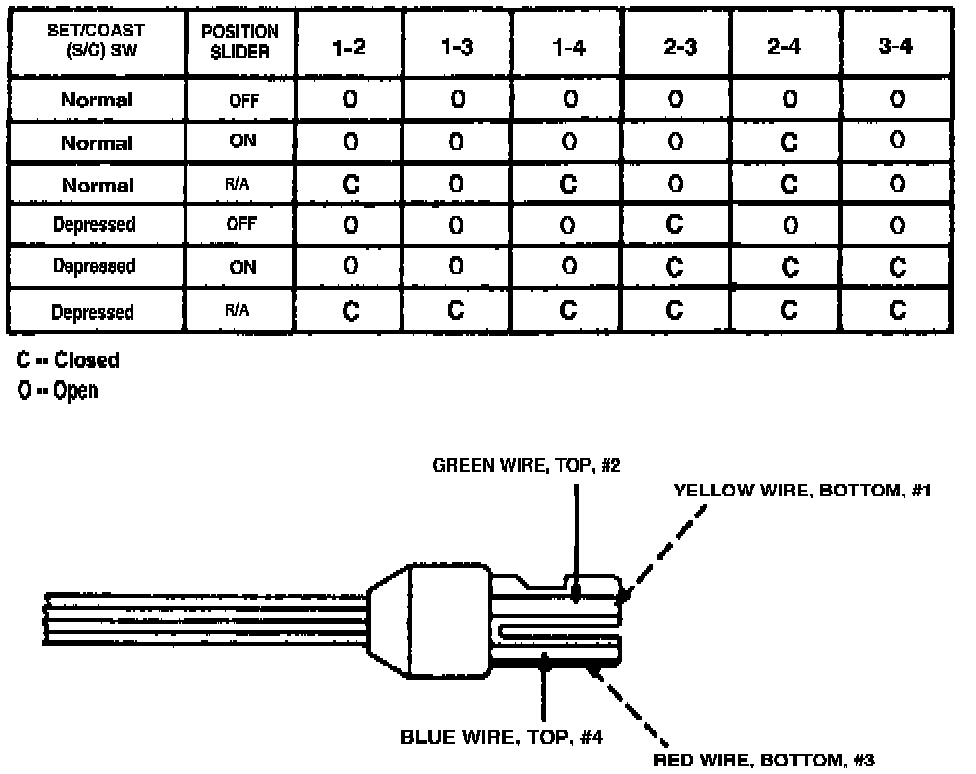

Fig. 113 Speed Control Switch Continuity Inspection:
