Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1995
>>
Grand Cherokee 4WD V8-318 5.2L VIN Y MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-68
Sheet 8W-80-68

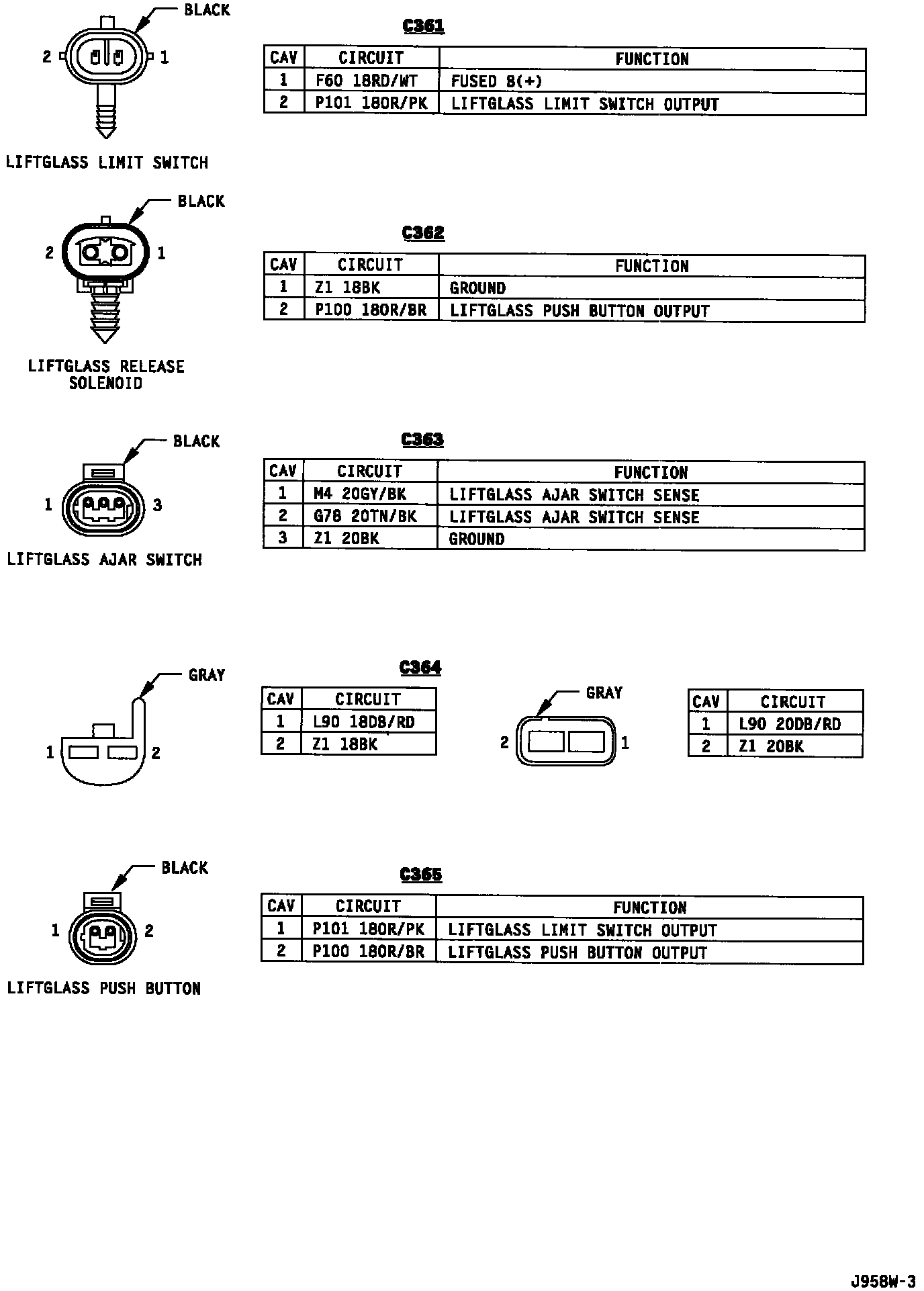

Connector Pin Outs (Part 66 Of 78):
