Jeep
>>
1995
>>
Wrangler L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector

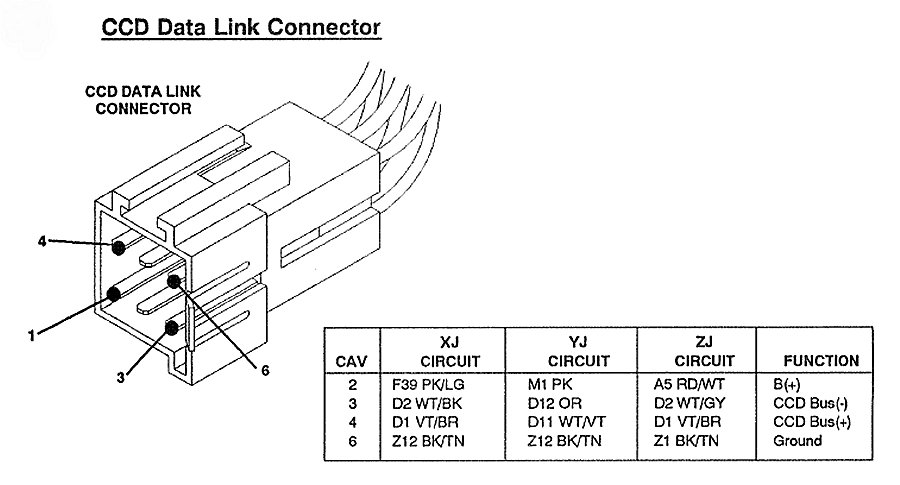

Data Link Connector
Data Link Connector
