Cruise Control Switch: Testing and Inspection

1. Disconnect battery ground cable.
2. Remove speed control switch.

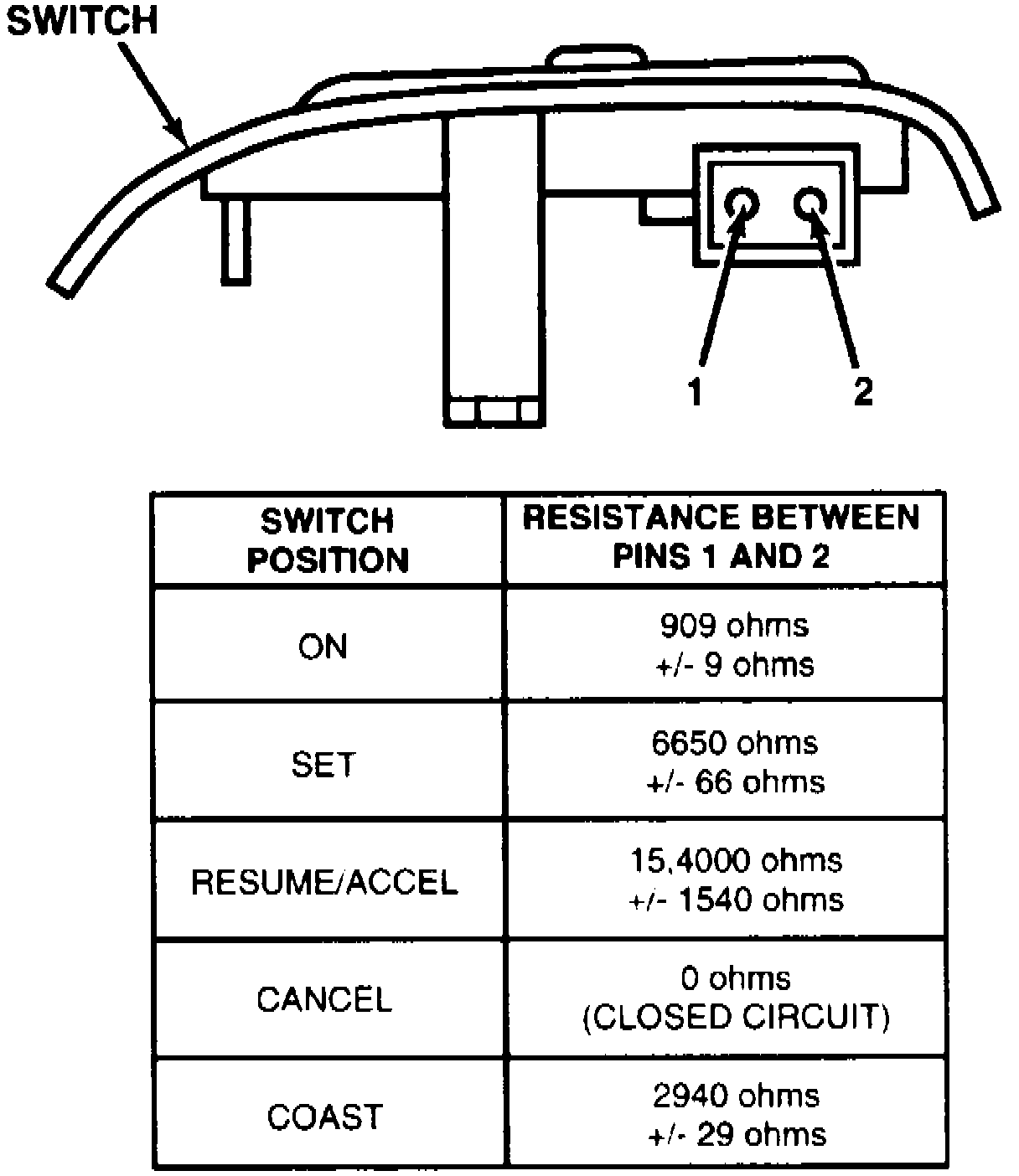

Fig. 111 Speed Control Switch Inspection:

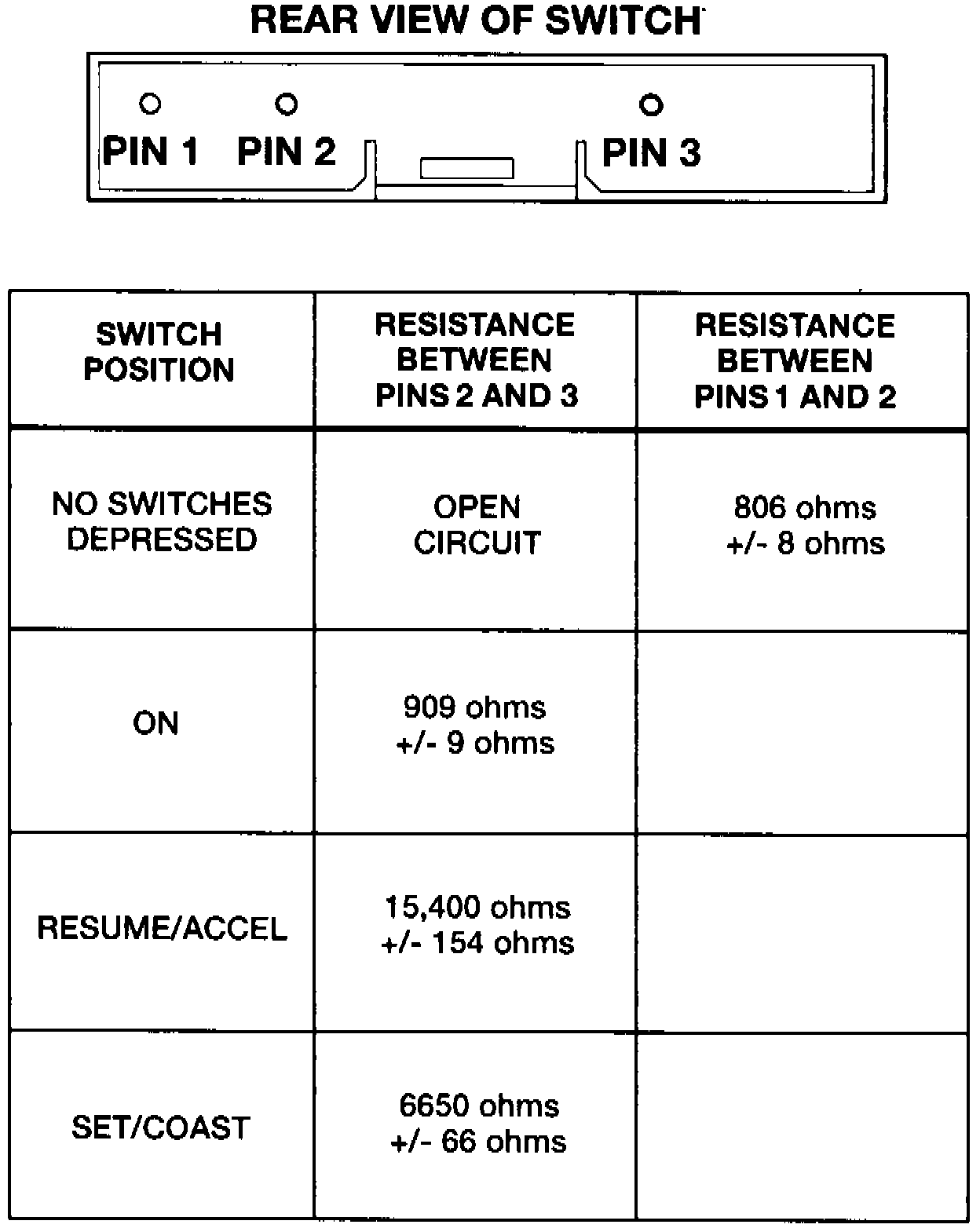

Fig. 114 Speed Control Switch Inspection:

3. Inspect switch continuity as shown.
4. If continuity is not as specified, replace switch.
