Home >> Jeep >> 1996 >> Grand Cherokee 2WD L6-242 4.0L VIN S MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Door Modules >> Door Modules (Power Door Locks)

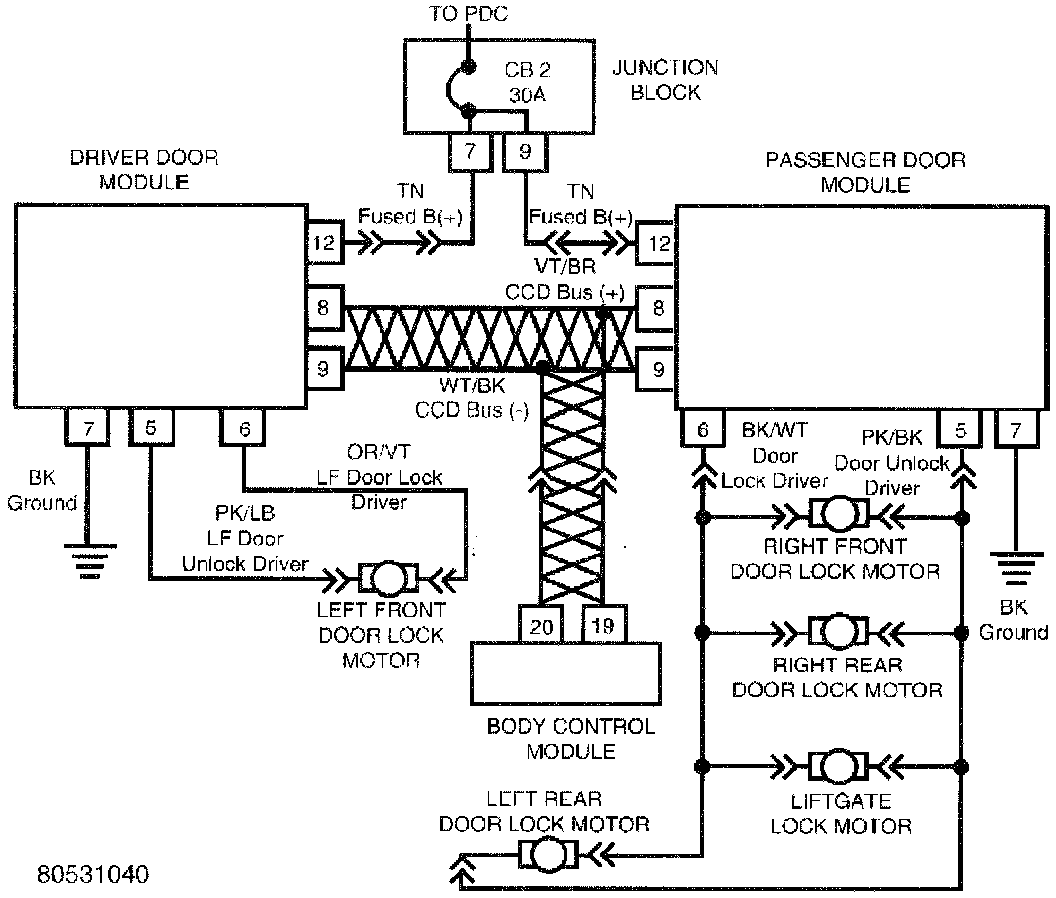

Door Modules (Power Door Locks)

Door Modules (Power Door Locks):
