Blower Motor Relay: Service and Repair

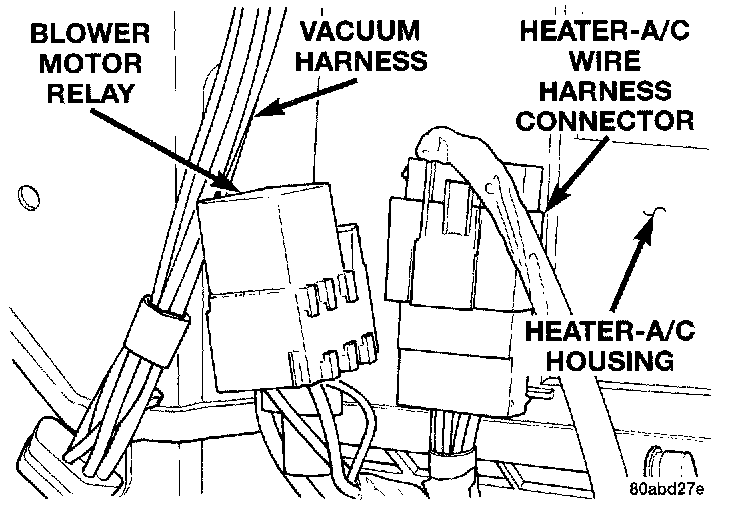

Fig 47 Blower Motor Relay Removal/Installation:

1. Disconnect and isolate the battery negative cable.
2. Open the glove box and remove the glove box stop bumpers to roll down the glove box.
3. Reach through the glove box opening to locate the blower motor relay.
4. Unplug the blower motor relay from its wire harness connector.
5. Install the blower motor relay by aligning the relay terminals with the cavities in the wire harness connector and pushing the relay firmly into place.
6. Roll up the glove box and reinstall the glove box stop bumpers.
7. Connect the battery negative cable.
8. Test the relay operation.
