Left Hand Drive

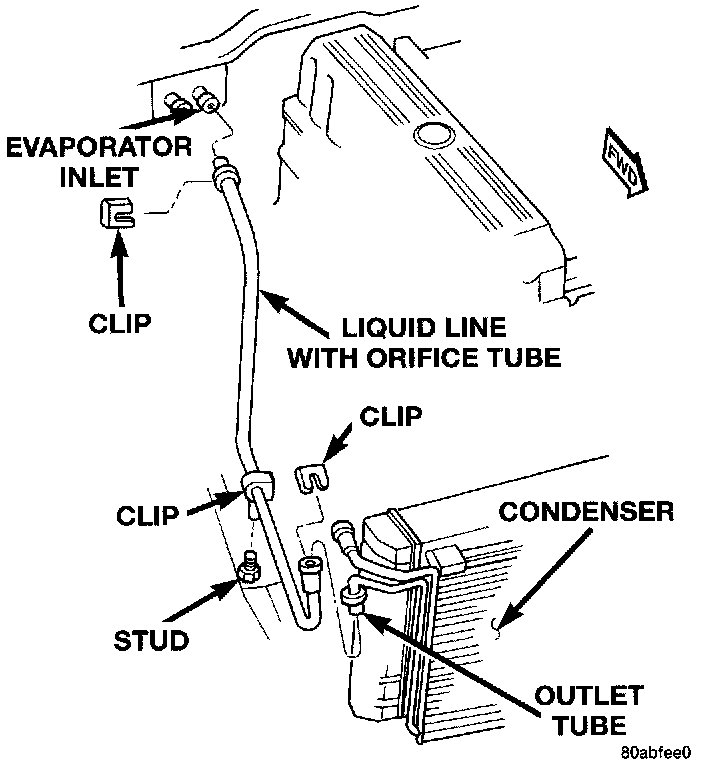

Fig 33 Liquid Line Removal/Installation -- Left Hand Drive:

The fixed orifice tube is located in the liquid line near the condenser. The orifice has filter screens on the inlet and outlet ends of the tube body. If the fixed orifice tube is faulty or plugged, the liquid line unit must be replaced. See the service procedures for the liquid line.
