Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1997
>>
Cherokee 4WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

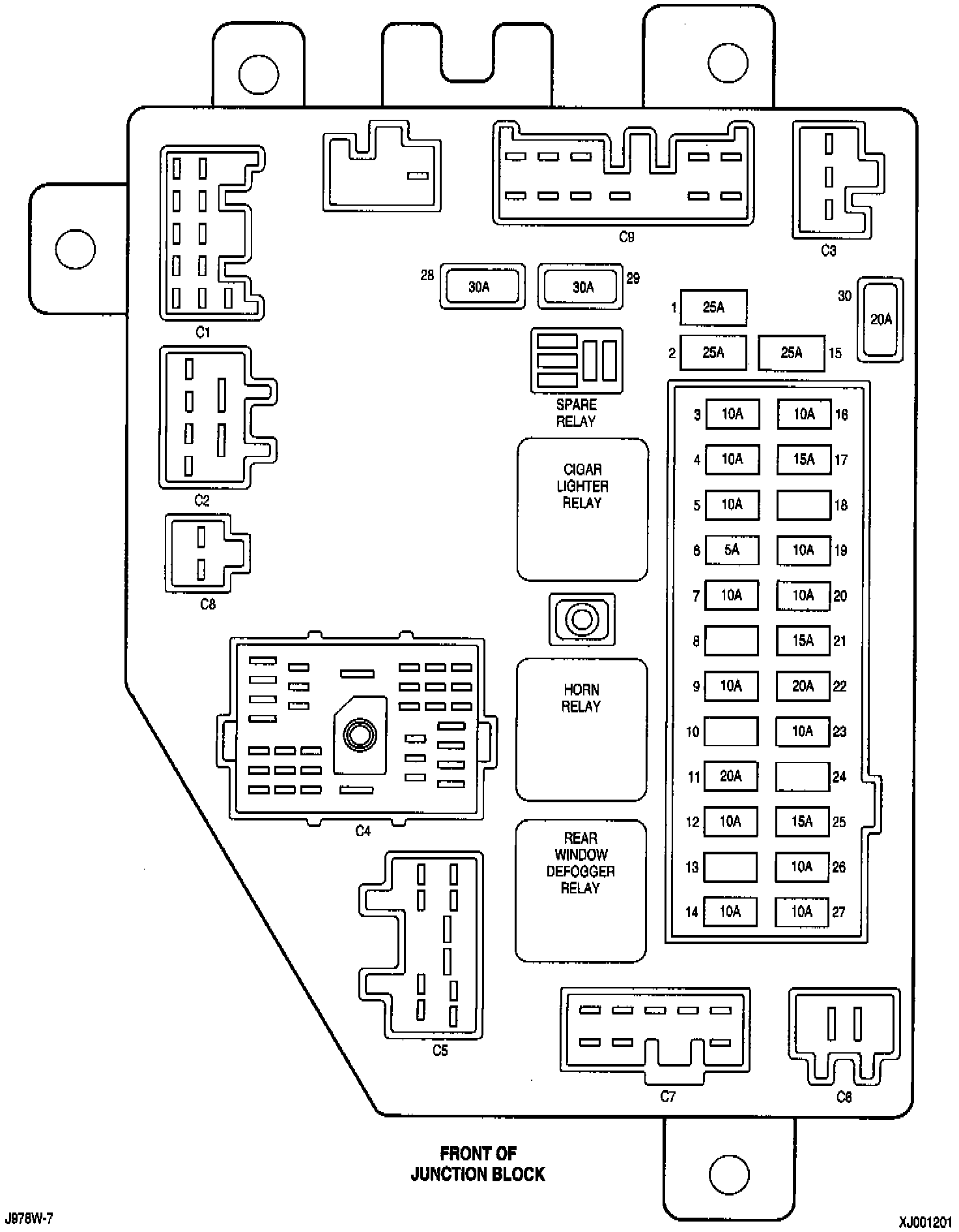

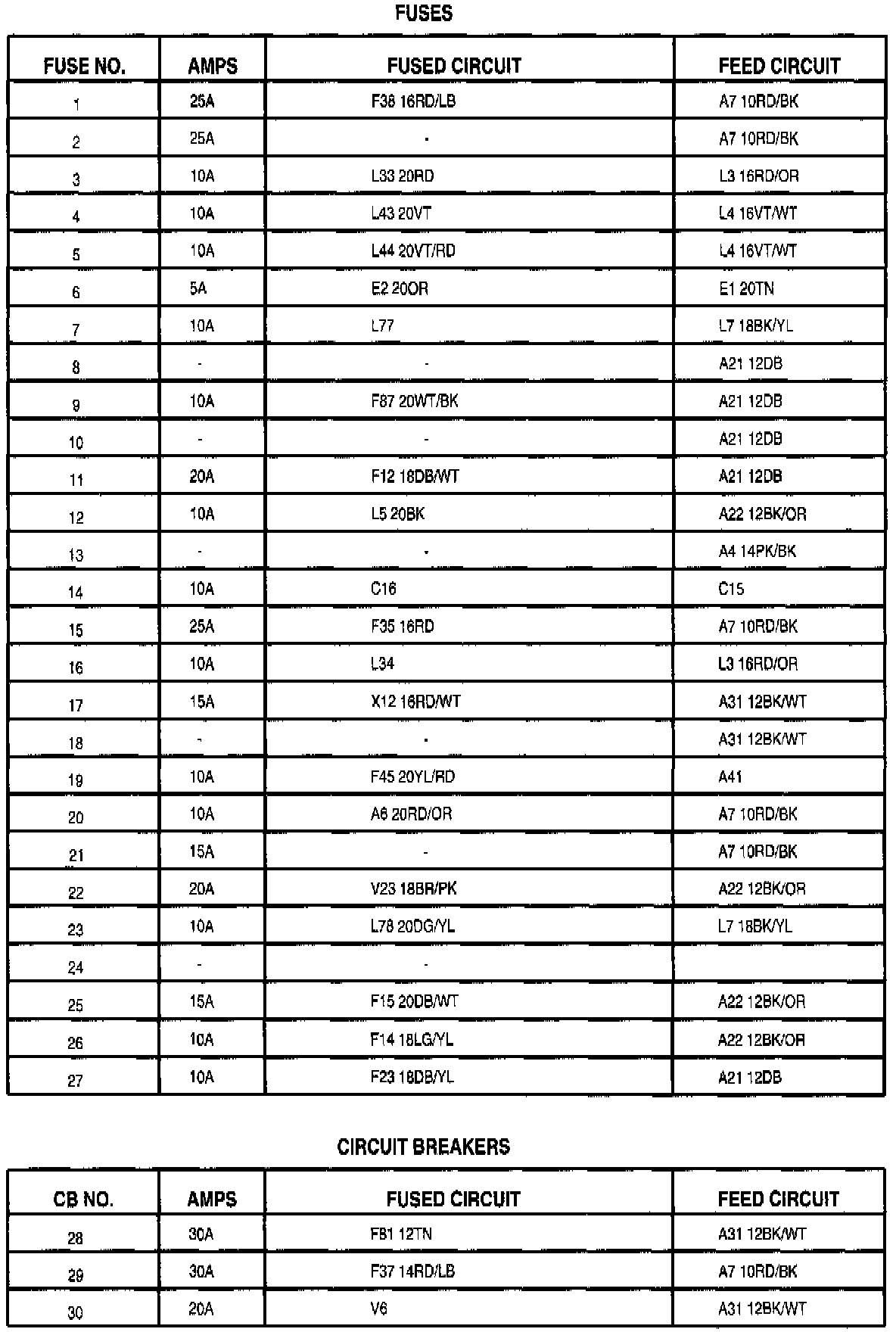

Fuse Block
Fuse Block

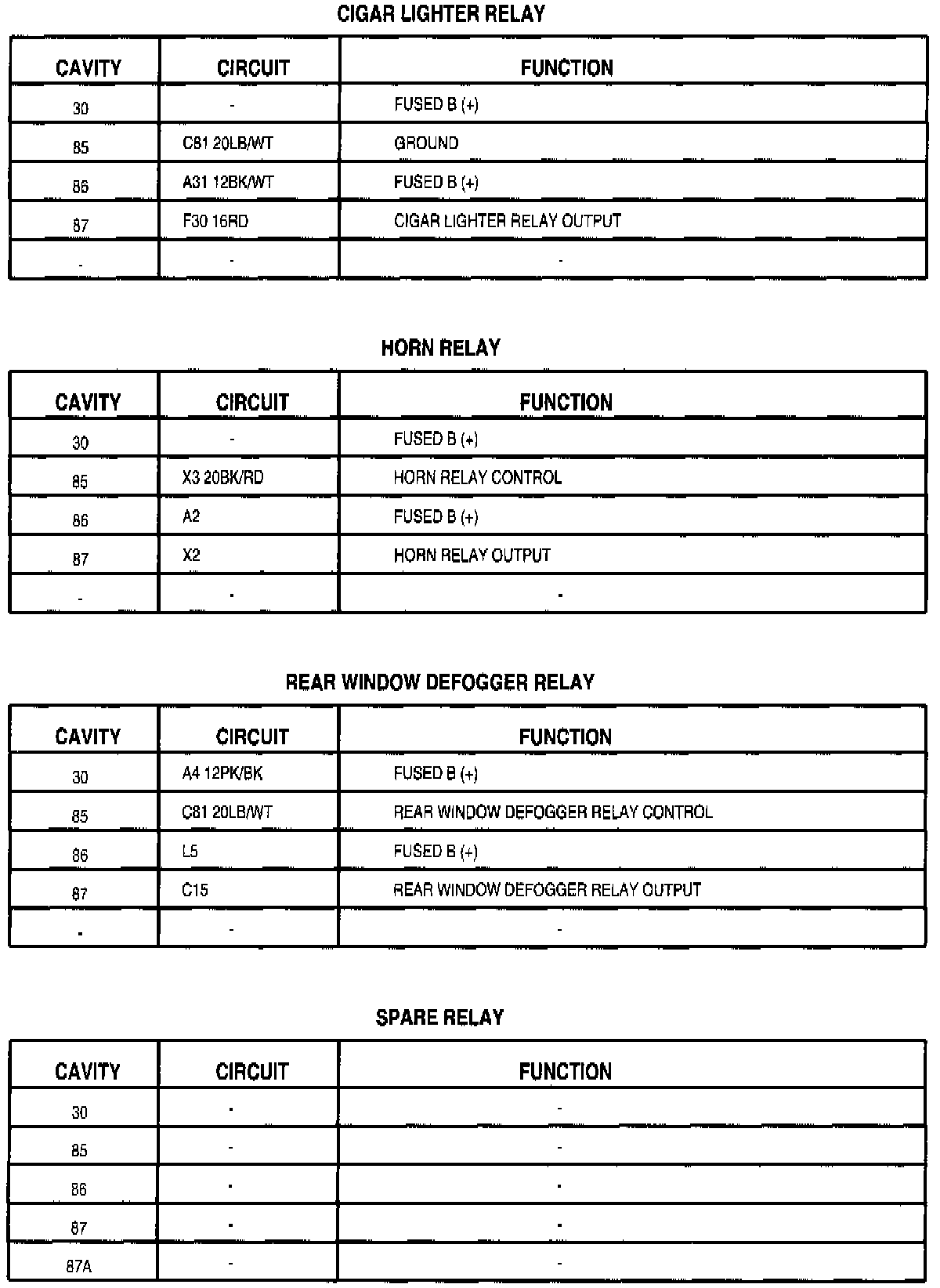

Junction Blocks:
Junction Blocks:
Junction Blocks:
