Blower Motor Relay: Service and Repair

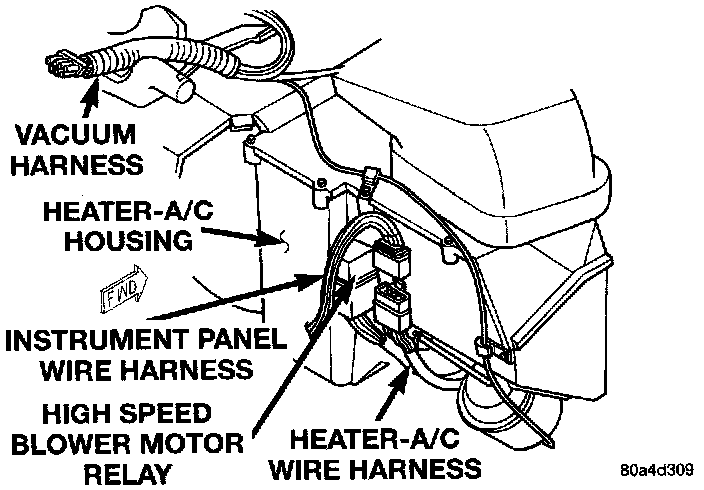

Fig 32 High Speed Blower Motor Relay:

HIGH SPEED BLOWER MOTOR RELAY


WARNING: Refer to Air Bags before attempting Steering Wheel, Steering Column, or Instrument Panel component diagnosis or service. Failure to take the proper precautions could result in accidental air bag deployment and possible personal injury.

1. Disconnect and isolate the battery negative cable.
2. Remove the glove box.
3. Locate the relay near the right end of the heater-A/C housing under the instrument panel.
4. Unplug the relay from the connector.
5. To install the relay, align the terminals with the cavities in the relay center and push the relay firmly into place.
6. Install the glove box.
7. Connect the battery negative cable.
8. Test the relay operation.
