Blower Motor Resistor: Service and Repair

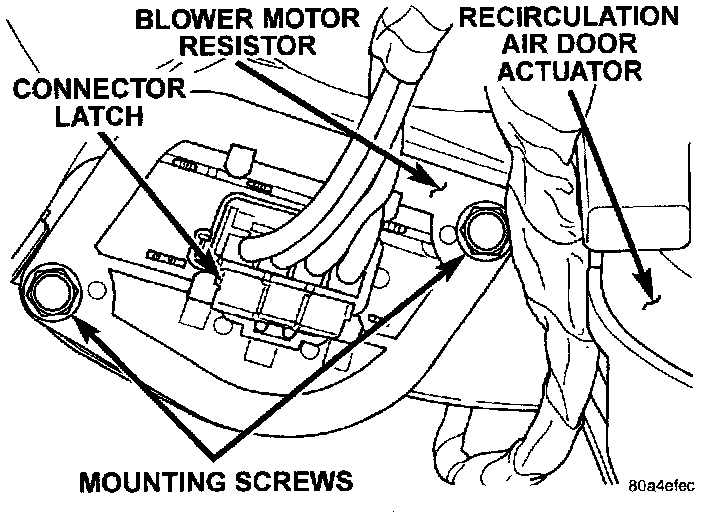

Fig 33 Blower Motor Resistor:

WARNING: Refer to Air Bags before attempting Steering Wheel, Steering Column, or Instrument Panel component diagnosis or service. Failure to take the proper precautions could result in accidental air bag deployment and possible personal injury.

1. Disconnect and isolate the battery negative cable.
2. Remove the kick cover from the passenger side outboard end of the heater-A/C housing under the instrument panel. There are two screws securing the outboard end of the cover to the housing, and one screw secures the inboard end of the cover to the housing.
3. Pull out on the blower motor resistor wiring connector latch and unplug the connector from the resistor.
4. Remove the two screws securing the resistor to the heater-A/C housing.
5. Remove the resistor from the housing.
6. Reverse the removal procedures to install.
