Heater Core: Service and Repair

Lower Heater -- A/C Housing:

WARNING: Refer to Air Bags before attempting Steering Wheel, Steering Column, or Instrument Panel component diagnosis or service. Failure to take the proper precautions could result in accidental air bag deployment and possible personal injury.

1. Remove and disassemble the heater-A/C housing. Service and Repair

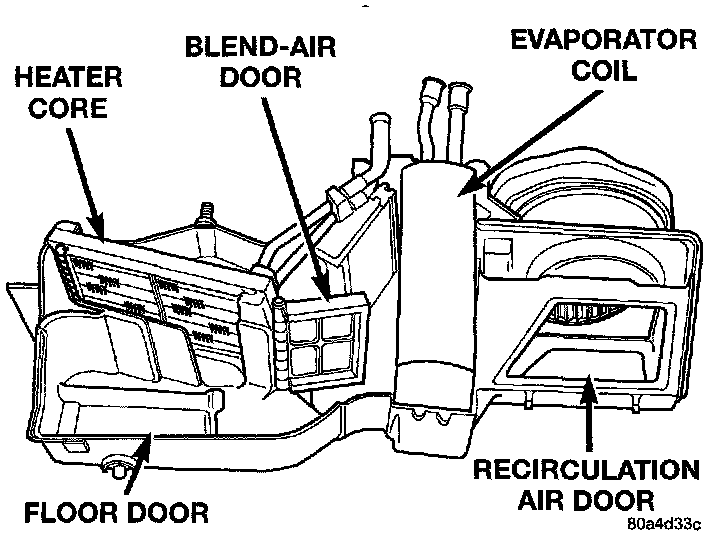

2. Lift the heater core out of the lower half of the heater-A/C housing.
3. Reverse the removal procedures to install. Be certain that the heater core foam insulator is reinstalled.
