Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1997
>>
Wrangler L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 15
Figure 15

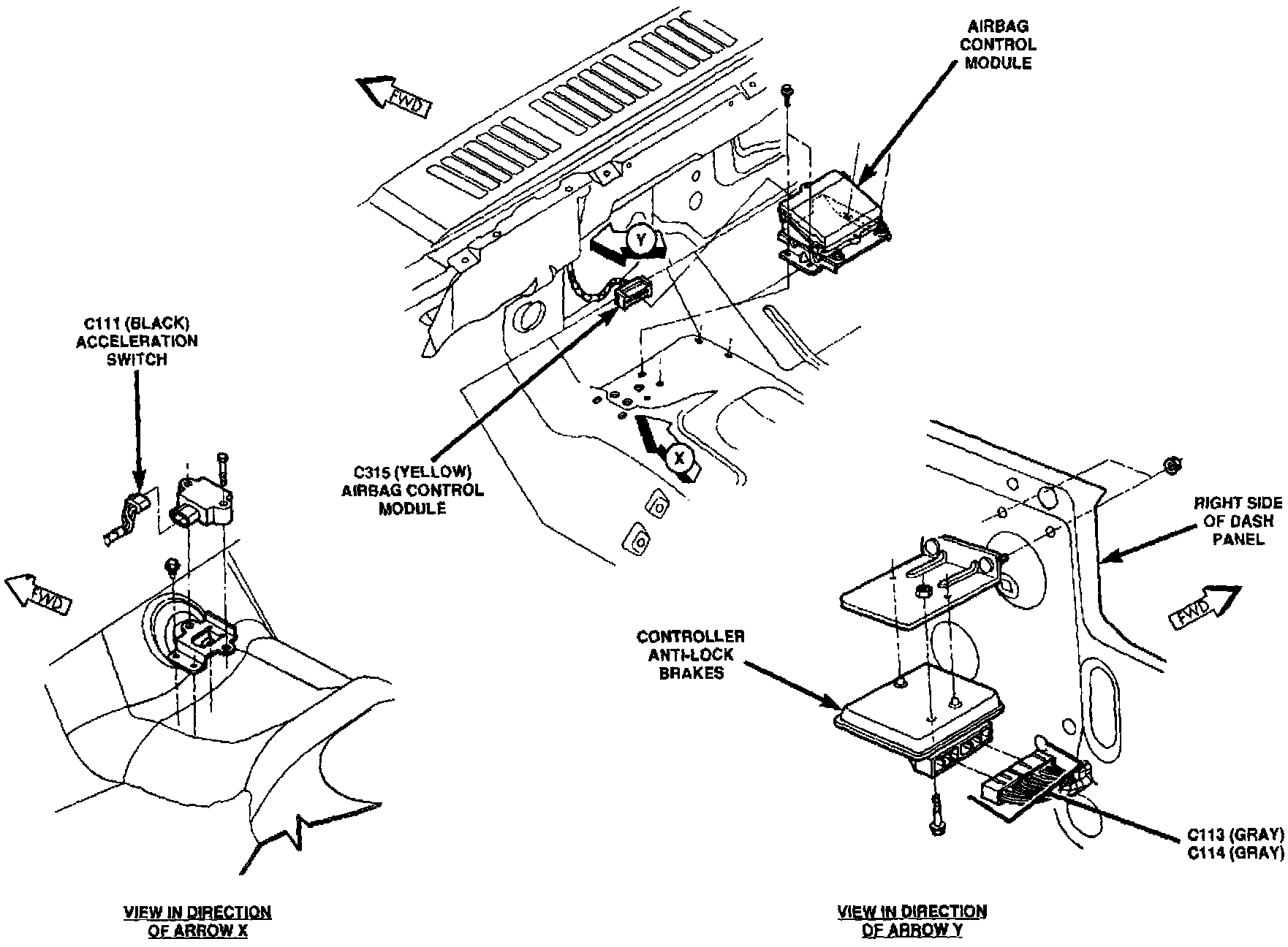

Airbag Control Module And Controller, Antilock Brakes:
