Fuse Block: Service and Repair

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO AIRBAGS AND SEAT BELTS/AIRBAGS BEFORE ATTEMPTING STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

1. Disconnect and isolate the battery negative cable.
2. Remove the glove box as described.

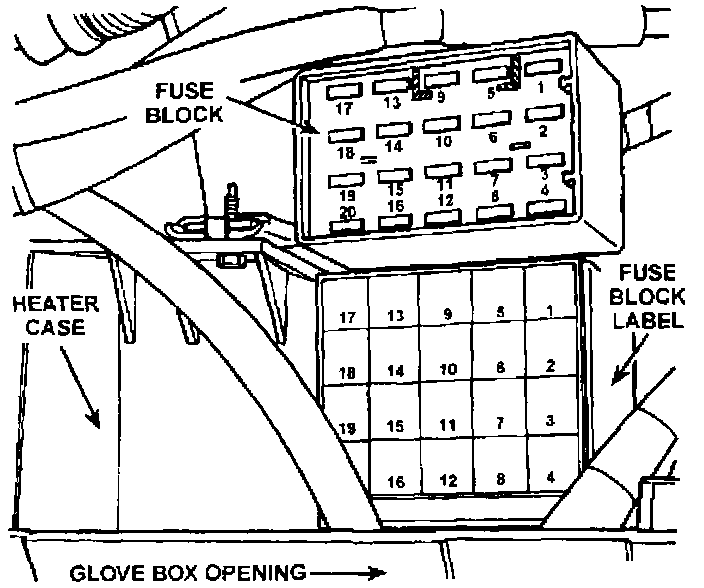

Fuseblock Module Remove/Install:

3. Reach through the glove box opening and remove the two screws holding the fuseblock module to the bracket on the dash panel.
4. Remove the fuseblock module from the dash panel.
5. Reverse the removal procedures to install.
