Automatic

GENERAL INFORMATION
The 32RH is a three speed transmission with a lock-up clutch in the torque converter. The torque converter clutch is controlled by the Powertrain Control Module (PCM). The torque converter clutch is hydraulically applied and is released when fluid is vented from the hydraulic circuit by the Torque Converter Control (TCC) solenoid on the valve body The torque converter clutch engages in third gear when the vehicle is cruising on a level plane after the vehicle has warmed up. The torque converter clutch will disengage when the vehicle begins to go uphill or the accelerator is applied. The torque converter clutch feature increases fuel economy and reduces the transmission fluid temperature. The 32RH transmission is cooled by an integral fluid cooler inside the radiator.

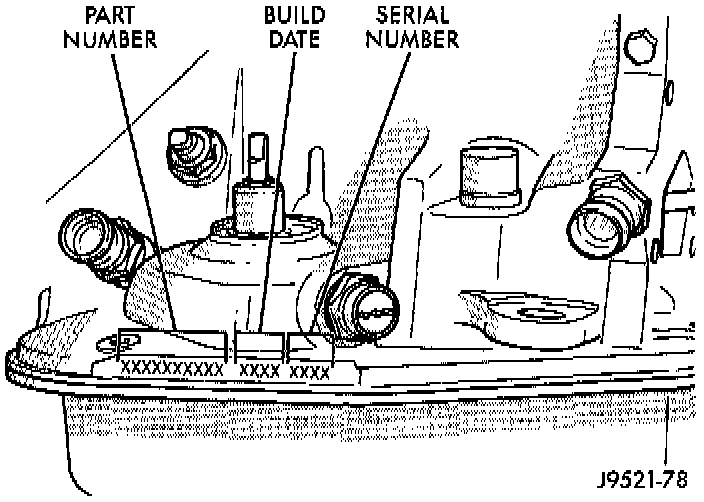

Fig. 2 Transmission Part And Serial Number:

TRANSMISSION IDENTIFICATION
Transmission identification numbers are stamped on the left side of the case just above the oil pan gasket surface. Refer to this information when ordering replacement parts.

GEARSHIFT MECHANISM
The shift mechanism is cable operated and provides six shift positions. The shift indicator is located on the console next to the gear shift. The shift positions are:
^ Park (P)
^ Reverse (R)
^ Neutral (N)
^ Drive (D)
^ Manual Second (2)
^ Manual Low (1)

Manual low (1) range provides first gear only Over run braking is also provided in this range. Manual second (2) range provides first and second gear only. Drive range provides first, second, and third gear ranges.
