Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE MANIFOLD AIR TEMPERATURE SENSOR

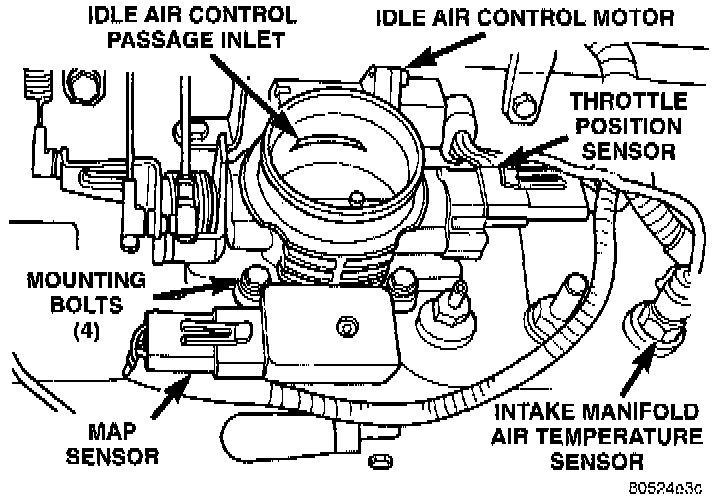

Fig. 45 Intake Air Sensor Location-Typical-4.0L Shown:

The intake manifold air temperature sensor is installed into the intake manifold plenum near the throttle body (Fig. 45).

REMOVALL

1 Disconnect electrical connector from sensor.

2 Remove sensor from intake manifold.


INSTALLATION

1 Install sensor into intake manifold. Tighten sensor to 28 Nm (20 ft. lbs.) torque.

2 Connect electrical connector to sensor.
