Battery Temperature Sensor: Service and Repair

The battery temperature sensor is located under the vehicle battery and is attached to a mounting hole on battery tray.

REMOVAL
1. Remove the battery.

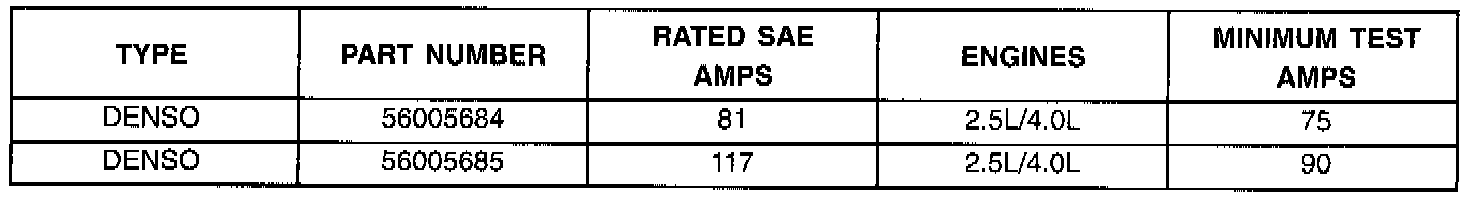

Generator Ratings:

2. Disconnect the sensor pigtail harness from the engine wire harness.
3. Pry the sensor straight up from the battery tray mounting hole.

INSTALLATION
1. Feed the pigtail harness through the hole in top of battery tray and press sensor into top of battery tray.
2. Connect the pigtail harness.
3. Install the battery.
