Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Fig. 34 Throttle Body and Sensor Locations:

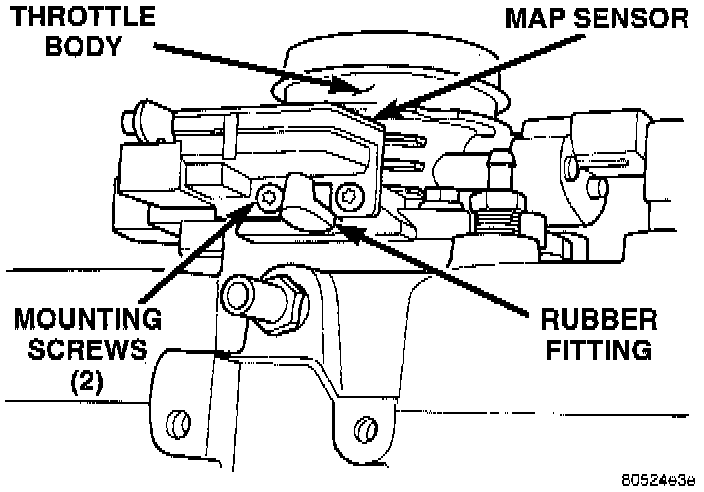

Fig. 38 MAP Sensor Mounting:

The Manifold Absolute Pressure (MAP) sensor is mounted to the side of the throttle body (Fig. 34). An L-shaped rubber fitting is used to connect the MAP sensor to throttle body (Fig. 38).

REMOVAL

1 Remove air cleaner intake tube at throttle body.

2 Remove two MAP sensor mounting bolts (screws) (Fig. 38).

3 While removing MAP sensor, slide the rubber L-shaped fitting (Fig. 38) from throttle body.

4 Remove rubber L-shaped fitting from MAP sensor.

INSTALLATION

1 Install rubber L-shaped fitting to MAP sensor.

2 Position sensor to throttle body while guiding rubber fitting over throttle body vacuum nipple.

3 Install MAP sensor mounting bolts (screws). Tighten screws to 3 Nm (25 in. lbs.) torque.

4 Install air cleaner intake tube.
