Home >> Jeep >> 1997 >> Wrangler L6-4.0L VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams

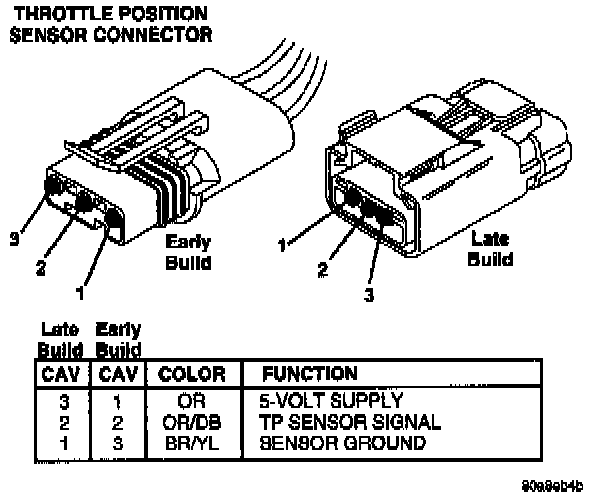

Throttle Position Sensor: Diagrams

Sensors For TJ Body.:
