Removal

REMOVAL

1. Raise and support the vehicle.

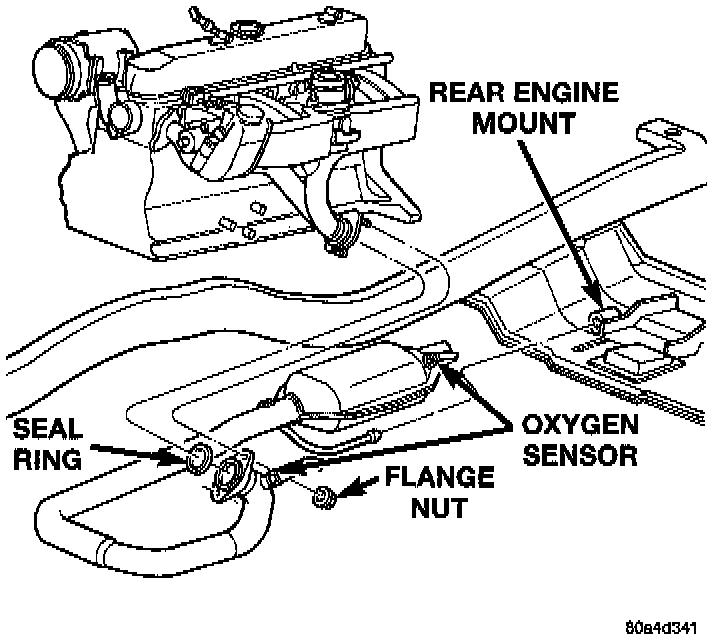

Fig. 4 Exhaust Pipe with Catalytic Converter:

2. Saturate the studs and nuts with heat valve lubricant. Allow 5 minutes for penetration (Fig. 4).

3. Remove the oxygen sensors from the exhaust pipe and the catalytic converter (Fig. 4).

4. Disconnect the exhaust pipe from the engine exhaust manifold. Discard the seal (Fig. 4).

5. Support the transmission and remove the rear crossmember.

6. Remove the clamp from the catalytic converter and muffler connection.

7. Heat the catalytic converter and muffler connection with an oxyacetylene torch until the metal becomes cherry red.

8. While the metal is still cherry red, twist the muffler assembly back and forth to separate it from the catalytic converter.
