Electronic Brake Control Module: Locations

Controller Antilock Brake (CAB):

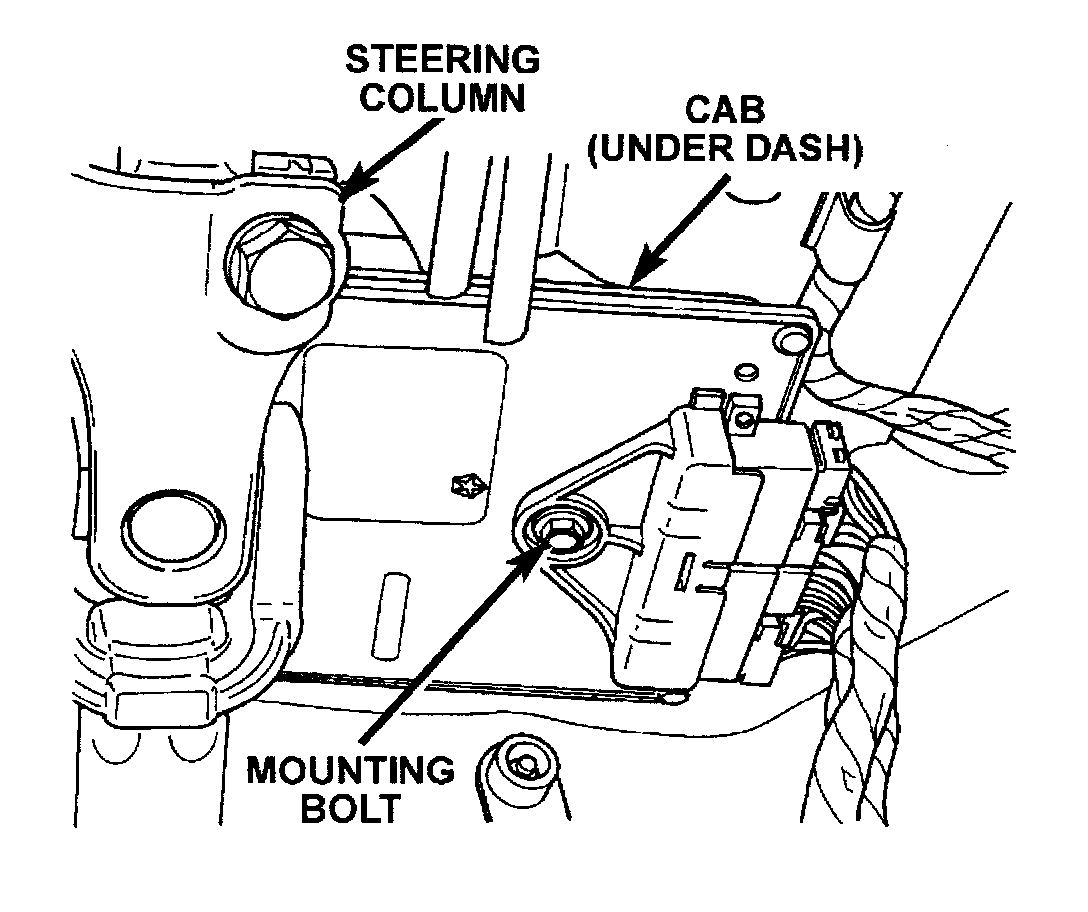

The CAB is located under the instrument panel to the right side of the steering column. It is mounted to a bracket with one bolt. The bracket is mounted to the front upper cowl panel.
