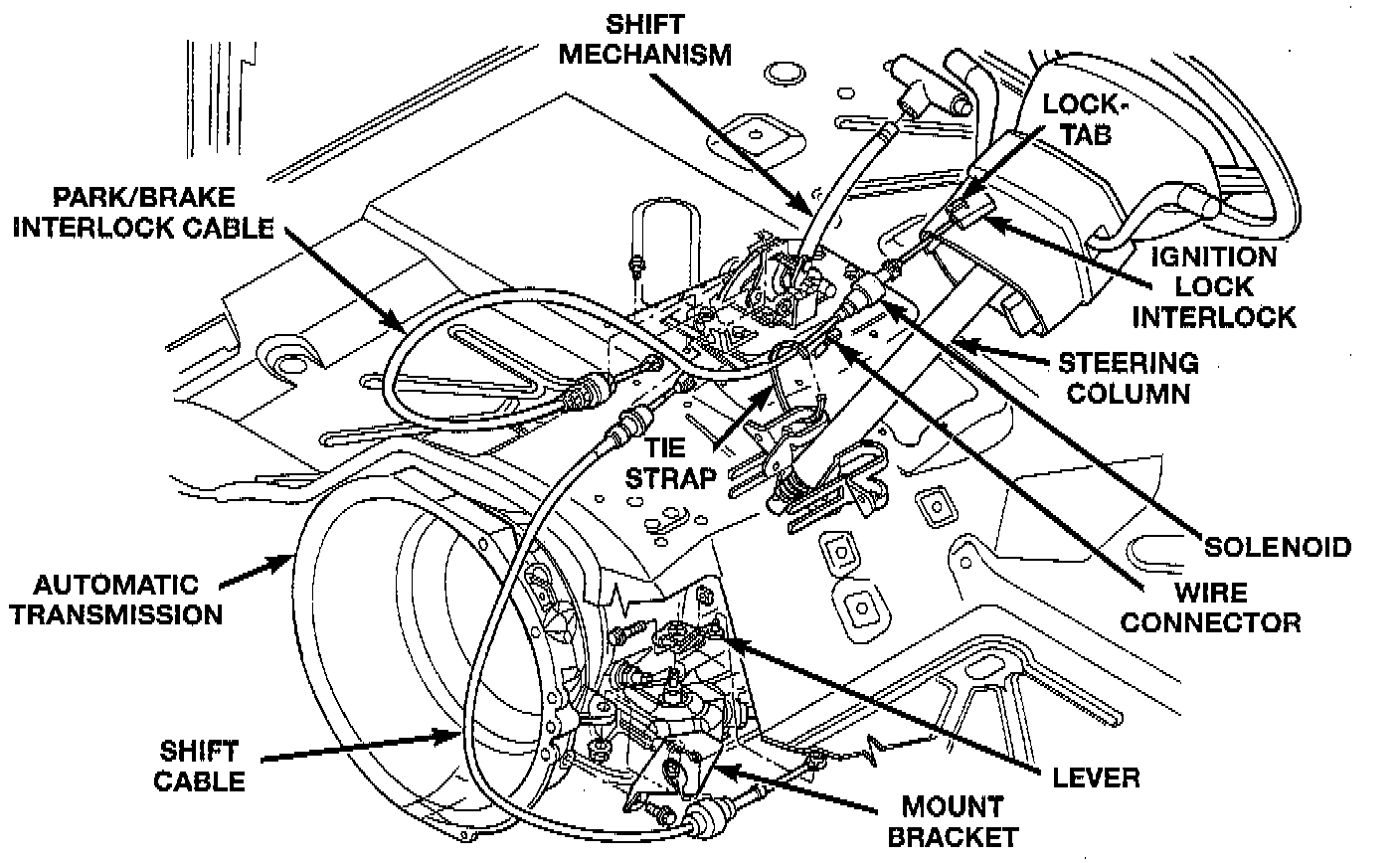

Shift Interlock: Service and Repair

REMOVAL
1. Remove lower steering column cover.
2. Remove lower steering column shroud.

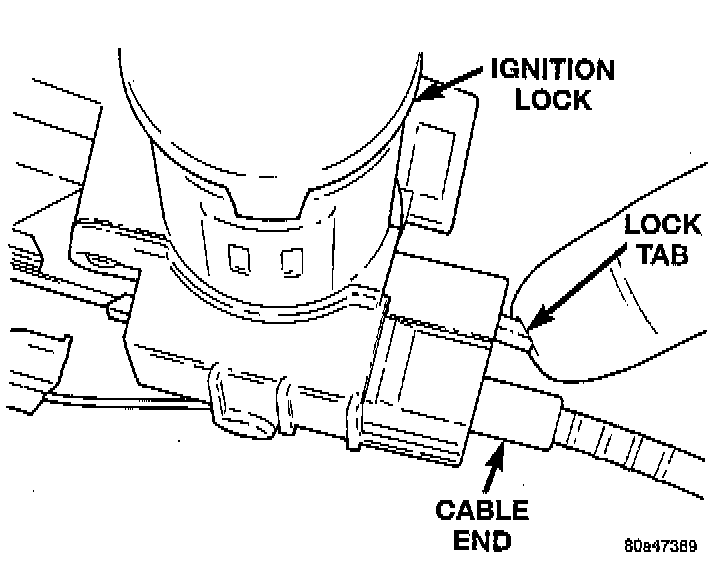

3. With the ignition removed or in the unlocked position, disengage lock tab holding cable end to steering column.
4. Pull cable end from steering column.
5. Remove the floor.





6. Disconnect the cable eyelet from the bellcrank.
7. Disconnect and remove the cable from the shift bracket.
8. Disengage wire connector from solenoid.
9. Disengage cable from tie strap at base of steering column.

INSTALLATION
1. Route replacement cable behind instrument panel and under floor console area to shift mechanism.
2. Insert cable end into opening in steering column hub under ignition lock. Push cable inward until lock tab engages.
3. Connect the cable end eyelet onto shifter bellcrank pin.
4. Place gear selector in PARK.
5. Push the spring-loaded cable adjuster forward and snap cable into bracket.
6. Push the cable adjuster lock clamp downward to lock it.
7. Install the floor console and related trim.
8. Test the park-lock cable operation.
9. Install tie strap to hold cable to base of steering column.
10. Install lower steering column shroud and ignition lock.
11. Install lower steering column cover.
