Instrument Cluster:
Fuse 9 (JB)
Fuse 16 (PDC)
G108
Instrument Cluster
Junction Block
Power Distribution Center
Instrument Cluster:
Check Gauges Warning Indicator
Diagnostic Splice Block
Fuel Gauge
Fuel Pump Module
Instrument Cluster
Low Fuel Warning Indicator
Powertrain Control Module
Speedometer
Tachometer
Transmission Control Module
Upshift Indicator
Vehicle Speed Sensor
Volt Meter
Instrument Cluster:
Check Engine Warning Indicator
Diagnostic Splice Block
Engine Coolant Temperature Gauge
Engine Coolant Temperature Sensor
Instrument Cluster
Oil Pressure Gauge
Oil Pressure Sensor
Powertrain Control Module
Transmission Control Module
Instrument Cluster:
ABS Indicator
Airbag Control Module
Airbag Warning Indicator
Controller Anti-Lock Brake Relay
Diagnostic Splice Block
G106
G302
Instrument Cluster
Low Washer Fluid Indicator
Low Washer Fluid Switch
Seat Belt Switch
Seat Belt Warning Indicator
Instrument Cluster:
Brake Pressure Switch
Brake Warning Indicator
Full Time 4wd Indicator
G101
G106
G107
G108
Ignition Switch
Instrument Cluster
Park Brake Switch
Part Time 4wd Indicator
Transfer Case Switch

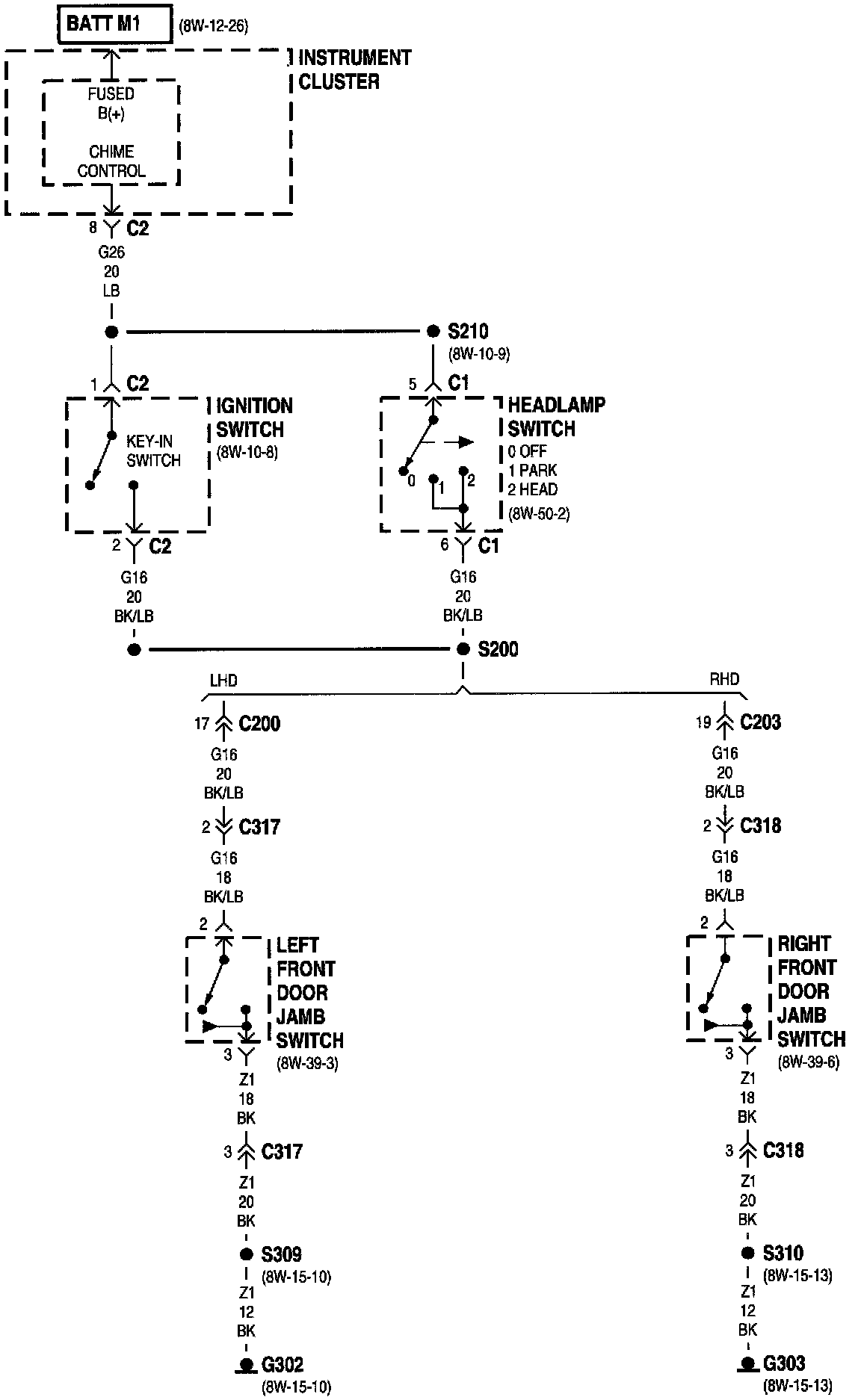

Instrument Cluster:
G302
G303
Headlamp Switch
Ignition Switch
Instrument Cluster
Left Front Door Jamb Switch
Right Front Door Jamb Switch
Instrument Cluster:
Diagnostic Splice Block
Fuse 12 (JB)
G107
Instrument Cluster
Junction Block
Overhead Module
Rear Window Defogger Relay
Rear Window Defogger Switch
VTSS Indicator
Instrument Cluster:
Beam Select Switch
G108
High Beam Indicator Lamp
Instrument Cluster
Left Turn Signal Indicator Lamp
Right Turn Signal Indicator Lamp
Turn Signal/Hazard Switch
Instrument Cluster:
Cluster Illumination Lamps
Fuse 6 (JB)
Headlamp Switch
Instrument Cluster
Junction Block
Odometer
Trip Reset Switch
Instrument Cluster:
Cruise Engaged Indicator
Diagnostic Splice Block
G304
Instrument Cluster
Liftgate Ajar Indicator
Liftgate Ajar Switch
Powertrain Control Module
NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
