RHD

Interior Lighting:

A/C Heater Control
Front Fog Lamp Switch
Fuse 6 (JB)
G107
G108
G302
Headlamp Switch
Instrument Cluster
Junction Block
PRNDL Illumination
Radio
Rear Window Defogger Switch
Rear Wiper/Washer Switch
Transfer Case Switch Illumination

Interior Lighting:

Fuse 16 (PDC)
G106
G1O7
G108
Glove Box Lamp Switch
Headlamp Delay Module
Headlamp Switch
Interior Lamp Switch
Junction Block
Left Courtesy Lamp
Power Distribution Center
Right Courtesy Lamp
Underhood Lamp

Interior Lighting:

Cargo Lamp/Switch
G302
G303
G304
Left Front Door Jamb Switch
Left Rear Door Jamb Switch
Liftgate Switch
Right Front Door Jamb Switch
Right Rear Door Jamb Switch

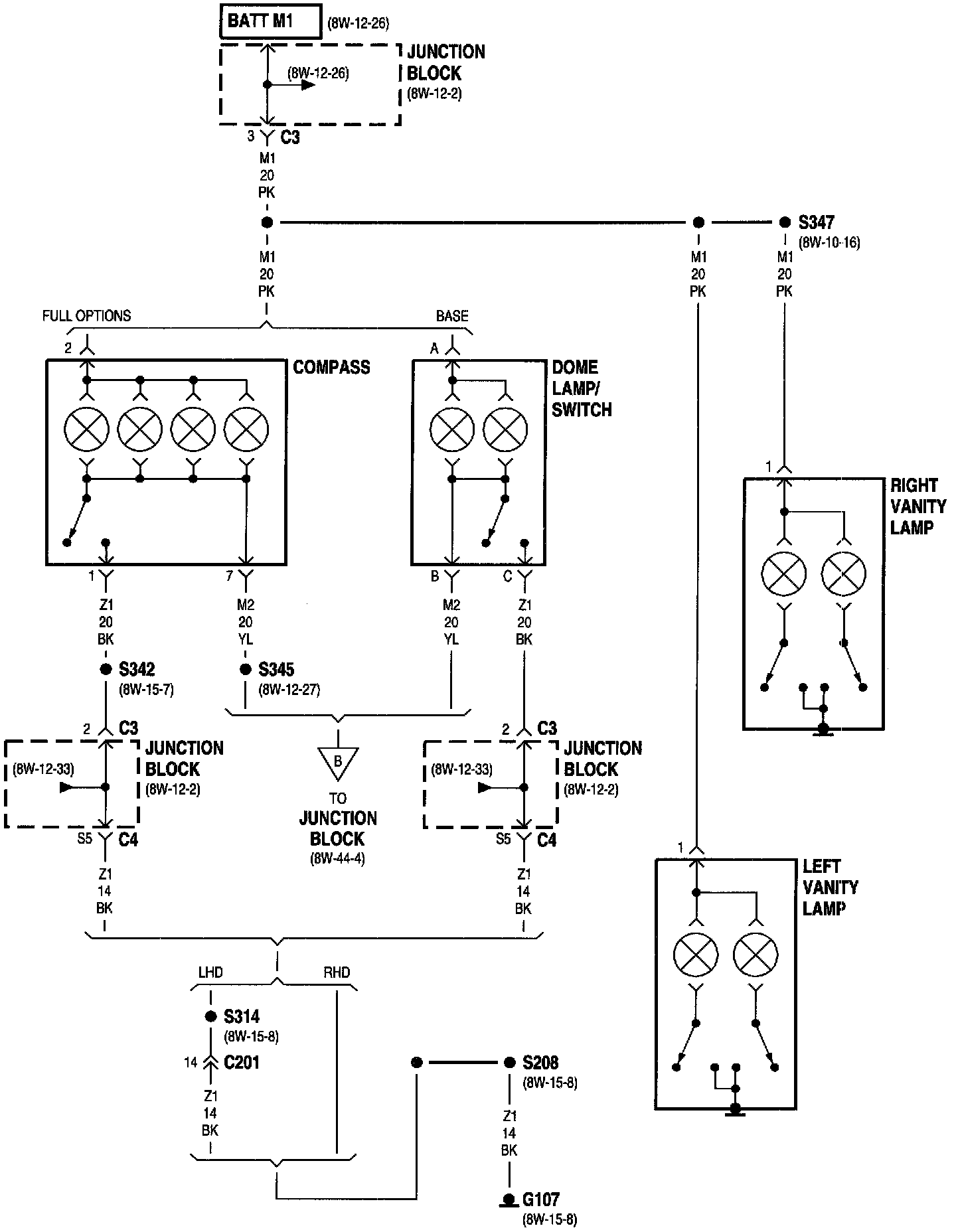

Interior Lighting:

Compass
Dome Lamp/Switch
G107
Junction Block
Left Vanity Lamp
Right Vanity Lamp



NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
