Left Hand Drive (LHD) Vehicle

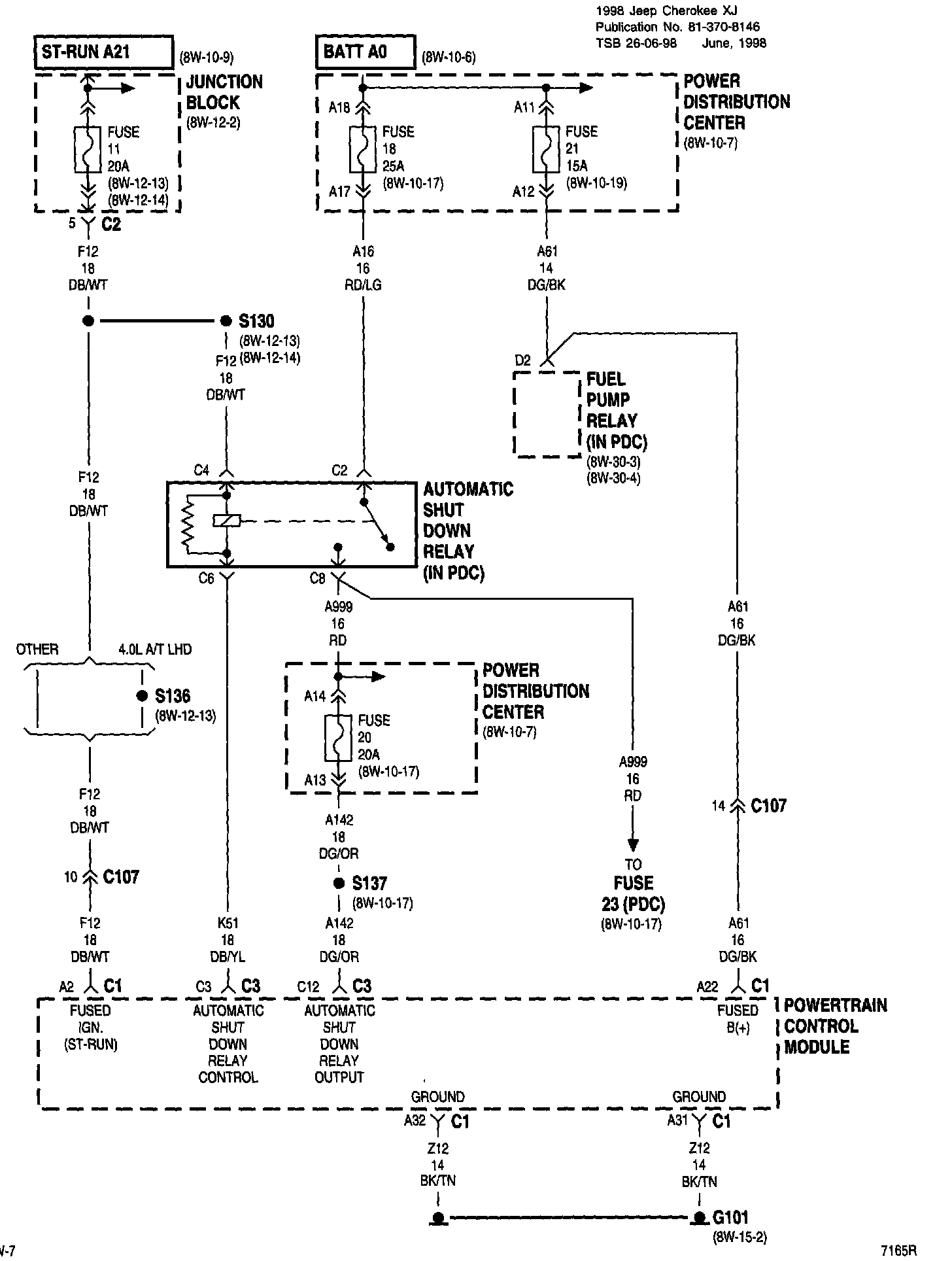

Fuel Ignition System:
Automatic Shut Down Relay
Fuel Pump Relay
Fuse 11 (JB)
Fuse 18 (PDC)
Fuse 20 (PDC)
Fuse 21 (PDC)
Fuse 23 (PDC)
G101
Junction Block
Power Distribution Center
Powertrain Control Module
Fuel Ignition System:
Fuel Pump Module
Fuel Pump Relay
Fuse 11 (JB)
Fuse 21 (PDC)
G302
Junction Block
Power Distribution Center
Powertrain Control Module
Fuel Ignition System:
Automatic Shut Down Relay
Camshaft Position Sensor
Crankshaft Position Sensor
Fuse 20 (PDC)
Fuse 23 (PDC)
Ignition Coil
Power Distribution Center
Powertrain Control Module
Fuel Ignition System:
Automatic Shut Down Relay
Fuel Injector No. 1
Fuel Injector No. 2
Fuel Injector No. 3
Fuel Injector No. 4
Fuel Injector No. 5
Fuel Injector No. 6
Fuse 20 (PDC)
Fuse 23 (PDC)
Power Distribution Center
Powertrain Control Module
Fuel Ignition System:
Engine Coolant Temperature Sensor
Intake Air Temperature Sensor
Powertrain Control Module
Throttle Position Sensor
Transmission Control Module
Fuel Ignition System:
Automatic Shut Down Relay
Downstream Heated Oxygen Sensor
Fuse 20 (PDC)
Fuse 23 (PDC)
G101
Power Distribution Center
Powertrain Control Module
Upstream Heated Oxygen Sensor
Fuel Ignition System:
Daytime Running Lamp Module
Manifold Absolute Pressure Sensor
Powertrain Control Module
Vehicle Speed Sensor
Fuel Ignition System:
Battery Temperature Sensor
Clockspring
Left Speed Control Switch
Oil Pressure Sensor
Powertrain Control Module
Right Speed Control Switch
Fuel Ignition System:
Engine Starter Motor Relay
G101
G106
Park/Neutral Position Switch
Power Distribution Center
Powertrain Control Module
Stop Lamp Switch
Transmission Range Switch
Vehicle Speed Control Servo
Fuel Ignition System:
Duty Cycle Evap/Purge Solenoid
Fuse 11 (JB)
Idle Air Control Motor
Junction Block
Fuel Ignition System:
A/C Compressor Clutch Relay
A/C Heater Control
A/C High Pressure Switch
A/C Low Pressure Switch
Cooling Fan Relay
Generator
Power Distribution Center
Powertrain Control Module
Solid State Relay
Fuel Ignition System:
Extended Idle Switch
Fuse 6 (JB)
Fuse 25 (JB)
G101
G107
Headlamp Switch
Hvac Unit
Junction Block
Power Steering Pressure Switch
Powertrain Control Module

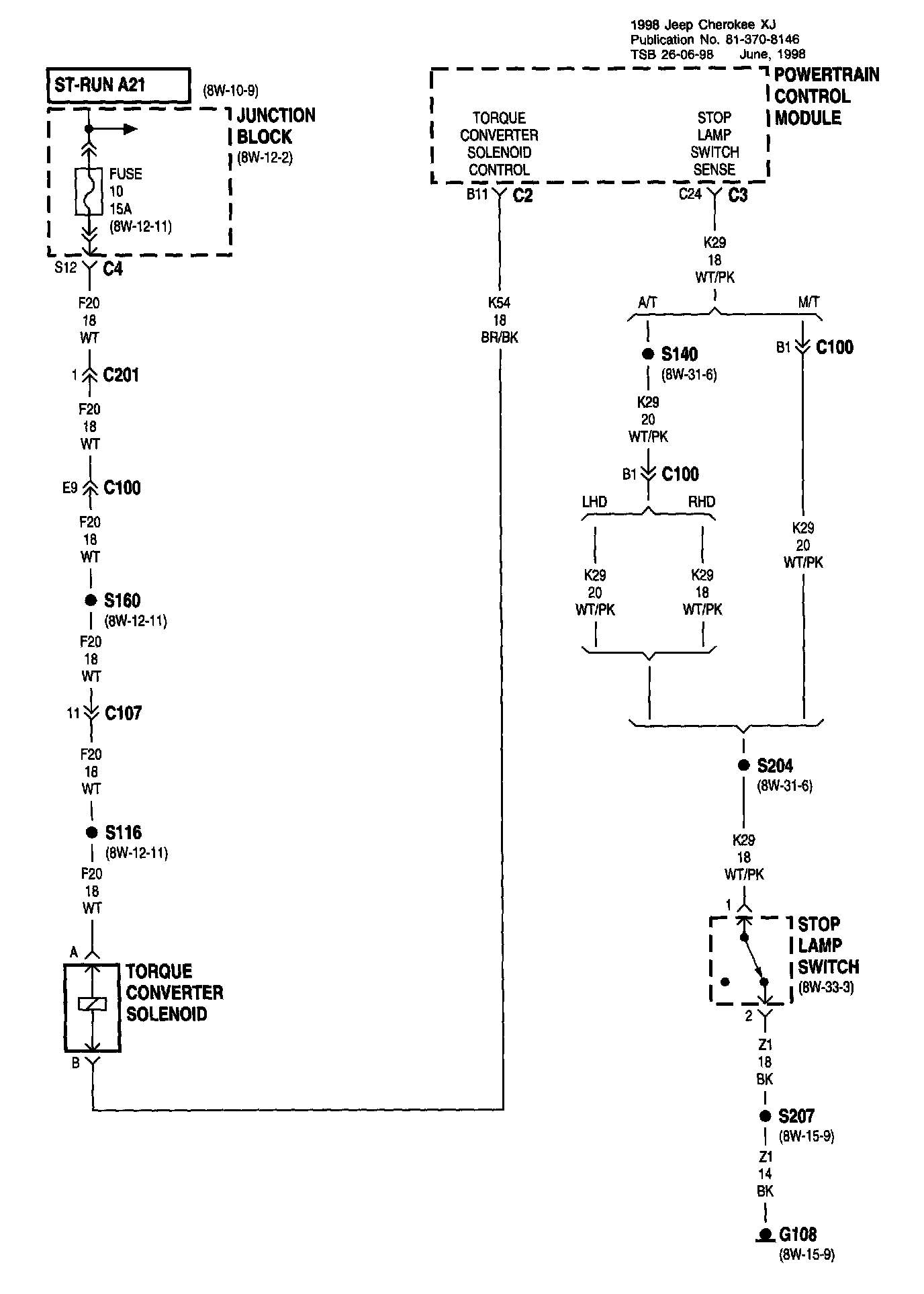

Fuel Ignition System:
G108
Powertrain Control Module
Stop Lamp Switch
Torque Converter Solenoid

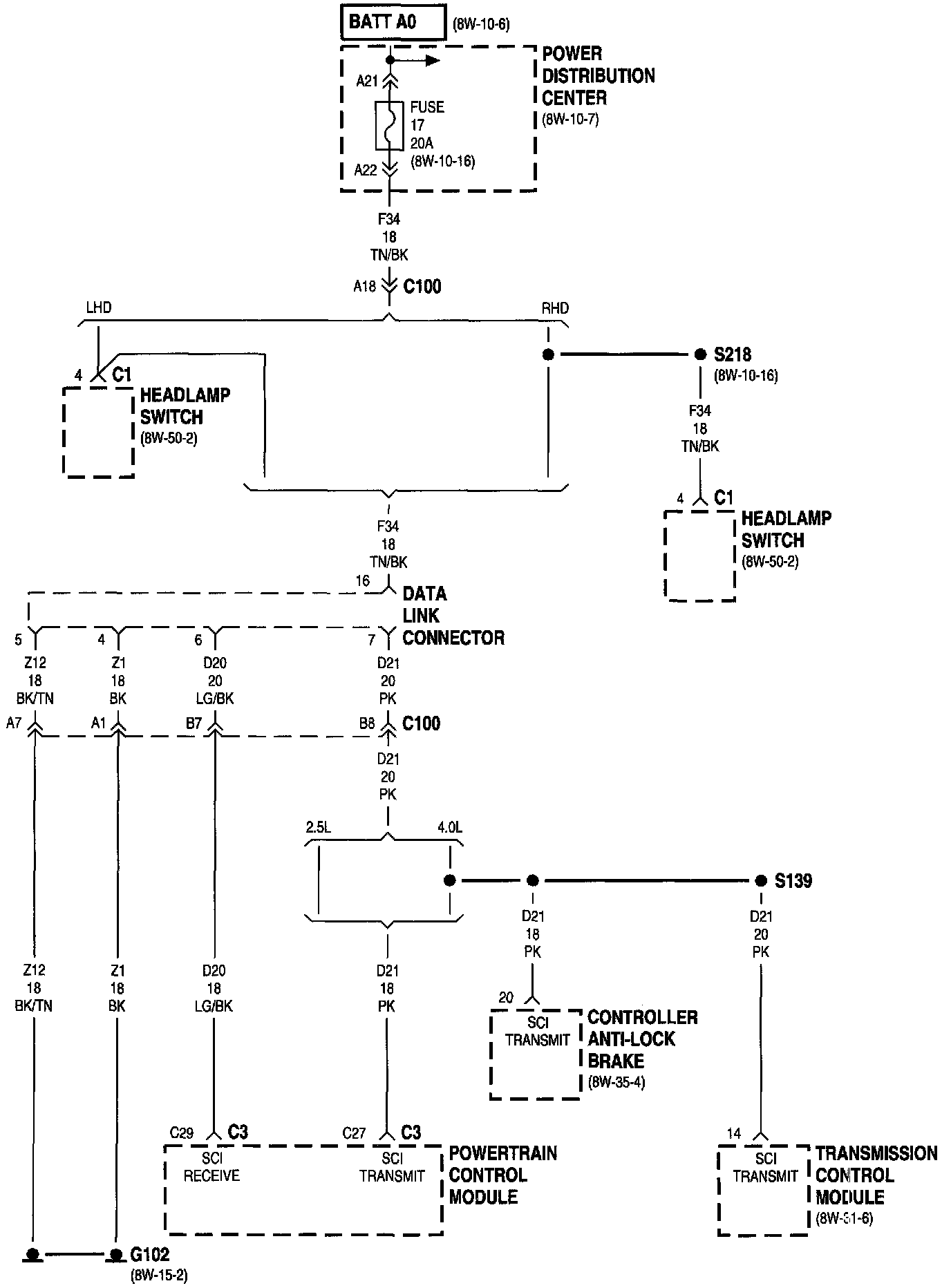

Fuel Ignition System:
Controller Anti-Lock Brake
Data Link Connector
Fuse 17 (PDC)
G102
Headlamp Switch
Power Distribution Center
Powertrain Control Module
Transmission Control Module
Fuel Ignition System:
Airbag Control Module
Compass
Data Link Connector
Diagnostic Splice Block
Instrument Cluster
Overhead Module
Powertrain Control Module
Transmission Control Module
NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
