Wiring Diagrams

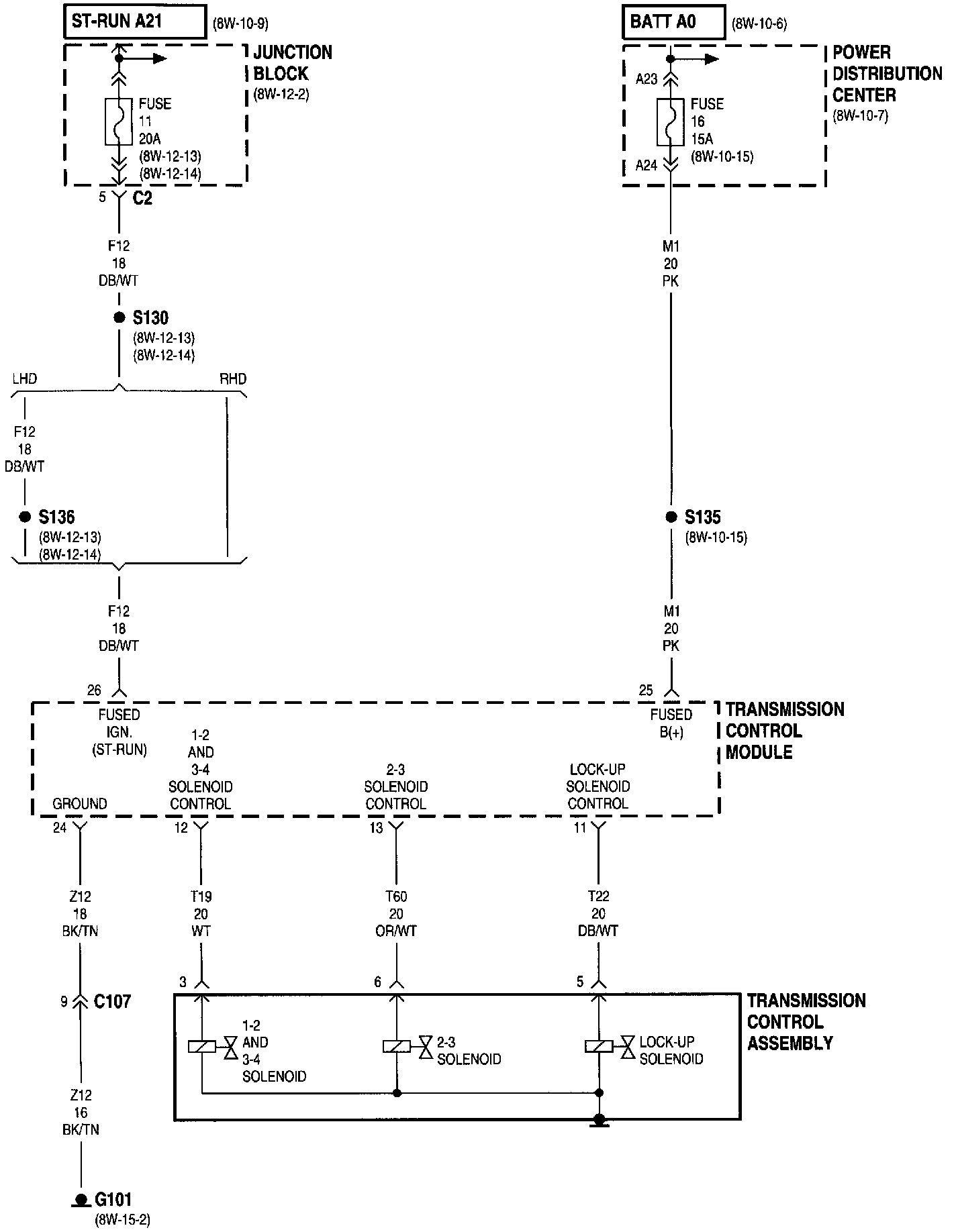

Transmission Control System:




Fuse 11 (JB)
Fuse 16 (PDC)
G101
Junction Block
Lock-Up Solenoid
Power Distribution Center
Transmission Control Assembly
Transmission Control Module

Transmission Control System:




Input Shaft Speed Sensor
Output Shaft Speed Sensor
Powertrain Control Module
Throttle Position Sensor
Transmission Control Assembly
Transmission Control Module

Transmission Control System:




Input Shaft Speed Sensor
Output Shaft Speed Sensor
Powertrain Control Module
Throttle Position Sensor
Transmission Control Assembly
Transmission Control Module

Transmission Control System:




Data Link Connector
Diagnostic Splice Block
Fuse 25 (JB)
G108
HVAC Unit
Junction Block
Powertrain Control Module
Shift Lock Solenoid
Stop Lamp Switch
Transmission Control Module


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
