Transfer Case

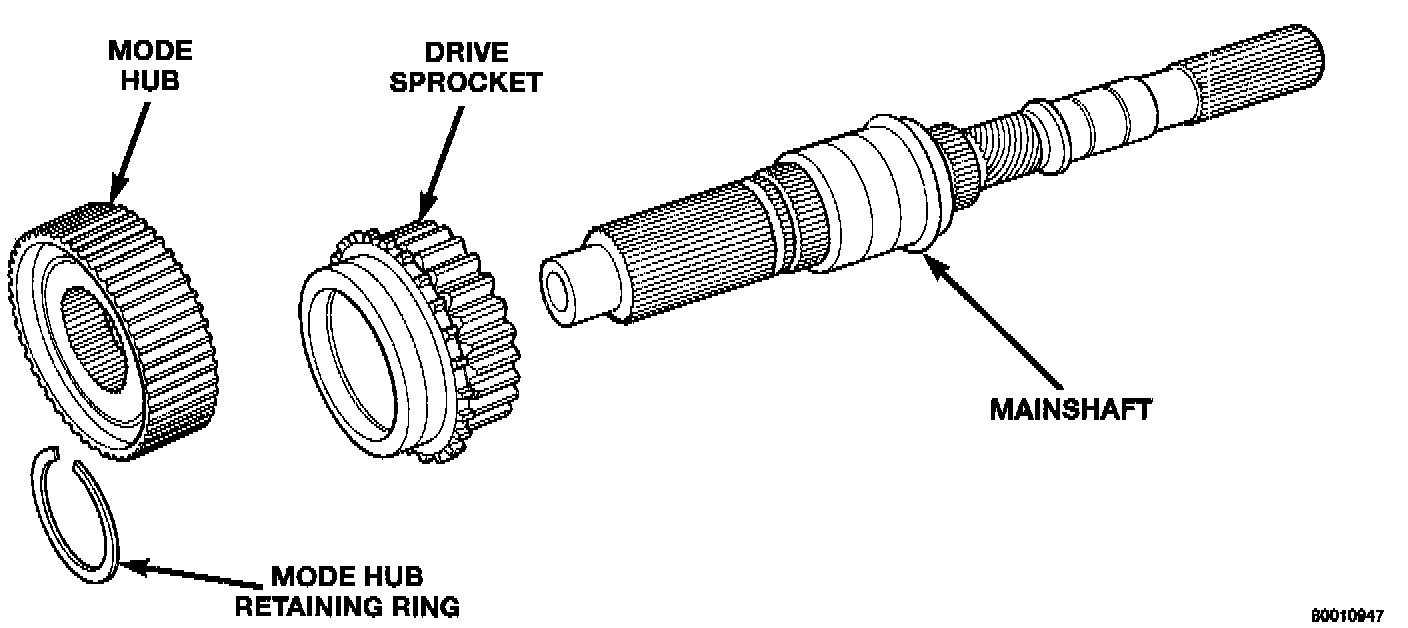

Mainshaft, Mode Hub, And Drive Sprocket:

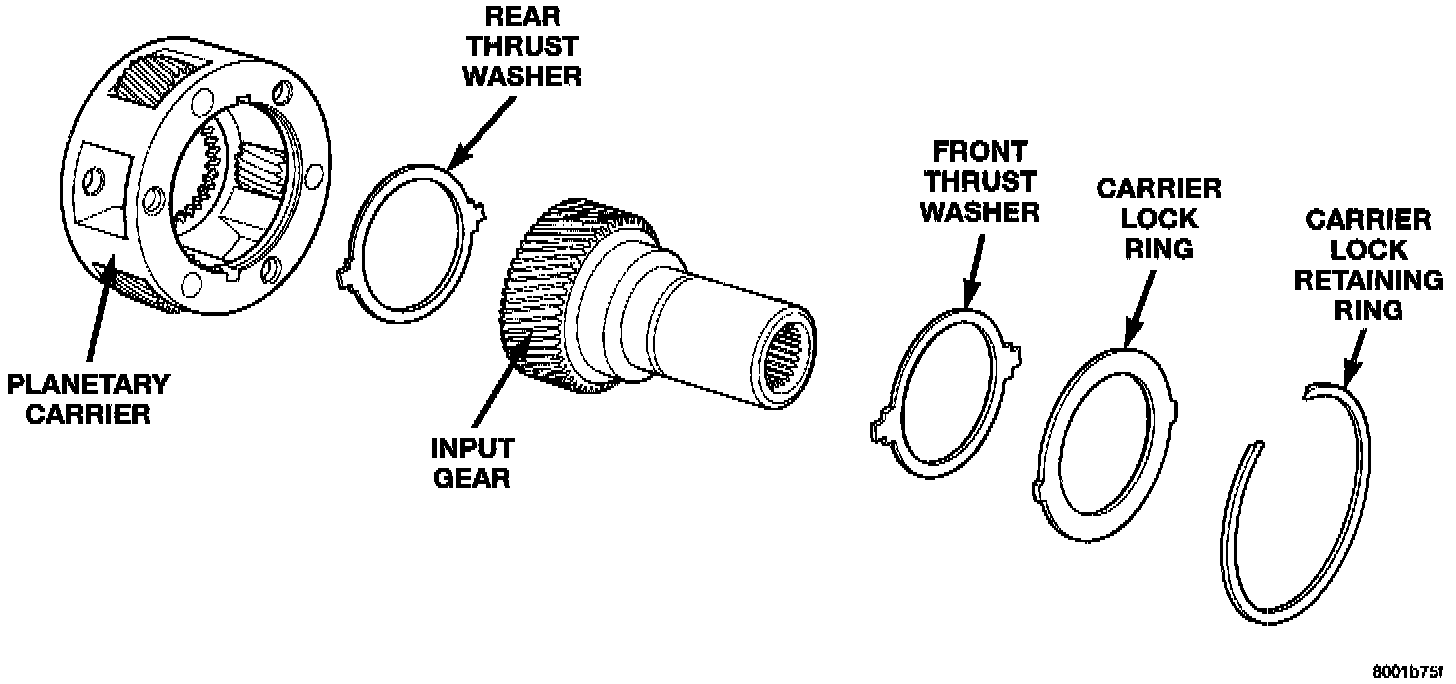

Input Gear And Carrier Components:

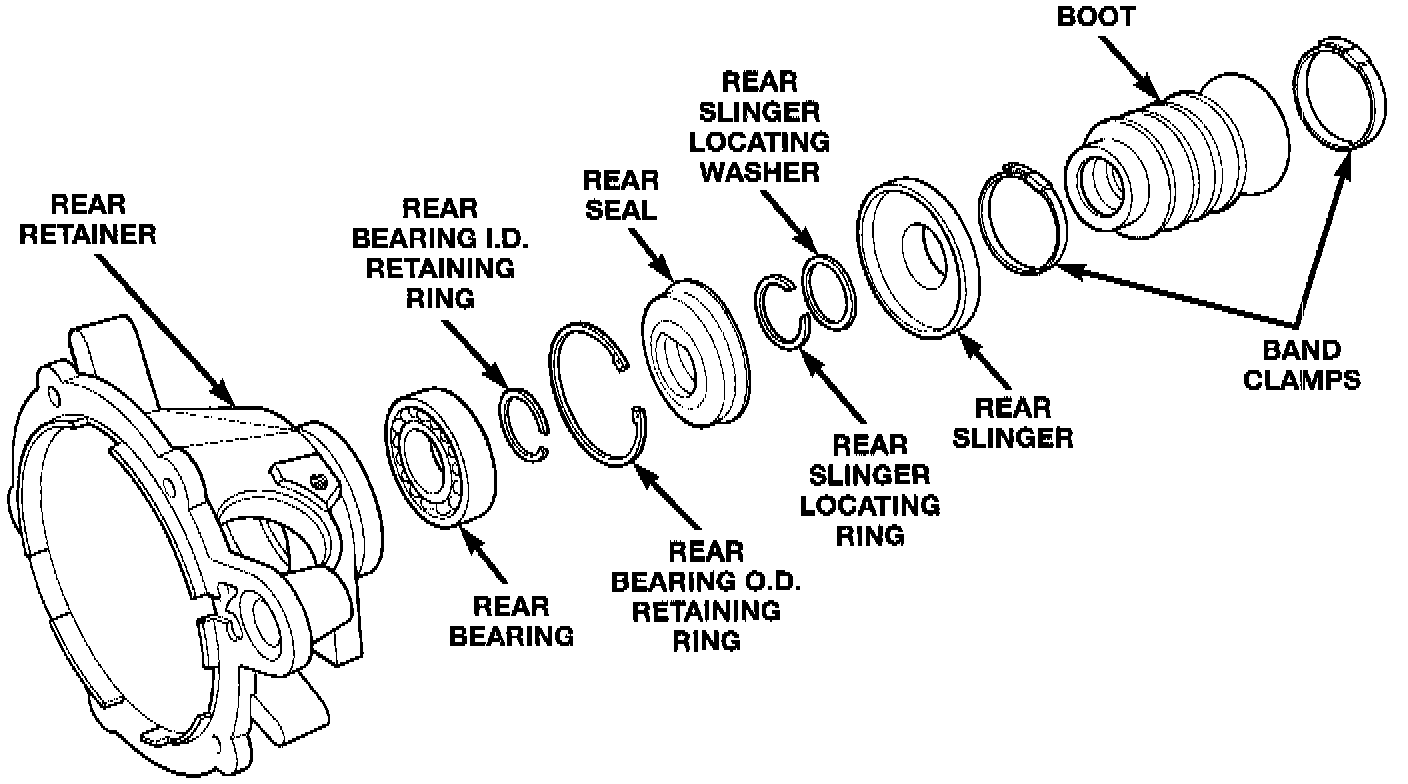

Rear Retainer Components:
