Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jeep
>>
1998
>>
Cherokee 4WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
NS-6B Repairing A "No Response" Condition
NS-6B Repairing A "No Response" Condition

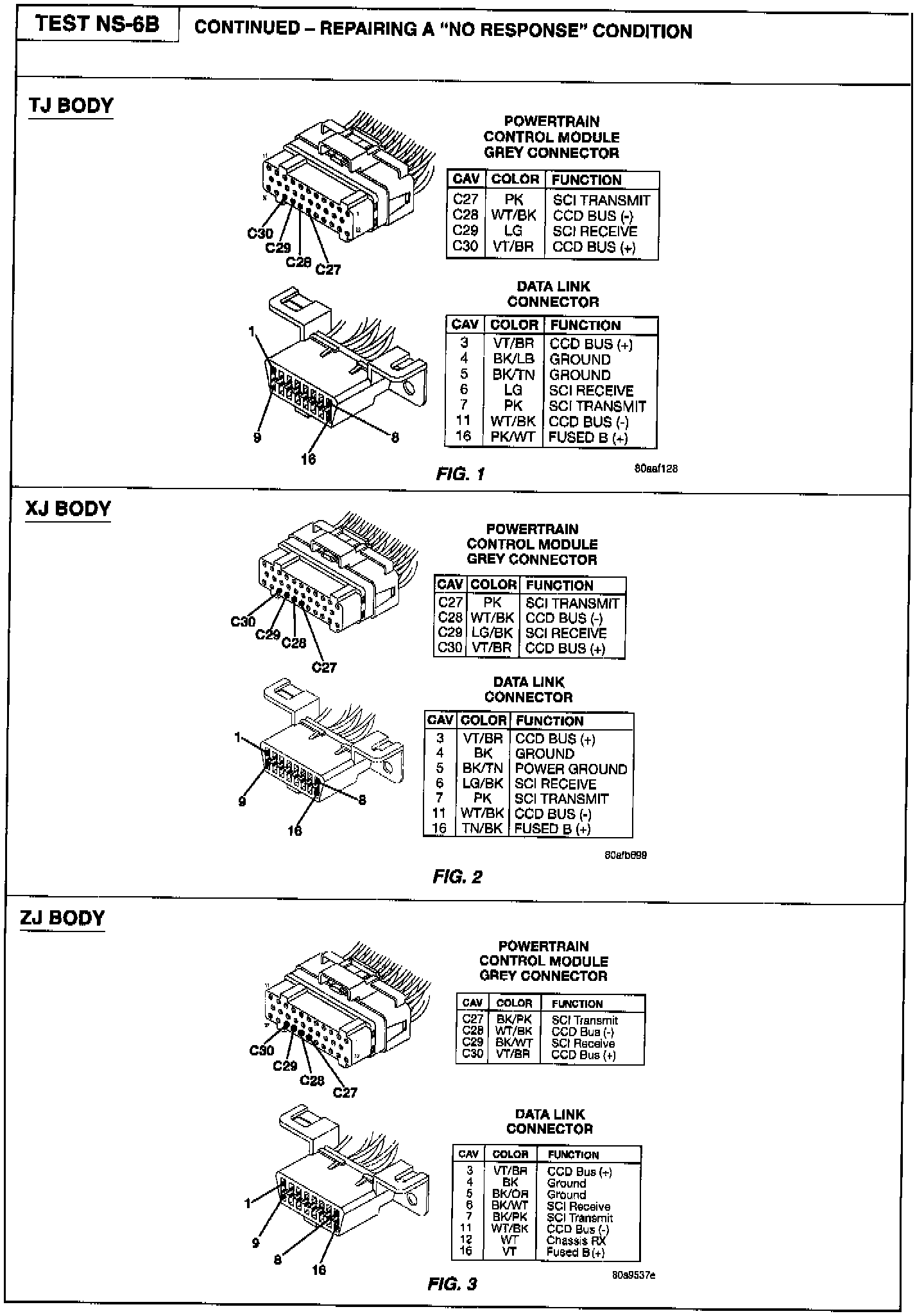

Related Image:

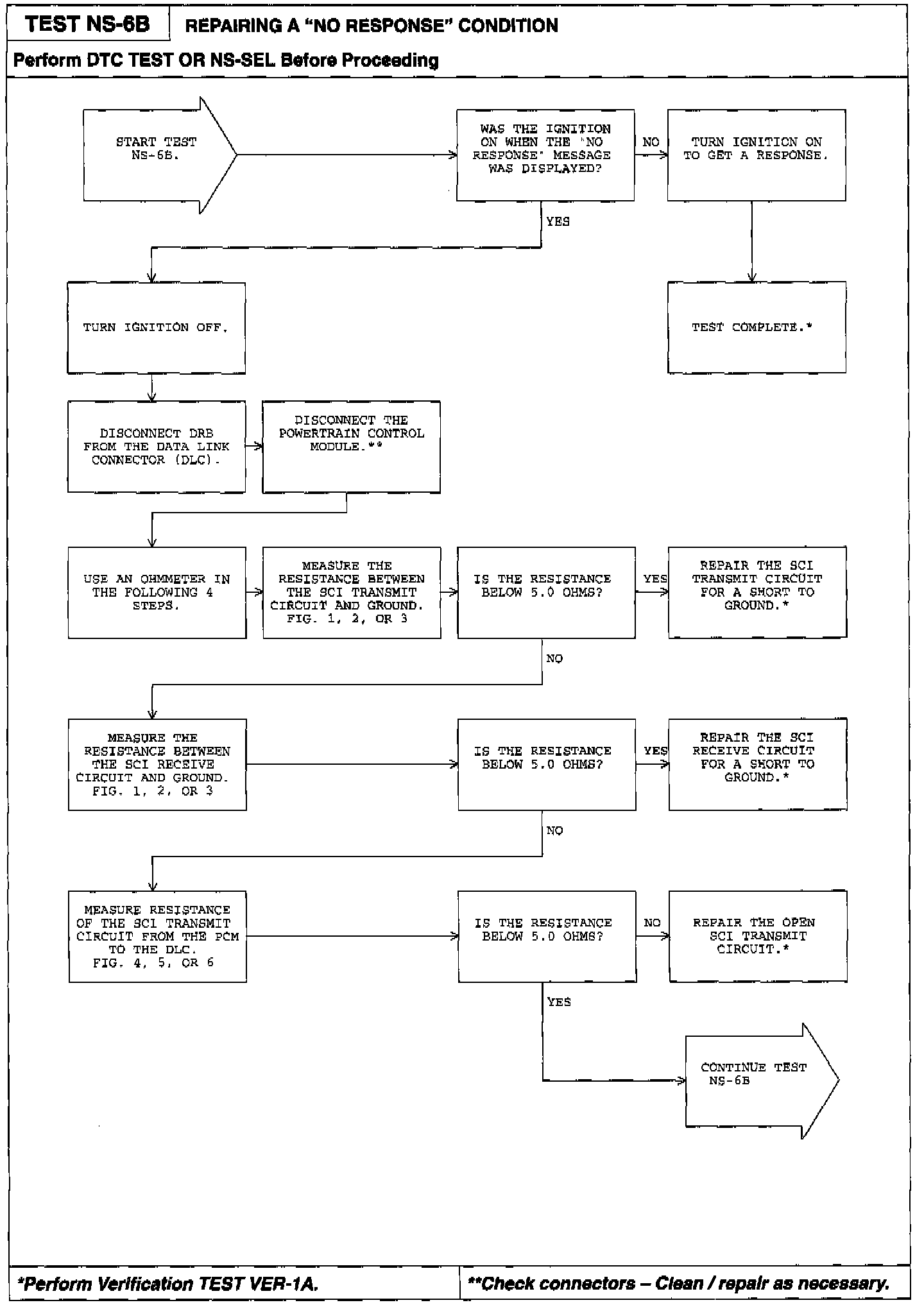

Diagnostic Chart:
Related Image:
Diagnostic Chart:
