NTC-25A Checking Fuel Level Sensor
NTC-25A Checking Fuel Level Sensor

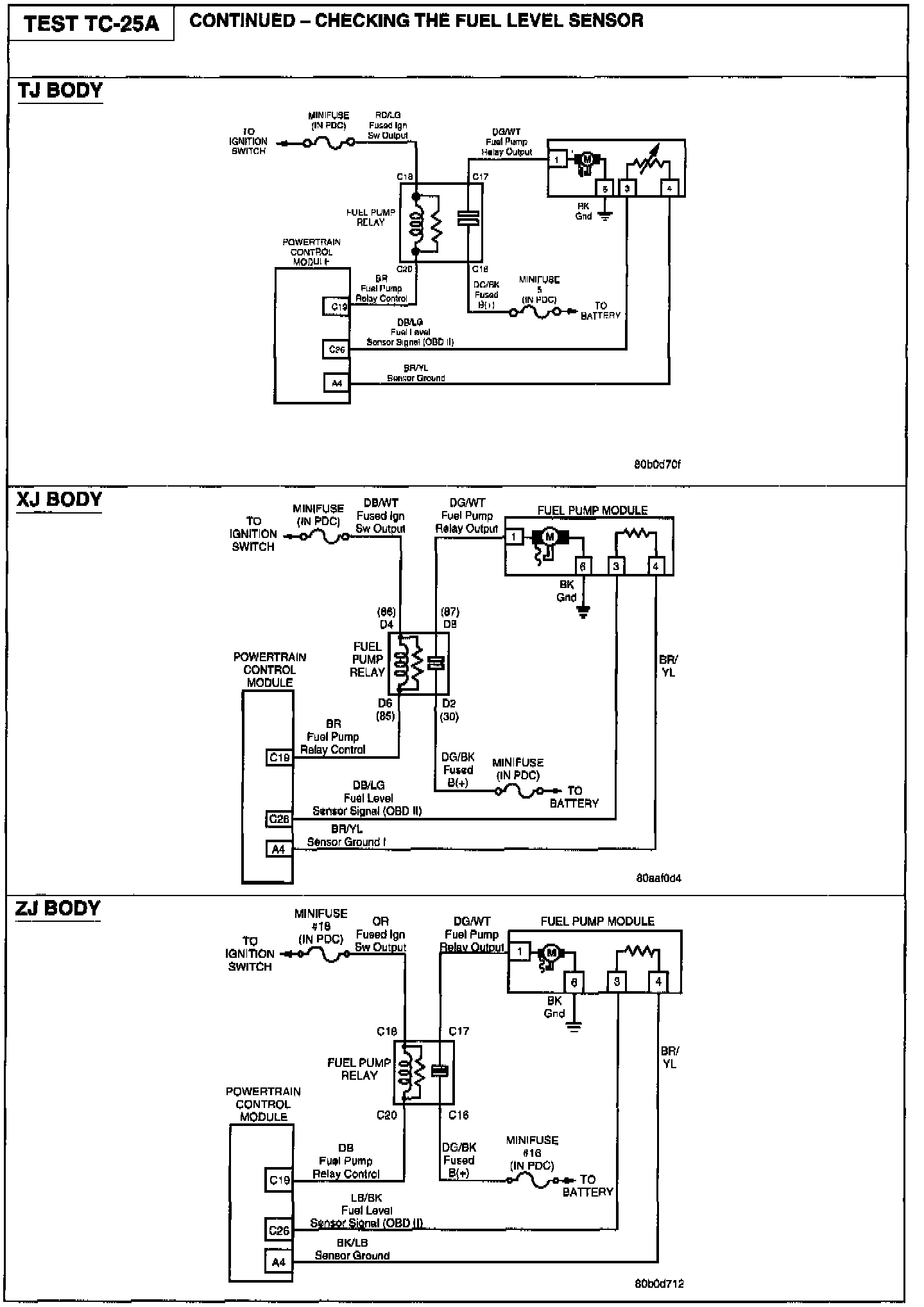

Related Image:

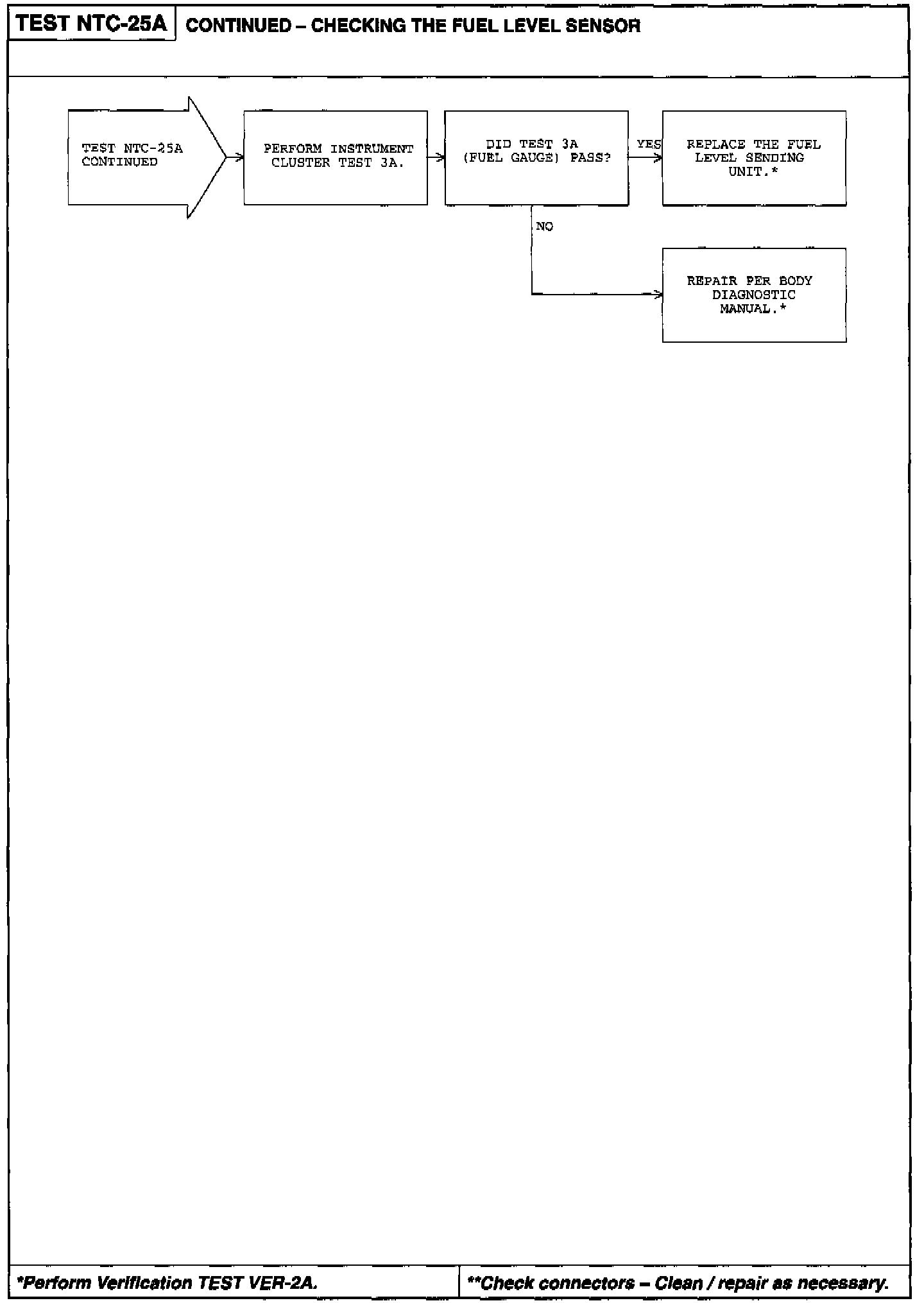

Diagnostic Chart:
Related Image:
Diagnostic Chart:
