Connector Views

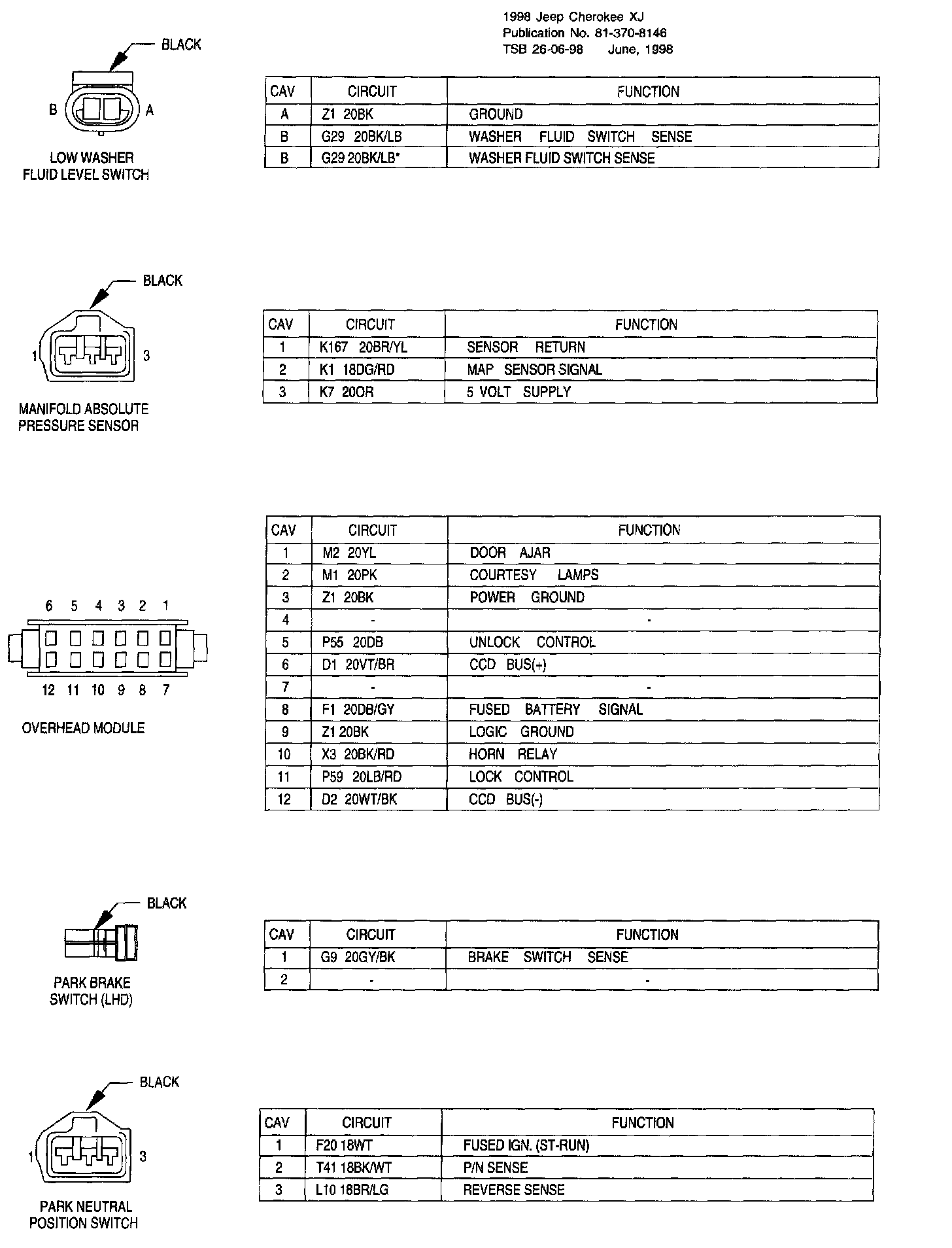

Connector Pin-Outs (Part 28 Of 67):





Connector Pin-Outs (Part 37 Of 67):





Connector Pin-Outs (Part 47 Of 67):





Connector Pin-Outs (Part 66 Of 67):





System Connector Views
